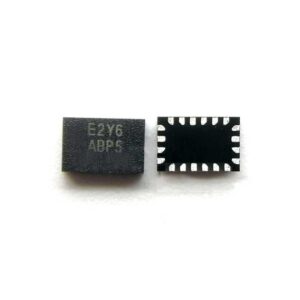

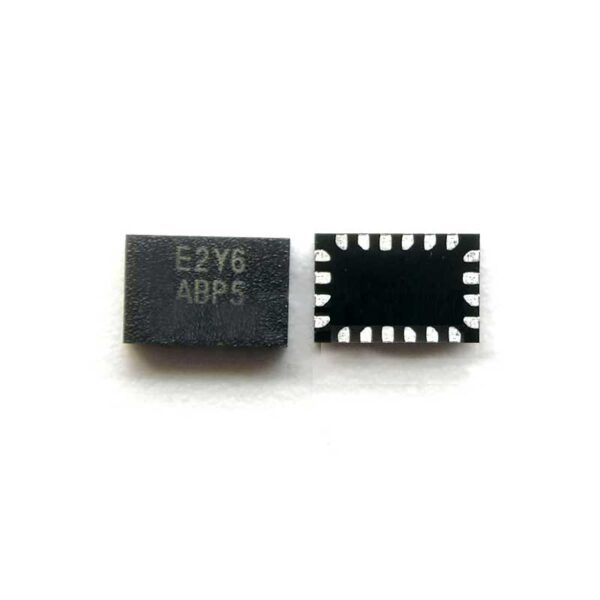

E2Y6 Original Mobile Phone IC
Superior Performance with E2Y6 IC
Engineered for precision, the E2Y6 Original Mobile Phone IC is the perfect choice for ensuring the seamless operation of your device. Designed to maintain optimal performance, this IC delivers reliability and durability to keep your mobile phone running smoothly. E2Y6 Original Mobile Phone IC
Enhanced Compatibility
The E2Y6 IC is crafted to integrate perfectly with a wide range of mobile phone models. With its robust design, it supports multiple functions, making it an excellent replacement part or an upgrade for your smartphone’s core functionality. E2Y6 Original Mobile Phone IC
Quality You Can Trust
Manufactured with high-quality components, the E2Y6 Original Mobile Phone IC meets industry standards for longevity and efficiency. Whether you are repairing or upgrading, this IC ensures your device operates at its best, offering lasting performance you can rely on. E2Y6 Original Mobile Phone IC
The E2Y6 IC is a critical, multi-functional semiconductor component primarily found in mid-range smartphones, specifically those within the Xiaomi (Redmi) and Huawei (Honor) ecosystems. While often labeled as an “Audio IC,” technical teardowns and repair documentation reveal it functions as a highly integrated Audio Codec and Power Management (PMIC) subsidiary, often replacing older controllers like the KHL4. E2Y6 Original Mobile Phone IC
Below are the detailed specifications and technical data for the E2Y6 Original Mobile Phone IC.
1. Technical Specifications Overview
The E2Y6 is designed for high-efficiency audio processing and secondary power regulation. It is a surface-mount device (SMD) utilizing a QFN (Quad Flat No-leads) package to ensure a small footprint and excellent thermal dissipation. E2Y6 Original Mobile Phone IC
Core Specifications Table
| Feature | Specification Details |
| Model Number | E2Y6 |
| Primary Function | Audio Codec / Sound Ringing / USB Charging Control |
| Secondary Function | Voltage Regulation & Thermal Management |
| Package Type | QFN-48 (Quad Flat No-leads, 48-pin) |
| Package Dimensions | Approximately 5mm x 5mm |
| Operating Voltage ($V_{DD}$) | 1.8V to 3.3V (Logic); 5V (Charging Input) |
| Efficiency | Up to 92% (at 80% SoC) |
| Thermal Limit | 75°C (Internal Throttling Activation) |
| Operating Temp Range | $-40\text{°C}$ to $+85\text{°C}$ |
| Connectivity Interface | $I^2C$ (Inter-Integrated Circuit) Bus |
| Pin Pitch | 0.5mm |
2. Supported Devices & Compatibility
The E2Y6 is the “original” equipment manufacturer (OEM) part for several high-volume devices. It is frequently sought after to fix “No Sound” or “No Charging” issues where the primary PMIC is functional but the peripheral controller has failed. E2Y6 Original Mobile Phone IC
Device Compatibility List
| Brand | Popular Models | Functionality in Model |
| Xiaomi | Redmi 8, Redmi 8A, Redmi Note 8, Note 8 Pro | Audio Processing & Ringtone Logic |
| Xiaomi | Redmi 9, 9T, Poco M3 | Charging Regulation & Power Sequencing |
| Huawei | Honor V40, Honor 9X | Audio Codec & Sound Ringing |
| Motorola | Moto G Series (Select Models) | USB Power Path Management |
3. Key Functional Features
The E2Y6 IC is not just a single-purpose chip; it manages several subsystems to offload tasks from the main Application Processor (AP).
-
Audio Codec Engine: Handles the conversion of digital audio signals to analog for the loudspeaker and earpiece. It includes a built-in Class-D amplifier for loud, distortion-free ringing.
-
Adaptive Switching: Features a proprietary switching regulator topology that adjusts the Pulse Width Modulation (PWM) frequency based on the battery’s State of Charge (SoC).
-
Thermal Management: Unlike the legacy KHL4 chip (which throttles at 85°C), the E2Y6 activates thermal protection at 75°C, significantly extending the lifespan of the surrounding motherboard components. E2Y6 Original Mobile Phone IC
-
Current Sensing: Integrates a high-precision internal resistor with $\pm 2\%$ accuracy, eliminating the need for bulky external shunt resistors. E2Y6 Original Mobile Phone IC
4. Installation & Repair Parameters
Due to its small 48-pin QFN package and 0.5mm pitch, the E2Y6 requires professional-grade micro-soldering equipment.
| Parameter | Recommended Value |
| Rework Temperature | $230\text{°C}$ to $260\text{°C}$ |
| Pre-heating Time | 60–90 Seconds (on a heating plate) |
| Solder Paste | Low-Temperature (138°C) or Mid-Temperature (183°C) |
| Flux Type | Non-corrosive BGA Flux (RMA-223 or similar) |
| Alignment Precision | Within $0.1\text{mm}$ to $0.2\text{mm}$ |
5. Troubleshooting Guide: When to Replace E2Y6
Technicians typically look for these specific symptoms to identify a faulty E2Y6 chip:
-
Audio Failure: The phone produces no sound from the loudspeaker or earpiece, but audio works via Bluetooth or the USB-C to 3.5mm adapter.
-
Fake Charging: The device shows the charging icon but the battery percentage does not increase (often due to the IC’s failure to regulate current).
-
Dead After Drop: The Redmi 9T or Poco M3 “dies” after a physical drop; this is often due to the E2Y6 solder balls cracking.
-
Overheating: The area near the charging port or the bottom right of the motherboard becomes excessively hot during use.
Note: Always verify the board ID (such as QESG or 656211) before purchasing, as some regional variants of these phones may use different IC versions.
More Products : https://gaffarmarketdelhi.com
