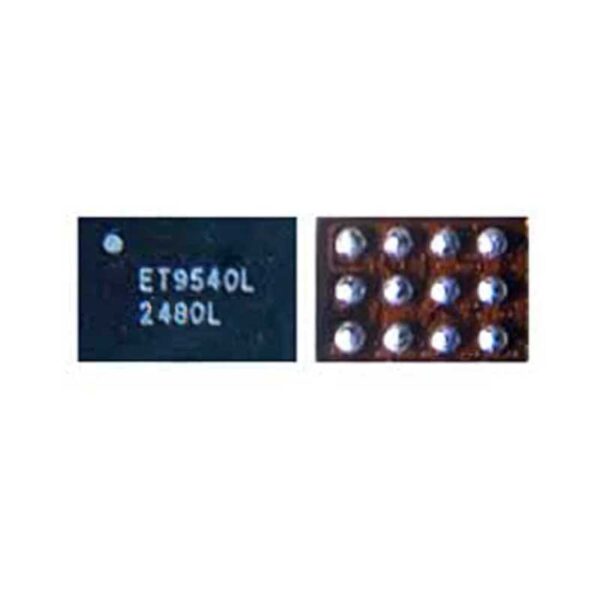

ET9540L Mobile Phone IC
Reliable Performance and Efficiency
The ET9540L Mobile Phone IC is engineered to deliver unmatched reliability and efficiency for next-generation mobile devices. Designed with cutting-edge technology, this integrated circuit ensures robust performance, making it an essential component for modern mobile solutions. ET9540L Mobile Phone IC
Compact Design for Versatile Applications
With its compact form factor, the ET9540L seamlessly integrates into a variety of device configurations. Its versatility allows compatibility with different mobile platforms, ensuring optimal operation without compromising on space or design aesthetics.
Enhance Device Functionality with Advanced Features
Equipped with advanced features, the ET9540L enhances the overall functionality and reliability of your device. Whether for enhancing connectivity, power management, or system efficiency, this IC is built to meet diverse engineering needs efficiently. ET9540L Mobile Phone IC
The ET9540L is a high-performance, integrated charging and power management chip (IC) specifically designed for modern mobile devices, including popular smartphones from brands like Xiaomi, Redmi, and Samsung. ET9540L Mobile Phone IC
In the world of mobile hardware, this IC is a “quiet workhorse.” It is responsible for regulating the flow of electricity from your USB charger to the battery, ensuring that the device charges safely and efficiently without overheating. ET9540L Mobile Phone IC
Technical Specifications Table
The following table provides a breakdown of the ET9540L’s technical parameters.
| Specification Parameter | Technical Detail |
| Model Number | ET9540L (often interchanged with ET9540) |
| Manufacturer | ETEK (E-Tek Semiconductor) |
| Primary Function | USB Charging / Power Management IC |
| Compatible Brands | Xiaomi, Redmi, Samsung, various Android Tablet PCs |
| Input Voltage Range | $1.5\text{V}$ to $5.5\text{V}$ (Typical USB operation) |
| Maximum Output Voltage | Approximately $1.8\text{V}$ (Varies by output rail) |
| Dissipation Power | $\approx 0.5\text{W}$ |
| Package Type | BGA (Ball Grid Array) – typically 36-pin |
| Operating Temp. | $-40\text{°C}$ to $+85\text{°C}$ |
| Application Areas | Smartphones, Tablets, Portable Audio, Internet Devices |
| Mounting Type | Surface Mount (SMD / SMT) |
| Protection Features | Overvoltage (OVP), Overcurrent (OCP), Thermal Protection |
Key Features and Functional Capabilities
1. Advanced Power Regulation
The ET9540L manages the conversion of electrical energy. When you plug in a $5\text{V}$ charger, the phone’s internal components (like the CPU) cannot handle that high of a voltage directly. The ET9540L steps down and stabilizes this power to ensure the battery receives a steady current and the logic board receives the precise voltage it needs to operate. ET9540L Mobile Phone IC
2. Battery Protection Mechanisms
One of its most critical roles is acting as a “gatekeeper.“
-
Overcharge Protection: It monitors the battery voltage and stops the charging process once the battery reaches its capacity. ET9540L Mobile Phone IC
-
Thermal Management: If the chip detects that the device is getting too hot during a fast-charge cycle, it will throttle the current to prevent damage to the lithium-ion cells. ET9540L Mobile Phone IC
3. Broad Device Compatibility
You will most commonly find the ET9540L in mid-range and budget-friendly powerhouses. Specifically, it is the standard replacement part for:
-
Xiaomi: Mi 6X, Mi A2, CC9E.
-
Redmi: Note 7, Note 8 Pro, Redmi K30, Redmi 7. ET9540L Mobile Phone IC
-
Samsung: Various budget M-series and A-series models.
Common Fault Symptoms (Troubleshooting)
When the ET9540L fails, it usually leads to specific “Power/Charging” issues. Technicians look for this IC when a phone exhibits the following:
-
No Charging: The phone doesn’t react at all when the cable is plugged in.
-
Fake Charging: The lightning bolt icon appears, but the battery percentage never increases (or actually decreases).
-
Rapid Battery Drain: A short circuit inside the IC can cause it to consume power even when the phone is idle.
-
Overheating during Charge: The area of the motherboard near the charging port or CPU becomes excessively hot to the touch.
Installation and Repair Guidelines
Because the ET9540L is a BGA (Ball Grid Array) chip, it cannot be replaced with a standard soldering iron.
Warning: Repairing this component requires professional-grade tools, including a Hot Air Rework Station, high-quality BGA Flux, and potentially a stencil for reballing if you are using a salvaged chip.
-
Preparation: Clean the motherboard area with Isopropyl Alcohol (IPA).
-
Removal: Apply heat at approximately $350\text{°C}$ to $380\text{°C}$ until the solder liquifies, then gently lift the IC.
-
Cleaning: Use a soldering wick to remove old solder from the pads.
-
Placement: Align the new ET9540L according to the “Pin 1” marker (usually a small dot or arrow on the corner of the chip).
-
Soldering: Apply heat again until the chip “settles” into place via surface tension.
Summary for Technicians
The ET9540L is a reliable, high-efficiency solution for USB power management. While it is durable, it is susceptible to damage from low-quality third-party chargers or liquid ingress (water damage) near the USB port. Replacing it with an original ETEK chip is essential to maintain the fast-charging standards and battery longevity of the device.
