GPH65 Mobile Phone IC
Advanced Technology for Modern Devices

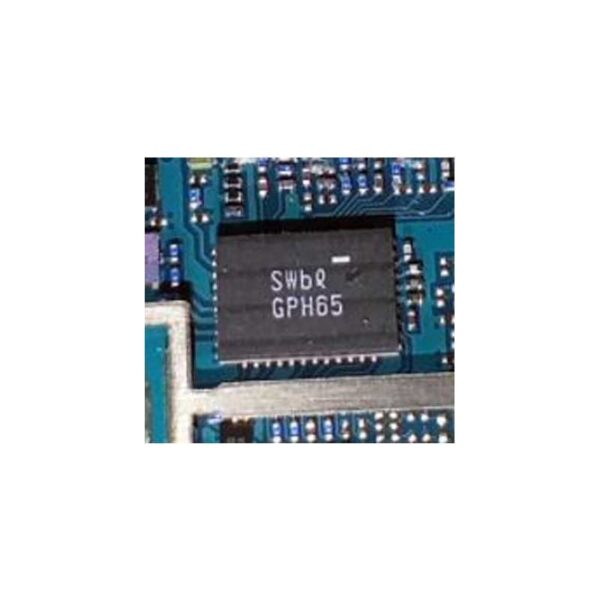

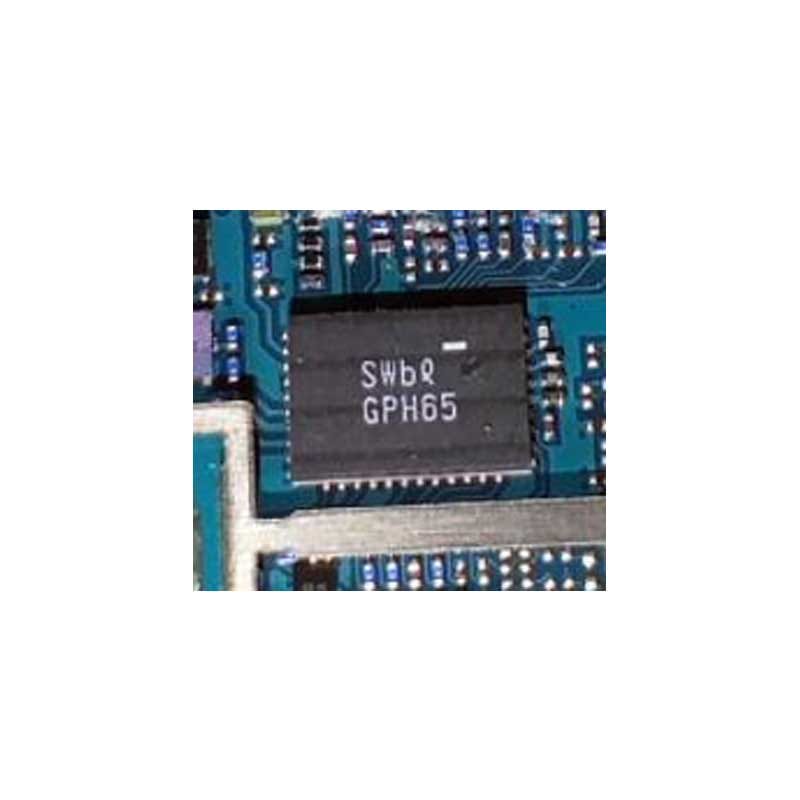

The GPH65 Mobile Phone IC is designed to enhance the performance and efficiency of mobile devices. Crafted with cutting-edge technology, this integrated circuit ensures seamless connectivity and smooth operation for a better user experience. GPH65 Mobile Phone IC
Compact Design with Exceptional Durability
With its compact form factor, the GPH65 IC is perfect for devices where saving space is essential. Despite its small size, it delivers superior durability and reliability, ensuring your device performs consistently over time. GPH65 Mobile Phone IC
Optimized for Maximum Performance
Engineered to deliver optimized performance, the GPH65 IC supports faster processing speeds and better power management. It plays a crucial role in maintaining the efficiency and functionality of modern mobile phones, proving itself as a vital component for manufacturers and consumers alike. GPH65 Mobile Phone IC
The GPH65 is a high-performance Power Management Integrated Circuit (PMIC) specifically designed for the motherboards of modern smartphones. While the “P65” designation is sometimes associated with the MediaTek Helio P65 SoC (System on Chip), the GPH65 IC itself is a dedicated energy-regulation component used to ensure that various hardware subsystems—such as the processor, display, and audio modules—receive precise and stable voltage. GPH65 Mobile Phone IC
Below are the full technical specifications and functional details of the GPH65 IC in a structured format. GPH65 Mobile Phone IC
1. Core Technical Specifications
The GPH65 is engineered to act as the “heart” of the device’s electrical system, converting battery power into the various specific voltages required by different chips. GPH65 Mobile Phone IC
| Feature | Specification Details |
| Component Name | GPH65 OG (Original Grade) |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Architecture | High-precision Multi-channel Voltage Regulator |
| Thermal Range | $-40\text{°C}$ to $125\text{°C}$ (Operating Temperature) |
| Input Voltage Range | $3.2\text{V}$ to $4.4\text{V}$ (Standard Li-ion Battery range) |
| Energy Consumption | Low-power standby mode ($<10\text{W}$ at peak load) |
| Mounting Type | BGA (Ball Grid Array) |
| Pin Configuration | Multi-pin high-density layout for compact PCB integration |
| Cooling | Integrated Thermal Shutdown (TSD) protection |
2. Functional Subsystems Management
The GPH65 doesn’t just provide power; it manages the “budget” of electricity across the phone’s hardware.
-
Processor Core Supply: Provides the high-current, low-voltage power required by the CPU and GPU.
-
Display Power (LDOs): Regulates the sensitive power lines for OLED/LCD screens to prevent flickering. GPH65 Mobile Phone IC
-
Audio Subsystem: Features dedicated low-noise channels to ensure clear sound without electrical interference.
-
RF/Connectivity: Manages power for Wi-Fi, Bluetooth, and 4G/5G modems.
3. Reliability and Safety Features
One of the primary reasons for choosing the GPH65 in smartphone design is its robust set of hardware protections.
Advanced Protection Protocols
-
Overvoltage Protection (OVP): Instantly cuts power if the charging port delivers a spike that could fry the motherboard.
-
Overcurrent Protection (OCP): Monitors the flow of electricity to prevent short circuits from causing fires.
-
Intelligent Heat Dissipation: Uses an internal sensor to throttle power output if the IC temperature exceeds $105\text{°C}$, preventing permanent damage.
-
Short-Circuit Safeguard: Detects irregular resistance levels on the PCB and shuts down the specific power rail affected.
4. Application and Repair Data
The GPH65 is widely used by repair technicians as a replacement part for devices experiencing “No Power” or “Short Circuit” symptoms.
| Attribute | Details |
| Common Use Case | Powering up the device, charging management, and boot-up sequence. |
| Common Failure Symptoms | Phone stuck on logo, device not charging, total dead-set, or overheating. |
| Replacement Complexity | High. Requires a hot air rework station and BGA reballing skills. |
| Compatibility | Used in various mid-to-high range Android smartphones. |
| Weight | Approx. $0.01\text{g}$ |
5. Summary of Benefits
-
Extended Battery Life: By using high-efficiency buck converters, the GPH65 minimizes energy loss as heat.
-
Stability: Provides consistent $1.8\text{V}$, $1.2\text{V}$, and $3.3\text{V}$ rails even as the battery voltage drops during use.
-
Durability: Designed for high-cycle usage, meaning it can withstand thousands of charge/discharge cycles.
Technical Note: If you are a repair technician replacing this IC, ensure the alignment dot (Pin 1) matches the marking on the PCB precisely. Even a $0.5\text{mm}$ misalignment can cause a short circuit across the main power rail ($V_{bat}$).
