GQ Mobile Phone IC
Reliable Performance for Your Smartphone

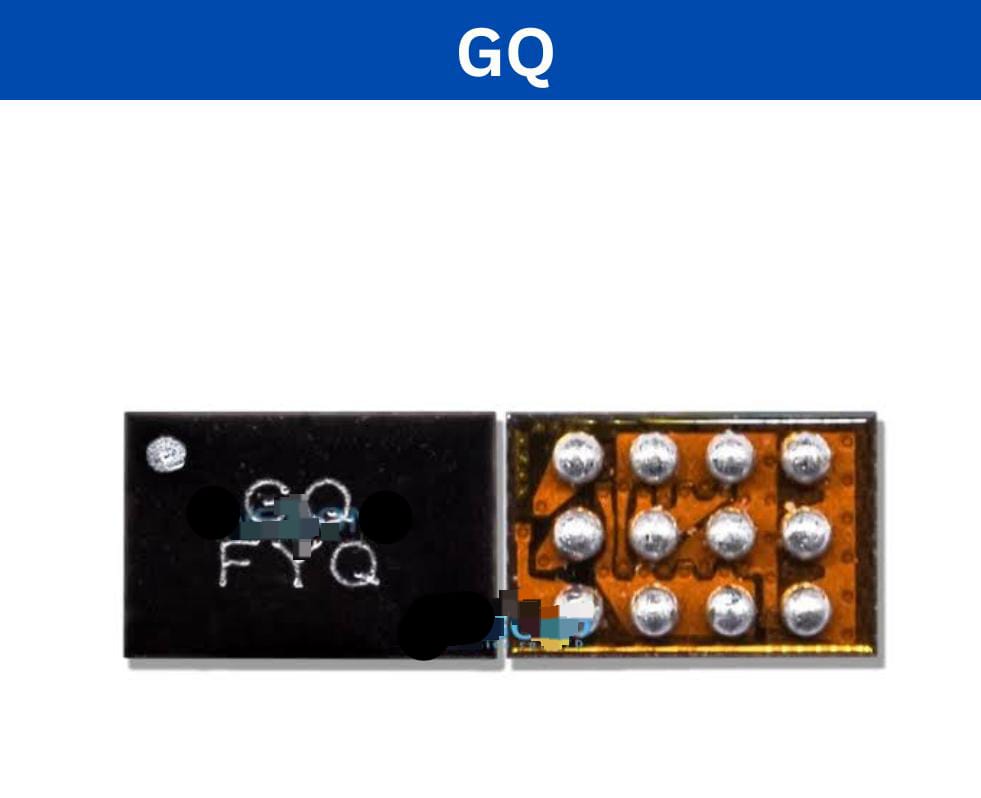

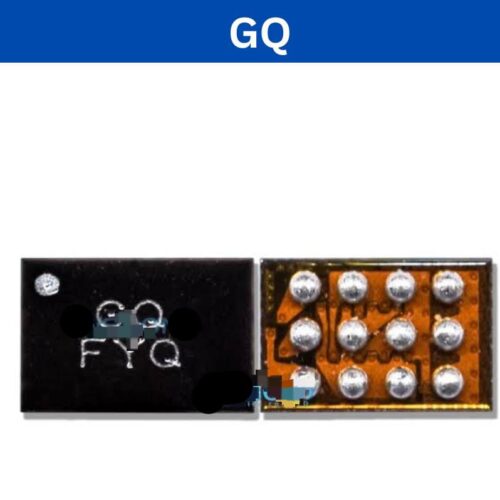

The GQ Mobile Phone IC is designed to deliver exceptional performance and efficiency, making it an essential component for modern smartphones. Built with precision and cutting-edge technology, this IC ensures seamless functionality and robust operation across various applications. GQ Mobile Phone IC
Compact Design with Maximum Efficiency
With its compact design, the GQ Mobile Phone IC optimizes space while providing maximum efficiency. It is tailored to enhance the performance of your smartphone, managing power requirements and improving overall device responsiveness for a superior user experience. GQ Mobile Phone IC
Enhanced Compatibility and Durability
The GQ Mobile Phone IC is engineered for compatibility with a wide range of smartphone models. Additionally, its durable build ensures long-lasting performance, making it a reliable choice for your mobile device’s internal circuitry needs. GQ Mobile Phone IC
In the world of mobile phone repair and electronics, “GQ” refers to a specific series of Integrated Circuits (ICs), most commonly recognized as charging and power management solutions. These ICs are ubiquitous in mid-range smartphones from manufacturers like Vivo, Xiaomi (Mi/Redmi), and Oppo. GQ Mobile Phone IC
The most famous component in this category is the GQ 12-Pin Charging IC, often utilized as a secondary power management unit (PMU) or a dedicated charging controller. GQ Mobile Phone IC
GQ Charging IC: Technical Overview
The GQ series ICs are designed to manage the flow of current from the USB port to the battery while protecting the motherboard from voltage spikes. GQ Mobile Phone IC
| Specification | Details |
| IC Model Series | GQ Series (e.g., GQ Charging IC) |
| Pin Configuration | 12-Pin BGA (Ball Grid Array) |
| Primary Function | Battery Charging Control & USB Power Management |
| Compatible Brands | Vivo (Y series), Xiaomi (Redmi Note series), Oppo |
| Input Voltage Range | 4.2V to 5.5V (Standard USB VBus) |
| Max Charging Current | Approx. 1.5A – 2.0A (Standard Fast Charge) |
| Package Type | Micro-BGA / SMT (Surface Mount Technology) |
| Common Variants | 12-pin (Standard), 15-pin (Advanced) |
| Operating Temp | -40°C to +85°C |
Detailed Functional Specifications
To understand why these ICs are critical, we can break down their internal logic and how they interact with the phone’s hardware. GQ Mobile Phone IC
1. Power Path Management
The GQ IC acts as a traffic controller. It determines whether the phone should run off the battery, the USB charger, or both simultaneously. This ensures that even if a battery is completely drained, the device can “boot” immediately upon being plugged in. GQ Mobile Phone IC
2. Thermal Protection
Mobile ICs are prone to overheating during rapid charging. The GQ series includes an internal Thermal Shutdown mechanism. If the chip reaches a specific temperature threshold (usually around 125°C internally), it throttles the current to prevent the “Black Screen” or “Dead Boot” issues common in damaged handsets.
3. Over-Voltage Protection (OVP)
One of the most frequent causes of GQ IC failure is the use of local, non-branded chargers. These ICs are rated for a specific tolerance; if the input exceeds ~6V, the IC intentionally “blows” its internal fuse-link to protect the more expensive CPU and EMMC chips.
Comparison: GQ vs. BQ (Texas Instruments)
In many schematics, you will see GQ and BQ ICs mentioned. While they serve similar roles, they are distinct.
| Feature | GQ Series | BQ Series (TI) |
| Cost | Budget-friendly, high volume | Premium, high precision |
| Pins | 12-Pin common | 24-Pin to 36-Pin common |
| Device Tier | Entry to Mid-range | Flagship / High-end |
| Complexity | Simple charging logic | Integrated fuel gauge & I2C comms |
Troubleshooting & Repair Notes
If you are looking for these specifications for repair purposes, here are the “red flags” that indicate a GQ IC failure:
-
Fake Charging: The phone shows the charging icon, but the battery percentage never increases.
-
USB Identification Failure: The phone charges but is not recognized by a PC for data transfer.
-
Overheating: The area near the SIM tray or CPU gets hot immediately after plugging in a charger.
Technical Tip: When replacing a GQ IC, always ensure the “Dot” (Pin 1 indicator) matches the orientation on the motherboard. Since it is a 12-pin BGA, even a slight misalignment can short the VBus line to Ground ($GND$), potentially killing the motherboard permanently.
