GT 915L Mobile Phone IC
Advanced Technology for Seamless Operation

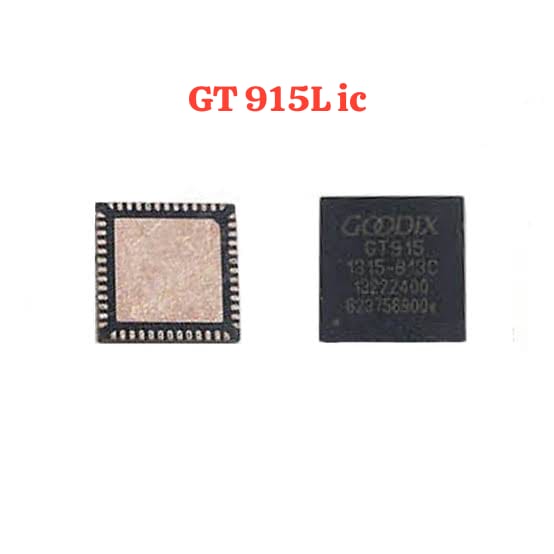

The GT 915L Mobile Phone IC is engineered to deliver exceptional performance, ensuring smoother and more efficient operation for your mobile devices. Compact yet powerful, this integrated circuit provides reliable functionality to enhance mobile performance. GT 915L Mobile Phone IC
Designed for Power Efficiency
Built with cutting-edge technology, the GT 915L focuses on minimizing power consumption without impacting performance. Perfect for modern devices, it ensures prolonged battery life and optimal energy usage. GT 915L Mobile Phone IC
Reliable and Durable Component
Durability meets reliability with the GT 915L IC. Whether for high-demand applications or everyday use, this high-quality component guarantees long-lasting performance, making it a preferred choice for mobile phone assembly and repair needs. GT 915L Mobile Phone IC
The GT915L is a highly popular, low-power capacitive touch controller Integrated Circuit (IC) developed by Goodix (Shenzhen Huiding Technology). It is specifically engineered for mobile devices, including smartphones, tablets, and automotive GPS navigation systems, typically supporting screen sizes between 4.5 and 6 inches.
Below is a comprehensive breakdown of its technical specifications and functional capabilities. GT 915L Mobile Phone IC
GT915L Full Technical Specifications
The following table outlines the core electrical, mechanical, and performance parameters for the GT915L IC.
| Feature Category | Specification Detail |
| Manufacturer | Goodix (Shenzhen Huiding Technology Co., Ltd.) |
| IC Type | 5-Point Capacitive Touch Controller |
| Core Processor | Built-in High-Performance MPU (Microprocessor Unit) |
| Supported Screen Size | 4.5 to 6.0 inches (standard mobile range) |
| Communication Interface | Standard $I^2C$ (Inter-Integrated Circuit) Slave Mode |
| Interface Logic Level | 1.8V to 3.3V (Compatible with modern SoCs) |
| Supply Voltage ($V_{DD}$) | 2.8V to 3.3V (Single power supply) |
| Internal Voltage Regulator | Built-in 1.8V LDO (Low Dropout Regulator) |
| Detection Channels | 26 Drive Channels (TX) * 14 Sensing Channels (RX) |
| Touch Scan Frequency | 100 Hz (Ensures real-time responsiveness) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -60°C to +125°C |
| Package Type | QFN-52 (Quad Flat No-lead), 6mm x 6mm, 0.4P |
| Response Time | Active: < 48ms; Sleep: < 200ms; Init: < 200ms |
| Material Support | ITO Glass, ITO Film, OGS (One Glass Solution) |
| Lens Thickness Support | Glass (0.7mm – 2.0mm); Acrylic (0.5mm – 1.2mm) |
Key Features and Functional Capabilities
The GT915L is known for its robustness in “noisy” electrical environments, which is critical for mobile phones where the display and cellular antennas can interfere with touch sensitivity.
-
Multi-Touch Processing: It can simultaneously identify 5 touch points, providing accurate coordinates and movement trajectories. GT 915L Mobile Phone IC
-
Environmental Adaptability: The chip features automatic calibration upon initialization and temperature drift compensation, allowing it to maintain accuracy even as the phone heats up during use. GT 915L Mobile Phone IC
-
Proximity Sensing: Includes a built-in proximity function to detect the user’s face during a call, allowing the system to turn off the screen and prevent accidental touches.
-
Frequency Hopping: To combat electromagnetic interference (EMI) from chargers or radio signals, the IC employs a frequency hopping mechanism to find a “clean” channel for touch detection. GT 915L Mobile Phone IC
-
Power Management: Optimized for mobile efficiency, it features different modes (Green, Sleep, and Active) to minimize current draw during inactivity. GT 915L Mobile Phone IC
Pin Configuration (Summary)
The GT915L uses a 52-pin QFN layout. Below are the primary functional pin groups:
-
Sensing Pins (SEN0–SEN13): These receive analog signals from the touch panel’s sensing electrodes.
-
Driving Pins (DRV0–DRV25): These output the driving signals to the touch panel’s drive electrodes.
-
Power Pins ($V_{DDIO}$, $A_{VDD28}$, $D_{VDD12}$): Manage power for digital/analog sections and GPIO level control.
-
Control Pins (INT, RSTB): Interrupt signal to alert the host CPU of a touch event and a Reset pin for system initialization.
-
I2C Pins (SCL, SDA): The data and clock lines used to communicate with the phone’s main processor.
Common Applications and Repair Context
In the mobile repair industry, the GT915L is frequently used as a replacement part for popular brands like Oppo (e.g., A37), Vivo, Huawei, and Xiaomi. Technicians typically replace this IC when a device exhibits “ghost touches,” dead zones on the screen, or total touch unresponsiveness despite the LCD displaying an image.
