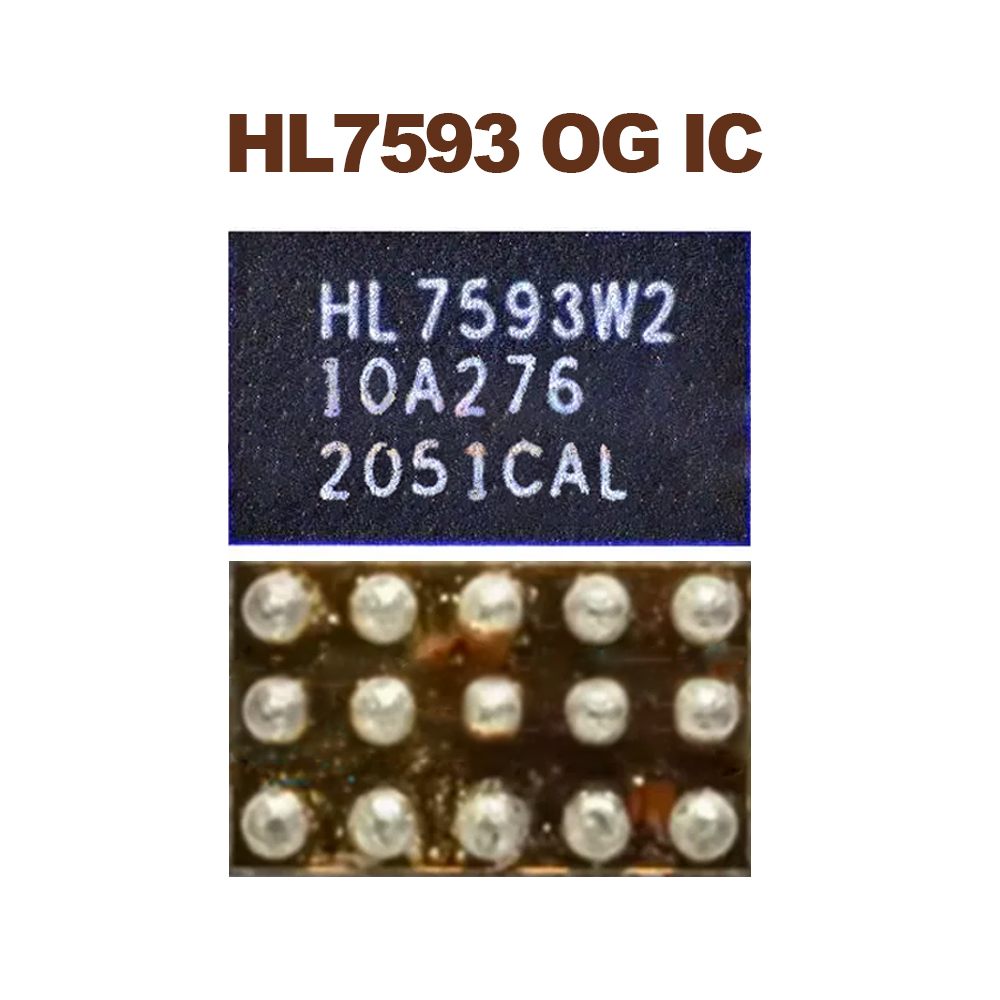

HL7593W2 Mobile IC
Unmatched Innovation in Mobile IC Technology
The HL7593W2 Mobile IC is a revolutionary component tailored for high-performance mobile devices. Engineered for reliability and efficiency, this intelligent IC ensures seamless functionality, addressing the growing demands of modern electronics. Crafted using cutting-edge technology, it offers outstanding integration capabilities, making it ideal for applications that require robust processing and connectivity.
Delivering Optimal Performance and Efficiency
Designed with precision, the HL7593W2 Mobile IC achieves exceptional efficiency in handling everyday operations for smartphones, tablets, and wearables. It minimizes power consumption while maintaining faster response times, ensuring a premium user experience. Its superior design supports accelerated data processing and seamless communication, adding immense value to your device. Whether you’re building new devices or upgrading existing ones, this IC promises to enhance overall system performance.
Why Choose HL7593W2 Mobile IC?
When quality meets innovation, you get the HL7593W2 Mobile IC. It not only adheres to the strictest industry standards but also offers compatibility with various processors and hardware setups. The component’s durability and thermal management ensure stable operation even under intensive workloads. Developers and manufacturers can rely on its scalability and flexibility to create products with advanced functionality – all while maintaining a compact form factor that fits effortlessly into complex device designs.
Upgrade your electronic devices today with the HL7593W2 Mobile IC, and experience the synergy of performance, efficiency, and reliability in one exceptional product. Whether you aim to redefine mobile technology or optimize existing hardware, the HL7593W2 Mobile IC is the ultimate solution for superior connectivity and processing needs.
The HL7593W2 is a high-efficiency, I2C programmable synchronous buck converter primarily manufactured by Halo Microelectronics. It is widely utilized in modern mobile devices, such as the Samsung Galaxy A04 and various Xiaomi models, to manage power delivery for application processors and memory subsystems.
Below is the full technical specification in a structured format.
HL7593W2 Technical Specifications
| Feature | Specification Details |
| Component Type | Synchronous Buck (Step-Down) Converter |
| Primary Function | Power Management / DC-DC Conversion |
| Input Voltage Range | $2.5V$ to $5.5V$ |
| Output Voltage Range | $0.600V$ to $1.394V$ |
| Voltage Adjustment | $6.25mV$ per step (Programmable via I2C) |
| Max Output Current | $3A$ |
| Switching Frequency | $2.4MHz$ (Fixed PWM) |
| Quiescent Current | $48\mu A$ (in PFM Mode) |
| Efficiency | Up to $90\%$ (typically $>80\%$ even at $10mA$ light loads) |
| Interface | I2C (Supports Standard, Fast, Fast-Plus, and High-Speed modes) |
| Package Type | WLCSP-15 (Wafer Level Chip Scale Package) |
| Dimensions | $2.01mm \times 1.21mm$ |
| Operating Temp | $-40^{\circ}C$ to $+85^{\circ}C$ |
Core Functional Features
The HL7593W2 is designed for high-performance mobile environments where space and thermal efficiency are critical. Key features include:
-
Dynamic Voltage Scaling (DVS): The IC can adjust its output voltage “on the fly” with a programmable slew rate. This allows the mobile processor to request more power during heavy tasks and instantly drop to a lower voltage during idle periods to save battery.
-
Dual Mode Operation: * PWM (Pulse Width Modulation): Used during high-load scenarios for low ripple and high performance.
-
PFM (Pulse Frequency Modulation): Automatically engages during light-load/standby conditions to maintain high efficiency and extend battery life.
-
-
Remote Sensing: It supports $V_{OUT}$ remote sensing, meaning it can monitor the voltage directly at the processor’s power pins to compensate for any voltage drops across the PCB traces.
Protection Circuitry
To ensure the safety of the mobile motherboard, the HL7593W2 includes several integrated safety layers:
-
UVLO (Under-Voltage Lockout): Prevents operation if the battery voltage is too low.
-
OVP (Over-Voltage Protection): Protects the IC and the system from voltage spikes.
-
SCP (Short-Circuit Protection): Instantly shuts down if a short is detected in the output line.
-
OTP (Over-Temperature Protection): Features thermal shutdown if the chip exceeds safe operating temperatures.
Common Applications
The IC is most frequently found in:
-
Smartphones: Managing power for the CPU/GPU cores or LPDDR memory.
-
Tablets & Handhelds: Providing stable rails for high-speed data components.
-
Storage Devices: Powering SSDs or HDDs in portable form factors.
