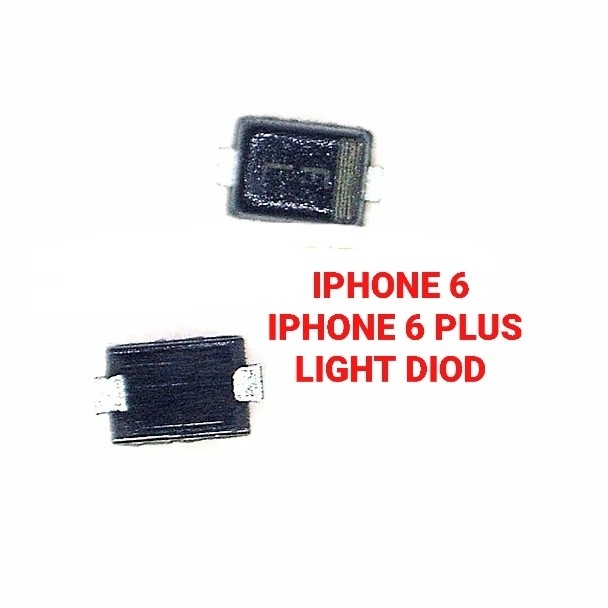

IP Diode Mobile Phone IC
Unparalleled Performance for Mobile Phone Circuitry
The IP Diode Mobile Phone IC is a state-of-the-art solution designed to ensure maximum efficiency and protection within mobile phone circuits. Engineered to optimize performance, this cutting-edge IC safeguards sensitive components from voltage spikes, electrical surges, and overheating, making it an essential product for high-performance devices. Manufacturers and tech enthusiasts alike will find this IC an invaluable addition for enhancing the durability and reliability of electronic devices. IP Diode Mobile Phone IC
Advanced Technology and Exceptional Reliability
This intelligent IC incorporates advanced diode technology to deliver superior circuit control and protection. With its compact design, it can easily fit into modern mobile phone architectures without compromising on functionality. The IP Diode IC is built using high-quality materials that ensure consistent performance and a longer lifespan, resulting in fewer replacements and reduced downtime for devices. Its innovative features help maintain smooth operation and protect vital components for optimal device performance.
Versatility and Compatibility for Modern Devices
The IP Diode Mobile Phone IC is designed with versatility in mind, making it compatible with a wide range of mobile phone models and configurations. Whether you’re developing flagship smartphones or cost-effective devices, this IC seamlessly integrates into various designs. It is particularly suitable for both consumer devices and professional equipment requiring reliable performance under demanding conditions. As a versatile solution, it supports mobile phone manufacturers in delivering dependable products that enhance customer satisfaction. IP Diode Mobile Phone IC
Bring reliability and efficiency to your mobile phone circuitry with the IP Diode Mobile Phone IC—a versatile and essential component for modern electronics that prioritizes protection and performance. IP Diode Mobile Phone IC
In the context of mobile phone hardware, the “IP Diode” or Input Protection Diode (often referred to as a TVS Diode or ESD Protection IC) is a critical component designed to safeguard the device’s sensitive internal integrated circuits from voltage surges and electrostatic discharge (ESD). IP Diode Mobile Phone IC
Function and Importance
Modern smartphones contain billions of transistors within their main processors and power ICs. These components are extremely sensitive to high-voltage transients that can occur when a user touches a charging port, inserts a SIM tray, or uses a low-quality charger. The IP Diode acts as a “pressure relief valve” for electricity, diverting excess voltage to the ground before it can reach and destroy expensive chips like the CPU or Power Management IC (PMIC). IP Diode Mobile Phone IC
Technical Specifications
While specific values vary by manufacturer (e.g., Nexperia, Texas Instruments, STMicroelectronics), typical specifications for a mobile IP Diode IC include:
1. Electrical Parameters
-
Working Peak Reverse Voltage ($V_{RWM}$): Usually between 3.3V and 5.5V for signal lines. This is the maximum voltage the diode can handle during “normal” operation without turning on.
-
Clamping Voltage ($V_{C}$): This is the voltage the diode “clamps” down to during a surge. For a 5V line, the $V_C$ might be around 8V to 12V.
-
Breakdown Voltage ($V_{BR}$): The point at which the diode starts to conduct to protect the circuit, typically slightly higher than $V_{RWM}$.
-
Leakage Current ($I_R$): In modern mobile ICs, this is kept extremely low (often in the nanoampere (nA) range) to prevent battery drain.
2. High-Speed Signal Integrity
-
Parasitic Capacitance ($C_T$): For data lines like USB-C or HDMI, the capacitance must be ultra-low (often < 0.5 pF) to ensure the diode doesn’t interfere with high-speed data signals.
-
Dynamic Resistance ($R_{DYN}$): Lower dynamic resistance (typically 0.1Ω to 1.0Ω) allows the diode to shunt current more effectively during a spike.
3. Protection Standards
-
IEC 61000-4-2: Most mobile IP diodes are rated for Level 4 protection, meaning they can withstand air-gap discharges of ±15 kV and contact discharges of ±8 kV.
Package and Identification
IP Diodes in mobile phones are designed for extreme space efficiency. They are commonly found in:
-
DFN (Dual Flat No-lead) packages: Tiny rectangular chips with dimensions as small as 0.6 mm x 0.3 mm (0201 equivalent).
-
WLCSP (Wafer Level Chip Scale Package): Even smaller, often appearing as a tiny glass-like mirror on the PCB.
On a mobile motherboard (PCB), these are usually located near external connectors like the Charging Port (VBUS), Battery Connector, and Display Flex Connector. In repair manuals, they are often labeled with codes starting with “D” or “U” (e.g., D1201 or U1501).
Common Failure Symptoms
If an IP Diode fails (often by “shorting” to ground while protecting the circuit), the phone may experience:
-
No Charging: If the VBUS protection diode is shorted.
-
Fast Battery Drain: Due to a high leakage current in a damaged diode.
-
No Power: If a diode on a main power rail is shorted to the ground.
