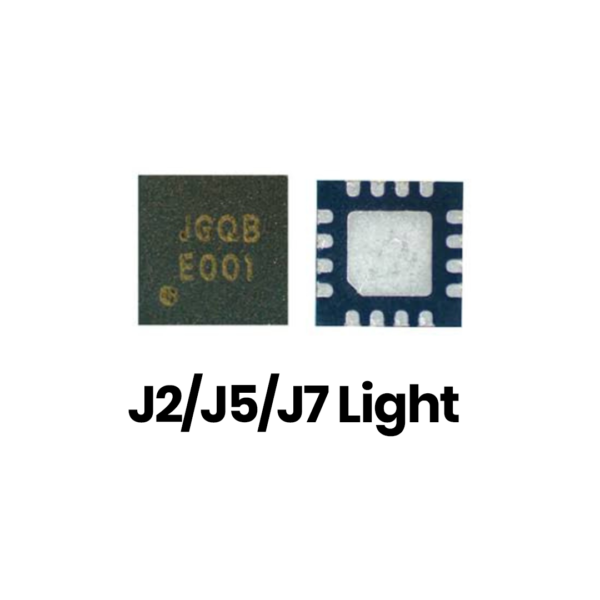

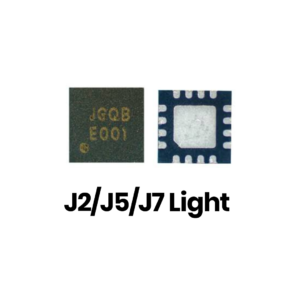

J7 LIGHT Mobile Phone IC
Seamless Performance for Your Mobile Device
The J7 LIGHT Mobile Phone IC is designed to ensure the optimal functionality of your mobile device. Engineered for precision, this IC delivers unmatched performance, making it an essential component for powering your smartphone’s features and capabilities. J7 LIGHT Mobile Phone IC
Exceptional Durability and Reliability
Built with high-quality materials, the J7 LIGHT Mobile Phone IC guarantees long-lasting durability and reliable operation. Ideal for repairing or upgrading your device, this IC helps restore its efficiency and smooth functionality. J7 LIGHT Mobile Phone IC
Perfect Fit for Compatibility
With its universal compatibility, the J7 LIGHT Mobile Phone IC integrates effortlessly with various mobile phone models. Enhance the usability of your phone and trust it to maintain consistent, high-speed performance for daily tasks. J7 LIGHT Mobile Phone IC
When discussing the Light IC (Backlight Driver Integrated Circuit) for the Samsung Galaxy J7 series, we are looking at the critical component responsible for converting battery voltage into the higher voltage required to illuminate the display’s LEDs.
In the J7 series (specifically models like the J7 Prime and J7 Pro), the Light IC often works in conjunction with the PMIC (Power Management IC) or exists as a dedicated 24-pin or 12-pin driver. J7 LIGHT Mobile Phone IC
Core Specifications: Galaxy J7 Light IC (SM-G610/J730 Series)
The following table outlines the technical parameters for the most common backlight drivers used in the J7 lineup (e.g., C5650 or LM36274 types).
| Parameter | Detailed Specification |
| IC Part Name | C5650 / LM36274 / S2MU005X03 (Integrated) |
| Function | Backlight LED Driver / Boost Regulator |
| Package Type | 24-Pin QFN / BGA |
| Input Voltage ($V_{IN}$) | 3.3V to 5.5V (Standard Battery Range) |
| Output Voltage ($V_{OUT}$) | Up to 18V – 25V (Boosted for LED Strings) |
| Operating Current | 20mA to 30mA per LED String |
| Control Method | PWM (Pulse Width Modulation) for Brightness |
| Interfacing | I2C (Inter-Integrated Circuit) for Digital Control |
| Thermal Protection | Integrated Thermal Shutdown at 150°C |
| Efficiency | >85% at Peak Luminance |
Component Analysis & Pin Configuration
The “Light IC” isn’t just a single chip; it’s the heart of a small circuit on the motherboard. If you are troubleshooting a “No Light” issue, these are the components and pin functions you’ll interact with:
1. Pin Functional Breakdown (Typical 24-pin Driver)
-
$V_{IN}$ (Supply): Receives 3.7V–4.2V directly from the battery or PMIC.
-
SW (Switching): Connects to the Boost Coil. This is where the voltage “jumps” up. J7 LIGHT Mobile Phone IC
-
FB (Feedback): Monitors the output to ensure the display doesn’t flicker. J7 LIGHT Mobile Phone IC
-
CTRL/EN: The “Enable” signal sent by the phone’s CPU when you wake the screen. J7 LIGHT Mobile Phone IC
-
LED1/LED2 (Cathodes): The return paths for the LED current, used to control dimming. J7 LIGHT Mobile Phone IC
2. The Support Circuit
To function, the Light IC requires three “teammates” on the PCB:
-
Boost Coil (Inductor): Usually a large grey/black square component near the IC. It stores energy to create high voltage.
-
Diode: Ensures current flows only toward the screen and doesn’t leak back.
-
Capacitor: Smooths out the voltage so the light stays steady.
Diagnostic Indicators: Is the IC Faulty?
Technicians often use a “Flashlight Test” to determine if the Light IC is the culprit:
-
Turn the phone on and shine a bright light at an angle against the dark screen.
-
If you can see the Samsung logo or your apps faintly in the background, the Display (LCD) is working, but the Light IC (or its circuit) has failed.
-
Voltage Check: Using a multimeter, you should see approximately $V_{BAT}$ (3.7V) at the coil when the screen is off, and 16V–25V at the display connector when the screen is active.
Common Variants Across the J7 Family
-
J7 (2015/J700): Often uses the S2MPU03A Power IC which handles multiple power rails, including light.
-
J7 Prime (G610): Frequently utilizes the C5650 standalone 24-pin driver.
-
J7 Pro (J730): Features an AMOLED display; while it doesn’t have a “backlight” in the traditional sense (each pixel glows), it uses a Display Power IC to manage the high-voltage rails for the organic LEDs.
Note for Repair: Replacing this IC requires professional micro-soldering tools (Hot Air Station at ~350°C) and flux. Attempting this with a standard soldering iron will likely damage the motherboard traces.
