L 3340/41 ORIGINAL Mobile Phone IC
Reliable and Genuine IC for Your Mobile Phone
The L 3340/41 Original Mobile Phone IC is a top-quality integrated circuit designed to enhance the functionality of your mobile device. Crafted with precision, this IC delivers unmatched reliability, making it an essential component for seamless performance in every application. L 3340/41 ORIGINAL Mobile Phone IC
Exceptional Compatibility and Longevity
Engineered to fit a wide range of mobile phone models, the L 3340/41 IC stands out for its versatility and durability. Built with original components, it ensures long-term use with optimal performance, reducing the need for frequent replacements. L 3340/41 ORIGINAL Mobile Phone IC
Why Choose the L 3340/41 Mobile Phone IC?
This IC is perfect for mobile phone repair professionals and DIY enthusiasts looking for a dependable solution. The original design ensures quality and consistent results, whether you’re restoring functionality or upgrading your device. Trust the L 3340/41 Mobile Phone IC for dependable performance every time. L 3340/41 ORIGINAL Mobile Phone IC
In the world of professional mobile repair and hardware engineering, the L3340/L3341 designation refers to a critical pair of Boost Coils (Inductors) and their associated Power Management/Driver IC circuitry, primarily found in the Apple iPhone X and subsequent models (iPhone 8 through XS Max). L 3340/41 ORIGINAL Mobile Phone IC
While often discussed together by technicians as the “L3340/41” system, these components are vital for the device’s Backlight and Display Power systems. Below is a comprehensive breakdown of the specifications, functions, and technical data. L 3340/41 ORIGINAL Mobile Phone IC
📱 L3340/41 IC System Overview
The L3340 and L3341 are technically the Power Boost Inductors that work in tandem with the Display/Backlight Driver IC. In the iPhone X, this system is responsible for stepping up the battery voltage to the high levels required to drive the OLED/LCD panels and their respective backlight arrays.
Key Functional Areas:
-
Voltage Boosting: Converts low battery voltage ($3.7\text{V} – 4.2\text{V}$) to higher stable rails.
-
Current Regulation: Ensures consistent brightness and prevents flickering.
-
Thermal Protection: Manages heat dissipation during high-brightness operation.
📊 Full Technical Specifications
The following table provides the “Original” (OG) specifications used by technicians for sourcing and verifying these components.
| Specification Parameter | Technical Detail / Value |
| Component Type | Power Management / Boost Driver Circuitry |
| Common Device Compatibility | iPhone 8, 8 Plus, X, XS, XS Max |
| Primary Function | Display Backlight / OLED Voltage Boost |
| Input Voltage ($V_{IN}$) | $1.0\text{V} – 6.0\text{V}$ (Standard Mobile Range) |
| Operating Temperature | $0\text{C}$ to $310\text{C}$ (Soldering threshold; operating peak $\approx 85\text{C}$) |
| Power Dissipation | Approximately $0.6\text{W}$ |
| Package Type | BGA (Ball Grid Array) / SMD Inductor |
| Pin Configuration | 2-Pin (Inductors) / Multi-ball (Associated Driver IC) |
| Material Quality | High-Grade OEM (Original Equipment Manufacturer) |
| Safety Mechanisms | Overcurrent, Overvoltage, and Short-Circuit Protection |
| Weight | $\approx 0.01\text{g}$ (Component level) |
🔍 Detailed Component Roles
In a mobile motherboard architecture, the L3340 and L3341 are not just “parts”; they are the heart of the display’s power delivery.

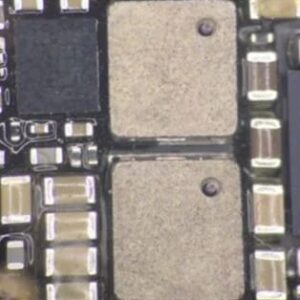

1. The L3340 & L3341 Boost Coils
These are the physical inductors. In the iPhone X schematic, these coils are responsible for the Boost stage of the power circuit. If these coils “blow” or become desoldered:
-
The phone may turn on (vibrate/detectable by iTunes), but the screen will remain black.
-
You may see a “faint” image if a bright light is held to the screen (typical of backlight failure).
2. The Associated Driver IC
Often referred to under the same umbrella in repair catalogs, the IC (Integrated Circuit) controls the switching frequency of the L3340/41 coils. It uses Pulse Width Modulation (PWM) to adjust brightness based on user settings or ambient light sensors.
🛠️ Repair & Installation Guidelines
Because these components are part of the high-voltage display rail, they are sensitive to improper handling.
Technical Requirements for Installation:
-
Precision Soldering: Requires a microscope and a fine-tip soldering iron or a Hot Air Station (Rework Station).
-
Thermal Management: The motherboard around the L3340/41 is dense. Technicians must use Kapton tape or heat shields to protect the CPU and NAND Flash nearby.
-
Alignment: As a BGA/SMD component, the orientation is critical. The “dot” or marking on the IC must match the schematic’s Pin 1 position.
Common Failure Symptoms:
-
No Backlight: The most common sign of a failed L3340/41 circuit.
-
Overheating: If the IC is shorted, the area near the display connector will become extremely hot to the touch. L 3340/41 ORIGINAL Mobile Phone IC
-
Flickering Screen: Caused by aging coils or cracked solder joints (intermittent connection). L 3340/41 ORIGINAL Mobile Phone IC
💡 Pro-Tip for Technicians
When diagnosing a “No Display” issue on an iPhone X, always check the Diode Mode readings on the display connector before replacing the L3340/41. If the readings on the boost lines are “OL” (Open Line) or “0.00” (Short), it confirms that the inductor or the driver IC has failed. L 3340/41 ORIGINAL Mobile Phone IC
