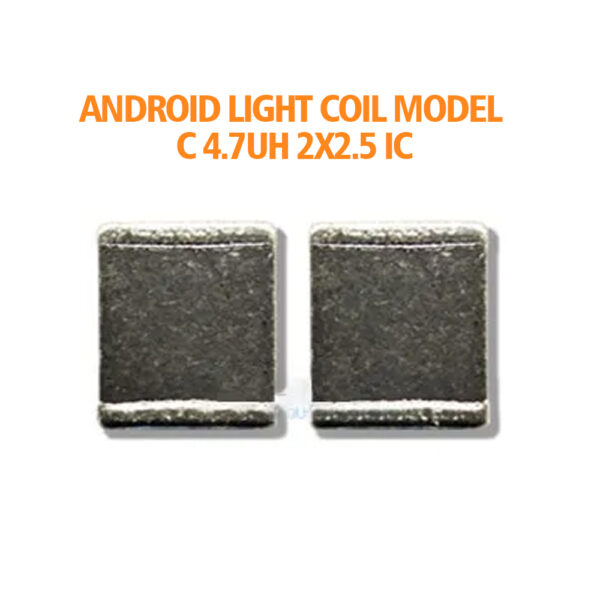

Light Coil Small 2×2.5 Mobile Phone IC
Enhanced Performance in a Compact Form Factor
The Light Coil Small 2×2.5 Mobile Phone IC is the ideal solution for modern electronics requiring high-efficiency components within limited space. Designed specifically for mobile devices, this innovative IC offers seamless integration, enabling exceptional performance for cutting-edge smartphones and compact gadgets.
Compact Size Meets Superior Functionality
Measuring just 2×2.5 mm, the Light Coil IC is perfect for applications where space is at a premium. Despite its small size, it delivers reliable functionality, making it crucial for mobile phones, tablets, and IoT devices. Its compact design also reduces power consumption, improving both the device’s energy efficiency and battery life.
Reliable and Versatile Compatibility
This IC is crafted to support diverse technologies, ensuring adaptability across various mobile phone models. Whether you’re working on a flagship smartphone or an entry-level device, the Light Coil Small 2×2.5 IC guarantees compatibility, outstanding durability, and optimal performance. Constructed with premium materials and cutting-edge manufacturing, it suits demanding environments and ensures reliable performance over extended periods.
The Light Coil Small 2×2.5 Mobile Phone IC stands as a vital asset for those seeking to enhance their electronics production with compact, efficient, and versatile components. Consider upgrading your lineup with this state-of-the-art integration solution today!
In the context of mobile phone repair and hardware engineering, the Light Coil Small 2×2.5 (often paired with a Power IC or Backlight IC) is a critical surface-mount component. Specifically, it is a power inductor used within the boost converter circuit of a smartphone to drive the LCD backlight.
Because mobile batteries usually output around 3.7V to 4.2V, but high-intensity screen LEDs require 15V to 25V (or more), this coil facilitates the rapid energy storage and release necessary to “boost” the voltage to the required levels.
Core Technical Specifications
The “2×2.5″ designation refers specifically to the physical footprint of the component in millimeters. Below are the typical electrical and physical parameters found in these units:
| Feature | Specification Details |
| Dimensions | $2.0\text{ mm} \times 2.5\text{ mm}$ (Small Footprint) |
| Inductance | Typically 2.2µH (Microhenries) or 4.7µH |
| Current Rating | Generally 1.0A to 2.5A (Saturation Current) |
| DC Resistance (DCR) | Low resistance (mΩ range) to prevent overheating |
| Package Type | SMD (Surface Mount Device) / SMT |
| Compatibility | Universal (Samsung, Xiaomi, Vivo, Oppo, Huawei) |
| Function | Voltage Step-up (Boost Inductor) |
Key Roles in Mobile Electronics
1. Backlight Boost Circuitry
The primary role of the light coil is in the Display Light Section. It works in tandem with the Light IC (Driver) and a Diode. When the IC switches rapidly, the coil stores energy in its magnetic field and releases it as a higher voltage pulse, which is then rectified by the diode to power the screen’s LED string.
2. Power Management & Filtering
Beyond just lighting, these coils act as “chokes.” They help filter out high-frequency noise from the power lines, ensuring that the sensitive Display IC receives a stable, “clean” current. This prevents screen flickering and protects the IC from voltage spikes.
3. Heat Management
Original 2×2.5 coils are manufactured with high-temperature resistant copper wire and a magnetic core. This is vital because the backlight circuit is one of the most power-hungry parts of a phone. A high-quality coil ensures that energy is converted with minimal loss as heat, preventing the “dimming” or “restarting” issues common with inferior replacement parts.
Common Failure Symptoms
When this specific 2×2.5 coil fails (usually due to water damage or short circuits), the phone may exhibit the following:
-
Black Screen: The phone vibrates and receives calls, but the display is completely dark.
-
Dim Display: The screen is visible only under a very bright flashlight (indicating the backlight is off).
-
Overheating: The area near the Power IC becomes excessively hot when the screen is on.
-
Burning Smell: Physical failure of the coil’s insulation under high load.
Replacement & Repair Note
The 2×2.5 light coil is a non-polarized component, meaning it can be soldered in either direction. However, technicians must ensure the Inductance value ($\mu H$) matches the original specification. Replacing a 2.2µH coil with a significantly different value can cause the Light IC to burn out or result in poor brightness levels.
