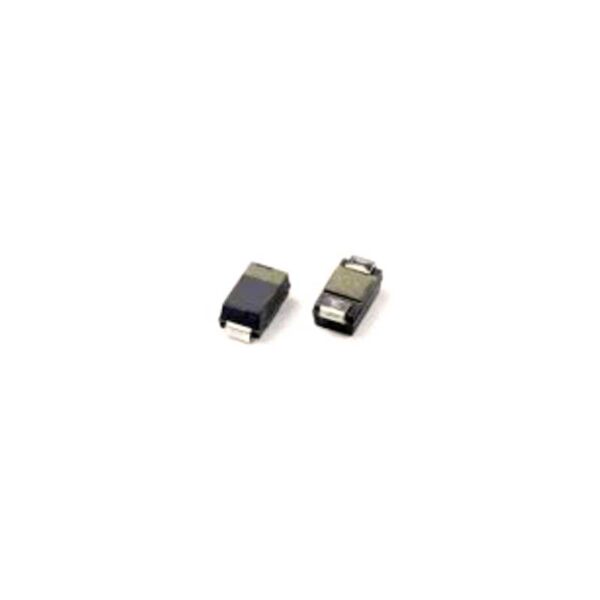

Light Diode no 2 Mobile Phone IC
Unlock the True Potential of Your Mobile Device
When it comes to mobile phone components, reliability is key. The Light Diode no 2 Mobile Phone IC is designed to ensure unmatched performance and endurance, boosting the efficiency of your smartphone. Whether you are a mobile repair professional or a tech enthusiast, this component is crafted to meet the highest standards of function and durability for seamless usage.
Precision and Durability for Everyday Use
The Light Diode no.2 Mobile Phone IC stands out due to its precision-engineered build, making it perfect for a wide range of mobile phone brands and models. Manufactured with premium-grade materials, it excels in managing tasks like controlling current flow and protecting critical circuits. Its compact size and efficient operation ensure it fits perfectly in even the most intricate designs, ensuring compatibility with the latest devices.
Why Choose the Light Diode no.2 Mobile Phone IC?
Not all phone components are created equal. The Light Diode no.2 Mobile Phone IC promises superior performance, thanks to its advanced technology and meticulous craftsmanship. Its key benefits include:
– Enhanced power efficiency for longer battery performance.
– Simplified integration into various device architectures.
– Rugged design to withstand wear and tear over time.
It’s time you upgraded your mobile repair toolkit with this exceptional IC that delivers value well beyond its price.
Simplified Installation and Wide Compatibility
Installing the Light Diode no.2 Mobile Phone IC is a straightforward process, thanks to its intuitive design. Whether you’re replacing an old or faulty component, this diode fits effortlessly, minimizing downtime and ensuring your device gets back to optimal performance quickly. Compatible with multiple smartphone models, it is a versatile solution, making it a popular choice for professionals and hobbyists alike.
Conclusion
If you’re on the lookout for a high-quality, reliable, and efficient IC to enhance your smartphone’s functionality, the Light Diode no.2 Mobile Phone IC is the perfect solution. It delivers on performance, durability, and ease of use, ensuring your device stays reliable for longer periods. Take the next step in maintaining or repairing mobile devices by adding this essential component to your inventory today.
In the context of mobile phone hardware repair, the term Light Diode No. 2 (or Universal No. 2) typically refers to a specific standardized LED driver or a universal backlight component used for motherboard-level repairs. In most modern smartphones, especially Android devices, this component is a critical part of the display illumination circuit.
Overview of the Backlight IC (Light Diode No. 2)
Mobile phone displays require high voltage (typically 15V to 25V) to power the string of LEDs behind the LCD. Since the phone battery only provides about 3.7V to 4.2V, a specialized Integrated Circuit (IC)—often nicknamed the “Light IC” or “Light Diode”—is used to “boost” this voltage.
Key Technical Specifications
While specific manufacturers (like Qualcomm, MediaTek, or TI) have their own part numbers, the “Universal No. 2″ repair component generally adheres to these standard specifications:
| Feature | Specification |
| Input Voltage ($V_{IN}$) | 2.7V to 5.5V (Battery range) |
| Output Voltage ($V_{OUT}$) | Up to 25V or 30V (Boosted) |
| Current Output | 20mA to 30mA per channel |
| Switching Frequency | 1.0 MHz to 2.0 MHz |
| Package Type | WLCSP (Wafer Level Chip Scale Package) or BGA (6-pin to 12-pin) |
| Efficiency | ~85% to 92% |
Internal Components & Pinout
A “No. 2 Light IC” is technically an integrated boost converter. It usually consists of several internal stages: Light Diode no 2 Mobile Phone IC
-
Oscillator: Generates the high-frequency switching signal. Light Diode no 2 Mobile Phone IC
-
Power MOSFET: The internal switch that handles the current. Light Diode no 2 Mobile Phone IC
-
Control Logic: Manages Pulse Width Modulation (PWM) for brightness dimming. Light Diode no 2 Mobile Phone IC
Common Pin Configurations
Standard 6-pin or 8-pin universal light ICs follow this general layout: Light Diode no 2 Mobile Phone IC
-
VIN: Connected to the battery positive (VBAT). Light Diode no 2 Mobile Phone IC
-
SW (Switch): Connected to the Boost Coil (Inductor). This is where the voltage is “kicked” up. Light Diode no 2 Mobile Phone IC
-
GND: System ground. Light Diode no 2 Mobile Phone IC
-
FB (Feedback): Monitors the output to ensure stable voltage.
-
EN/PWM: The “Enable” pin that receives signals from the CPU to turn the light on/off or dim it.
-
OVP (Over Voltage Protection): Prevents the IC from burning out if the display is disconnected.
Fault Symptoms and Troubleshooting
If the Light Diode No. 2 or its associated circuit fails, the phone will typically show a “Dark Screen” (the phone is on and you can see images with a flashlight, but the screen doesn’t glow).
Common Failure Points:
-
The Boost Coil: Often fails due to water damage; it looks like a small black square near the IC.
-
The Backlight Diode: A small two-terminal component that prevents current from flowing backward. If it shorts, the IC will overheat.
-
Filter Capacitors: Large capacitors near the IC that may short to ground.
Pro Tip: When replacing a “No. 2 Light IC,” always check the Boost Coil and the Backlight Diode first. Replacing the IC without fixing a shorted capacitor will often result in the new IC burning out immediately.
