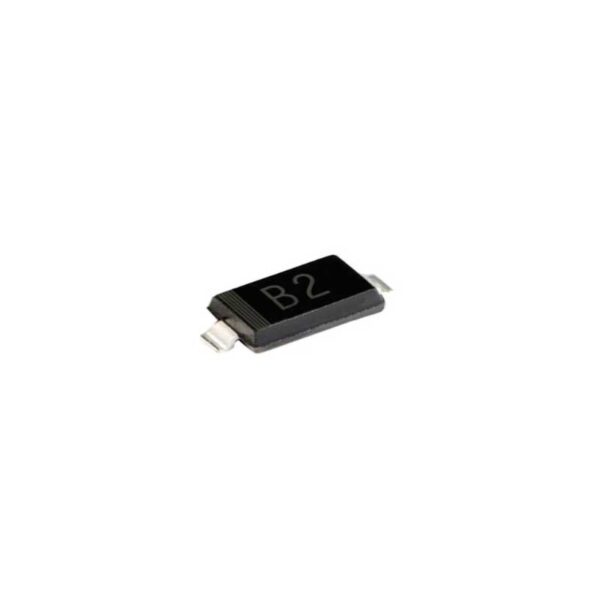

Light Diode No 3 Mobile Phone IC
Enhancing Mobile Phone Performance with Light Diode No 3
Crafted for precision and efficiency, the Light Diode No 3 Mobile Phone IC is designed to elevate your device’s performance. This indispensable component ensures optimized functioning for mobile phones, offering superior durability and reliability. Whether you’re seeking enhanced signal processing or seamless operations, this IC delivers without compromise. Light Diode No 3 Mobile Phone IC
Built for Reliability and Longevity
The Light Diode No 3 Mobile Phone IC is manufactured using premium materials and cutting-edge technology, ensuring its compatibility with a variety of mobile phone models. Its compact and robust design makes it an essential upgrade for mobile repair professionals or tech enthusiasts dedicated to improving device functionality. Users can trust its efficiency in maintaining stable power flow within the device while reducing heat output.
Ideal for Professionals and DIY Enthusiasts
Designed for versatility, this component is perfect for both mobile phone professionals and hobbyists. Its straightforward integration process allows for smoother repairs, reducing downtime and improving device ROI. Whether you’re fixing an intricate motherboard issue or upgrading your hardware, the Light Diode No 3 Mobile Phone IC ensures excellent results without frustration. With a focus on high performance, this IC provides stability and enhances the durability of the mobile devices it powers. Light Diode No 3 Mobile Phone IC
Why Choose the Light Diode No 3 IC?
Choosing the right IC can make all the difference in maintaining and extending the lifespan of your mobile phone. The Light Diode No 3 IC embodies quality and efficiency, making it the preferred choice for those who prioritize device performance. Its lightweight, energy-efficient design ensures minimal power consumption while still maximizing operational capabilities.
In the world of mobile phone electronics and repair, the term “Light Diode No. 3” (often abbreviated as LD3) refers to a specific, high-performance universal backlight component.1 It is not a standard IC in the sense of a microprocessor, but rather a power Schottky diode or a specialized LED Driver Diode used within the backlight boost circuit. Light Diode No 3 Mobile Phone IC
Technical Overview
Mobile displays require high voltage (typically 15V to 30V) to light up the string of LEDs behind the LCD. Since a phone battery only provides about 3.7V to 4.2V, a boost converter circuit is used. The No. 3 Light Diode is a critical component in this circuit, acting as a “one-way valve” that allows the boosted voltage to reach the LEDs without flowing back and damaging the Power Management IC (PMIC). Light Diode No 3 Mobile Phone IC
Key Specifications
| Feature | Specification Details |
| Component Type | Schottky Barrier Diode (Fast Switching) |
| Forward Voltage ($V_F$) | Typically 0.3V to 0.5V (Low drop for high efficiency) |
| Peak Reverse Voltage | 40V to 60V (To handle the boosted backlight voltage) |
| Current Rating ($I_F$) | 500mA to 1A (Standard for smartphone backlight strings) |
| Package Size | SMD (Surface Mount Device), often SOD-323 or 0402/0603 metric |
| Operating Temperature | -40°C to +125°C |
Functional Roles in Mobile Hardware
1. Voltage Rectification
In the backlight boost section, an inductor and a switching IC “pump” the voltage up. The No. 3 Diode ensures that once the voltage is boosted, it is rectified into a steady DC stream for the display. If this diode fails, the screen will remain black or extremely dim.
2. Protection Circuitry
The “No. 3” designation in many repair manuals refers to its placement in the third protection tier of the UI (User Interface) section. It protects the CPU and Power IC from high-voltage spikes generated by the backlight coil.
3. Thermal Management
Because it is a “Low $V_F$” diode, it generates very little heat. This is crucial in slim modern smartphones where heat dissipation is limited.
Common Symptoms of Failure
Technicians often look for the LD3 component when a phone exhibits the following issues:
-
Black Screen: The phone vibrates and makes sounds, but the display is invisible (Backlight failure).
-
Dim Display: The light is visible only in a dark room or under a flashlight.
-
Short Circuit: The phone does not turn on because the diode has “leaked” and is grounding the main power rail (VCC_MAIN).
Compatibility and Usage
While the “No. 3” label is common in wholesale markets (like those in India and China), this component is cross-compatible with many Android brands including Xiaomi (Redmi), Oppo, Vivo, and Samsung. In iPhone schematics, similar diodes are often labeled with codes like D1501 or D901.
Note for Technicians: When replacing this component, polarity is critical. The side marked with a line (Cathode) must face the output side of the circuit. Installing it backward can permanently damage the Display IC.
