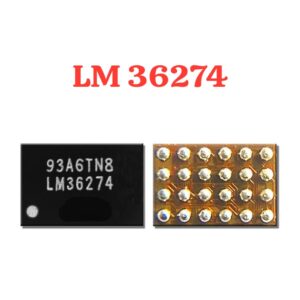

LM 36274 Mobile Phone IC
Efficient Design for Mobile Excellence
The LM 36274 Mobile Phone IC is engineered to elevate your mobile device’s performance and functionality. Built with cutting-edge technology, it ensures optimized power management and seamless integration into various device architectures. LM 36274 Mobile Phone IC
Unmatched Reliability and Durability
This integrated circuit delivers supreme reliability, making it perfect for long-term use in modern smartphones. Designed to handle demanding environments, the LM 36274 guarantees consistent performance and durability that exceeds expectations. LM 36274 Mobile Phone IC
Versatile Compatibility and Easy Integration
The LM 36274 is compatible with a wide range of system designs, offering flexibility for developers and manufacturers. Its streamlined architecture ensures straightforward implementation, saving you time and resources in your product development process. LM 36274 Mobile Phone IC
The LM36274 is a highly integrated power management solution manufactured by Texas Instruments, specifically designed for mobile devices. It serves as a dual-purpose component: a four-channel White LED (WLED) driver for display backlighting and an LCD bias supply to power the display panel itself. LM 36274 Mobile Phone IC
In the world of smartphone repair, this IC is a “usual suspect” when a phone has a working vibrating motor and sound (indicating the motherboard is alive) but the screen remains completely dark or extremely dim. LM 36274 Mobile Phone IC
Technical Specifications Summary
| Feature | Specification |
| Manufacturer | Texas Instruments (TI) |
| Input Voltage Range ($V_{IN}$) | $2.7V$ to $5V$ |
| Max Output Voltage ($V_{OUT}$) | $29V$ (for LED backlight strings) |
| LED Channels | 4 Parallel Channels |
| Max Current per Channel | $30mA$ |
| LCD Bias Voltages | Programmable $\pm 4V$ to $\pm 6.5V$ |
| LCD Bias Current | Up to $80mA$ per output |
| Dimming Resolution | 11-Bit (Exponential and Linear) |
| Interface/Control | $I^2C$ and PWM (Pulse Width Modulation) |
| Efficiency | Up to $92\%$ |
| Switching Frequency | $1050kHz$ (Adjustable) |
| Package Type | 24-pin DSBGA (Dimensions: $1.8mm \times 2.6mm$) |
| Operating Temperature | $-40^\circ C$ to $+85^\circ C$ |
Key Functional Blocks
The LM36274 is essentially three power converters in one tiny chip:
-
Backlight Boost Converter: This block takes the battery voltage (typically $3.7V – 4.2V$) and “boosts” it up to $29V$. This high voltage is necessary to drive multiple LEDs connected in series within the screen’s backlight unit.
-
LCD Positive Bias ($V_{POS}$): Provides a stable positive voltage (typically $+5V$ or $+5.5V$) to the LCD pixels.
-
LCD Negative Bias ($V_{NEG}$): Provides a stable negative voltage (typically $-5V$ or $-5.5V$). This “push-pull” voltage setup is what allows the liquid crystals to twist and untwist to display images.
Common Applications and Compatibility
The LM36274 is widely used in mid-range and budget smartphones that utilize LCD (rather than AMOLED) screens. Common models include:
-
Samsung: Galaxy A12, A21s, M40.
-
Xiaomi/Redmi: Note 8, Note 9 series.
-
Huawei/Honor: Nova 2 Plus, Nova 4, Honor 10 Lite.
Common Failure Symptoms
If this IC fails, the phone will typically exhibit the following “Light IC” issues:
-
No Backlight: The screen stays black, but if you shine a flashlight directly onto the display, you can see the faint outlines of icons or text.
-
Flickering: The screen brightness fluctuates rapidly.
-
Dim Screen: The brightness is stuck at a very low level despite software settings being at $100\%$.
-
Half-Dark Screen: Since this IC has 4 channels, if one channel fails or a trace is blown, half of the screen might be dark while the other remains lit.
Pinout and Mechanical Data

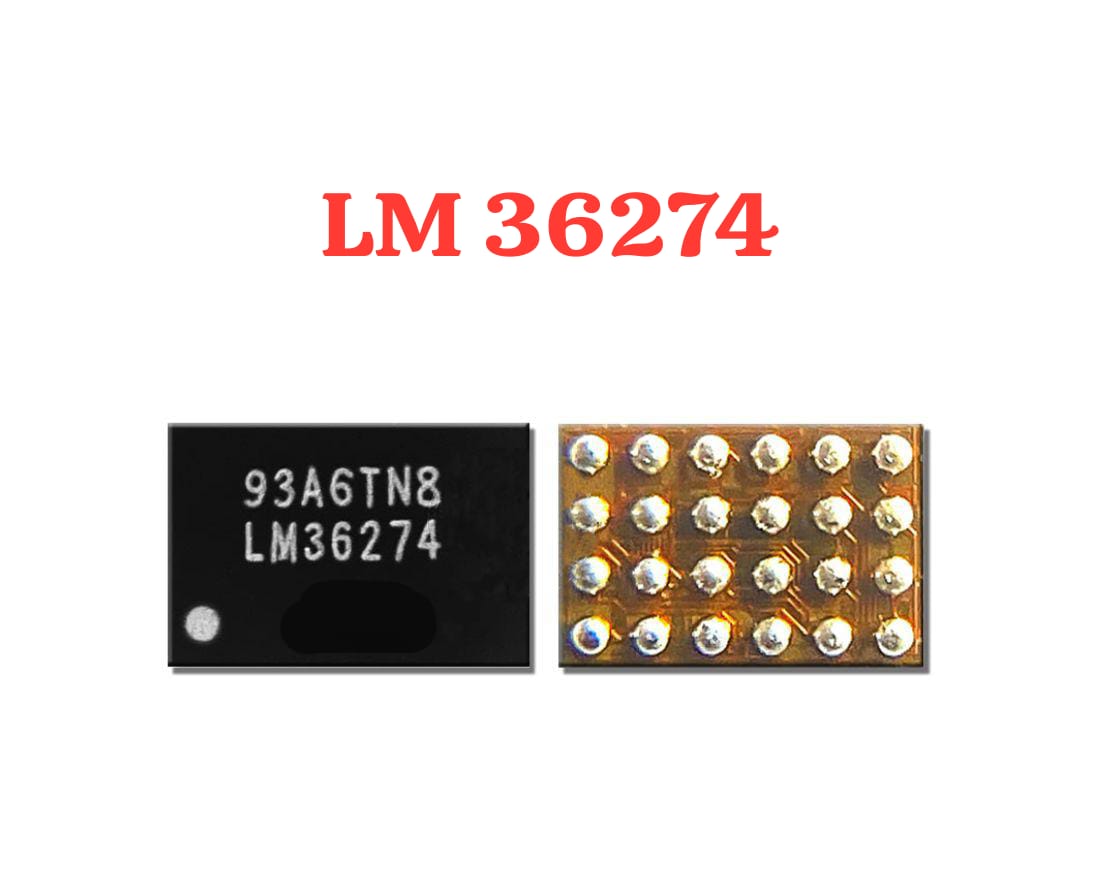

The IC uses a DSBGA (Die Size Ball Grid Array) package with 24 pins (balls). Because of its 0.4mm pitch, replacing this IC requires professional micro-soldering tools, including a hot air station, high-quality flux, and usually a microscope.
Tech Tip: When replacing this IC, always check the Backlight Coil (Inductor) and the Diode nearby. These components often fail alongside the IC due to the high voltages ($20V-30V$) they handle.
