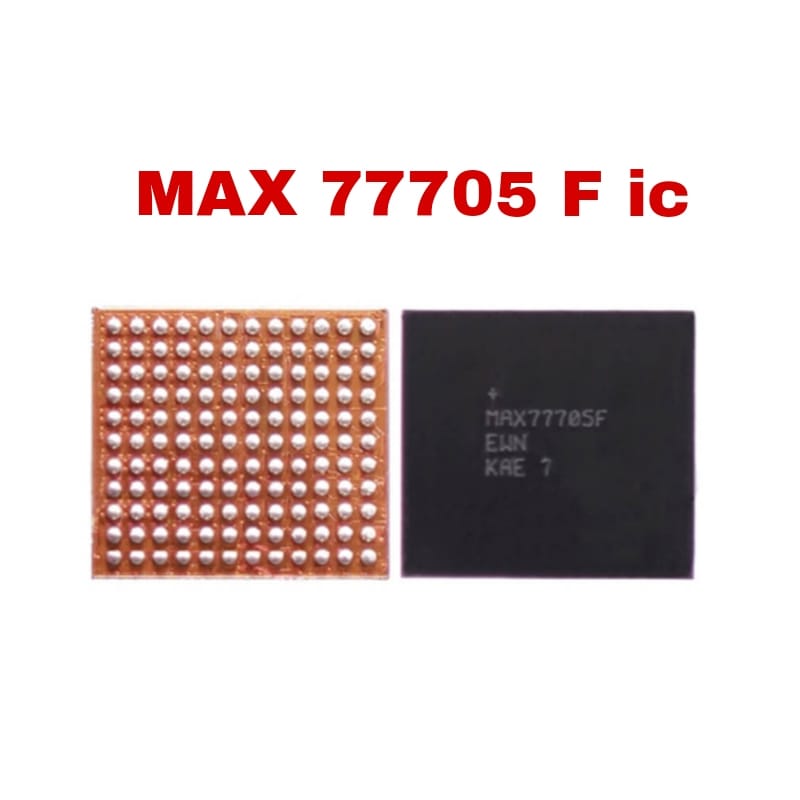

MAX 77705 F Mobile Phone IC
High-Performance IC for Mobile Devices
The MAX 77705 F Mobile Phone IC is an advanced integrated circuit designed to enhance the performance and reliability of modern smartphones. With its cutting-edge technology, this IC ensures seamless power management and optimizes device efficiency, contributing to an exceptional user experience. MAX 77705 F Mobile Phone IC
Reliability Meets Innovation
Engineered for precision, the MAX 77705 F integrates innovative features that support long battery life and consistent performance. It’s the trusted choice for manufacturers needing robust components suitable for high-demand mobile environments. MAX 77705 F Mobile Phone IC
Ideal for Modern Mobile Applications
Whether powering flagship devices or supporting mid-range smartphones, the MAX 77705 F Mobile Phone IC stands out for its adaptability and durability. Its compact design and advanced functionality make it indispensable for cutting-edge mobile technology projects.
The MAX77705F is a highly integrated Power Management Integrated Circuit (PMIC) manufactured by Maxim Integrated (now part of Analog Devices). It is a critical “Power Supervisor” chip, most famously used in flagship Samsung smartphones like the Galaxy S9, S9+, and Note 9.
Its primary role is to manage the charging logic, battery fuel gauging, and power distribution for specific sub-systems like the camera, sensors, and wireless communication modules. MAX 77705 F Mobile Phone IC
MAX77705F Full Specifications Table
| Feature Category | Technical Specification Detail |
| Model Number | MAX77705F (Commonly marked: MAX77705) |
| Compatible Models | Samsung Galaxy S9, S9+, Note 9, S10 Plus |
| Function | Primary Charging IC / Power Supervisor |
| Input Voltage Range | $2.5\text{V}$ to $5.5\text{V}$ (Standard USB/Li-ion range) |
| Maximum Charging Current | Up to $3.0\text{A}$ (Programmable) |
| Integrated Components | Switching Charger, Fuel Gauge, LDOs, RGB LED Driver |
| Switching Frequency | $1.5\text{MHz}$ to $3\text{MHz}$ (High efficiency) |
| Efficiency | >92% for Buck Conversion |
| Communication Bus | $\text{I}^2\text{C}$ Serial Interface ($1\text{MHz}$ to $3.4\text{MHz}$) |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Protection | OVP (Over-Voltage), OTP (Over-Temp), Battery Temp Monitoring |
| Application | Battery Management & Sub-system Power Control |
In-Depth Analysis of MAX77705F
1. Integrated Charging & Battery Management
The MAX77705F is not just a simple regulator; it is an intelligent battery management system. It features a High-Efficiency Switching Charger that supports fast charging protocols. It communicates with the phone’s processor to adjust the charging current dynamically based on the battery’s temperature and charge cycle. This prevents the “overheating” issues common in high-performance smartphones. MAX 77705 F Mobile Phone IC
2. The Role of the “Fuel Gauge”
One of the most advanced features of the MAX77705F is the integrated ModelGauge m5 algorithm. Unlike older chips that only measured voltage to guess battery percentage, this IC tracks “Coulomb counting” (actual current flow). This ensures that the battery percentage you see on your screen is 100% accurate, even as the battery ages over 2–3 years. MAX 77705 F Mobile Phone IC
3. Power Distribution (LDOs and Bucks)
The IC contains multiple Low-Dropout Regulators (LDOs) and Buck Converters. These are used to power specialized parts of the motherboard:
-
Camera Modules: High-resolution cameras need very “clean” power to avoid noise in photos. The MAX77705F provides ultra-low-noise LDOs specifically for this. MAX 77705 F Mobile Phone IC
-
LED Drivers: It often controls the notification RGB LEDs found on the front of the S9 and Note 9 series. MAX 77705 F Mobile Phone IC
-
IF (Intermediate Frequency) Logic: It helps manage the power required for the radio frequency sections, ensuring stable 4G/LTE connectivity. MAX 77705 F Mobile Phone IC
4. Common Repair Symptoms (Faulty IC)
In the mobile repair industry, the MAX77705F is frequently replaced due to the following issues:
-
Fake Charging: The phone shows it’s charging, but the percentage stays the same or drops.
-
No Power / Dead Boot: If the internal buck converter of the MAX77705F shorts, the entire VPH_PWR line can collapse, leaving the phone completely dead.
-
Overheating during Charge: A faulty MAX77705F can fail to throttle current, causing the area around the IC to reach dangerous temperatures ($>90^\circ\text{C}$).
5. Technical Installation Note
The MAX77705F is a BGA (Ball Grid Array) chip. It requires professional “reballing” or “SMD Rework” tools. Because it is a “Power Supervisor,” using a low-quality or “copy” chip can lead to the CPU not receiving the “Power Good” signal, which results in the phone getting stuck in a boot loop.
