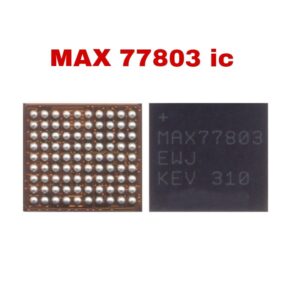

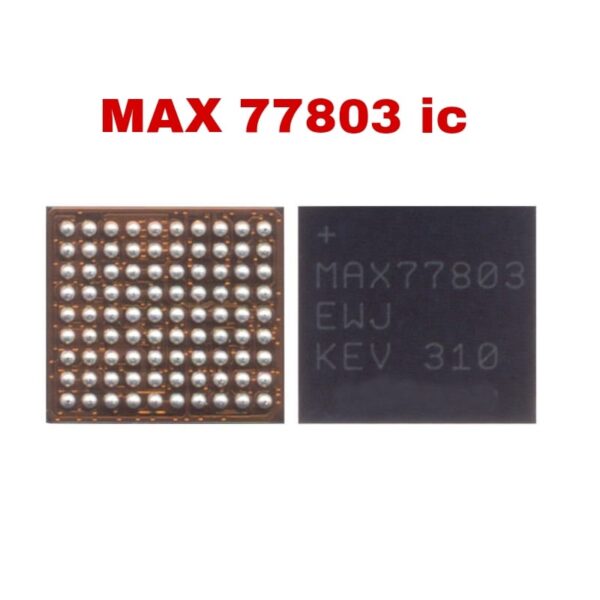

MAX 77803 Mobile Phone IC
Introducing the MAX 77803 Mobile Phone IC
The MAX 77803 Mobile Phone IC is a high-efficiency integrated circuit designed specifically for mobile devices. Delivering exceptional reliability, this IC ensures smooth performance and extended device functionality.
Engineered for Seamless Performance
With its optimized design and robust features, the MAX 77803 supports essential mobile operations while enhancing battery performance. It is built to meet the demands of modern smartphones and ensures seamless operation across various functions. MAX 77803 Mobile Phone IC
A Reliable Component for Mobile Innovation
Whether you’re developing new devices or upgrading existing smartphones, the MAX 77803 Mobile Phone IC serves as a dependable solution. It combines efficiency, durability, and ease of integration, making it the go-to choice for tech innovators across the globe. MAX 77803 Mobile Phone IC
The MAX77803 is a high-performance Power Management Integrated Circuit (PMIC) designed by Maxim Integrated (now part of Analog Devices). It gained significant fame in the mobile repair industry as the “Small Power IC” used in the iconic Samsung Galaxy S4 (I9500/I9505) and other flagship devices of that era.
Its primary role is to manage secondary power rails and specialized charging functions that the main PMIC does not handle, making it a critical component for device stability. MAX 77803 Mobile Phone IC
MAX77803 Technical Specifications Table
| Category | Specification Details |
| Manufacturer | Maxim Integrated (Analog Devices) |
| IC Model | MAX77803 / MAX77803EWJ |
| Type | DC-DC Converter / Secondary PMIC |
| Package Type | WLCSP-128 (Wafer Level Chip Scale Package) |
| Core Function | Sub-PMIC for Logic and Display Power |
| Input Voltage Range | $2.7\text{V}$ to $5.5\text{V}$ (Ideal for Li-ion Batteries) |
| Number of Outputs | Dual-output Buck/LDO configurations |
| Operating Frequency | Optimized for high switching efficiency ($2\text{ MHz}$+) |
| Control Interface | $\text{I}^2\text{C}$ (Inter-Integrated Circuit) Serial Bus |
| Efficiency | Peak efficiency up to 93% |
| Protection Features | OTP (Over-Temp), UVLO (Under-Voltage), OVP (Over-Voltage) |
| Pin Compatibility | Often grouped with MAX77804 / MAX77843 series |
| Application | Samsung Galaxy S4, S5 (variants), and Tablets |
Deep Dive: The Role of MAX77803 in Mobile Devices
1. Secondary Power Management
In high-end smartphones like the Samsung S4, the main CPU (Exynos or Snapdragon) requires multiple voltage levels simultaneously. While the “Big Power IC” handles the heavy lifting for the processor cores, the MAX77803 manages auxiliary systems. This includes power for the High-Definition Super AMOLED display, sensors, and camera modules. By offloading these tasks to a secondary IC, the phone manages heat much better. MAX 77803 Mobile Phone IC
2. Battery and Charging Logic
The MAX77803 acts as a sub-controller for the charging circuit. It monitors the battery’s state of health and ensures that the voltage entering the system from the USB port is regulated. It prevents “ripple” or electrical noise from damaging the sensitive logic board components. MAX 77803 Mobile Phone IC
3. Thermal Intelligence
This IC is equipped with advanced thermal sensors. If the device’s internal temperature rises during heavy tasks like 1080p video recording or gaming, the MAX77803 can signal the processor to throttle down, or it can shut down its own power rails to prevent permanent hardware damage.
Troubleshooting & Common Repair Issues
Technicians often replace the MAX77803 when a device exhibits specific “power-cycle” failures. Here are the most common symptoms of a faulty MAX77803:
-
Battery Draining (Short Circuit): A common issue in Samsung S4 models was a partial short inside this IC. The phone would get warm even when turned off, and the battery would drop from 100% to 0% in a few hours. MAX 77803 Mobile Phone IC
-
No Power / Dead Boot: If the MAX77803 fails to generate the V-Display or V-Logic rails, the phone will not trigger the boot sequence, resulting in a completely dead device. MAX 77803 Mobile Phone IC
-
Stuck on Logo: Sometimes the IC provides enough power to start the CPU but fails to sustain the voltage for the display or internal memory (eMMC), causing the phone to hang on the startup screen. MAX 77803 Mobile Phone IC
-
Charging Errors: If the phone displays a “Battery Temp Too High” or “Charging Paused” message (even when the phone is cool), the thermal monitoring pins of the MAX77803 might be defective. MAX 77803 Mobile Phone IC
Technician’s Advice on Replacement
Because the MAX77803 is a BGA (Ball Grid Array) chip with a very fine pitch, replacing it requires a professional SMD rework station. MAX 77803 Mobile Phone IC
-
Heat Management: Use a temperature between $330^\circ\text{C}$ and $350^\circ\text{C}$ to avoid delaminating the thin PCB.
-
Compatibility: While the MAX77803 and MAX77804 belong to the same family, they are not always interchangeable unless the schematic explicitly states so. Always use the exact model number (e.g., MAX77803EWJ) for a successful repair.
