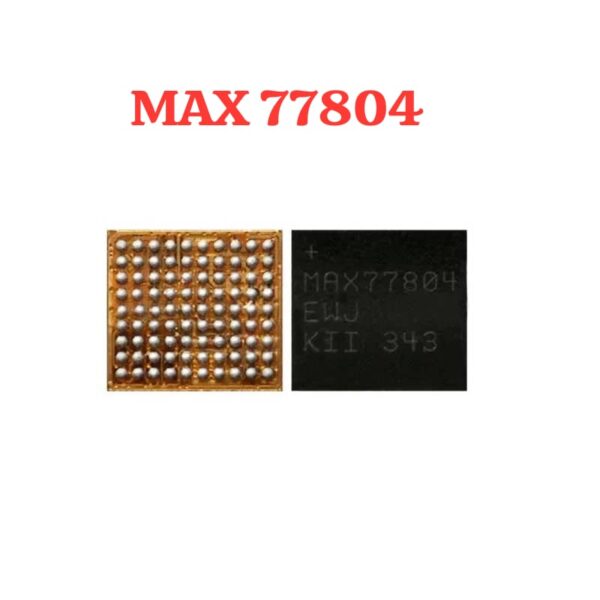

MAX 77804 Mobile Phone IC
Advanced Power Management Solution
The MAX 77804 Mobile Phone IC is an innovative power management integrated circuit designed to optimize performance and power efficiency in mobile devices. Built to handle the dynamic demands of today’s smartphones, this IC ensures smooth operation while reducing power consumption. MAX 77804 Mobile Phone IC
Compact Yet Powerful Design
Compact in size, the MAX 77804 is ideal for sleek and lightweight mobile device designs. Despite its small footprint, it delivers powerful performance, supporting multiple voltage rails and ensuring stable power delivery to critical components. MAX 77804 Mobile Phone IC
Enhanced Device Compatibility and Longevity
Engineered for compatibility with a wide range of mobile devices, the MAX 77804 ensures greater operational longevity and reliability. Its robust design and advanced features make it a trusted solution for modern mobile phone applications. MAX 77804 Mobile Phone IC
The MAX77804 is a highly integrated System Power Management IC (PMIC) designed by Maxim Integrated (now part of Analog Devices). It is engineered specifically for high-performance mobile devices, such as smartphones and tablets, where space is at a premium and power efficiency is critical. MAX 77804 Mobile Phone IC
This IC is a multi-function “workhorse” that handles battery charging, power regulation, and signal routing, significantly reducing the PCB footprint compared to using discrete components.
Core Overview
The MAX77804 typically integrates a Switch-Mode Li-ion Battery Charger, multiple Low-Dropout Regulators (LDOs), high-efficiency Buck Converters, and a Fuel Gauge. Its primary goal is to manage power from the USB port or battery and distribute it safely to the Application Processor (AP), memory, and peripherals.
Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Maxim Integrated / Analog Devices |
| Package Type | WLP (Wafer-Level Package) / BGA |
| Input Voltage Range | 4.1V to 5.85V (USB/VBUS Input) |
| Battery Voltage | Supports 1-Cell Li-ion / Li-Polymer (up to 4.5V) |
| Fast Charge Current | Programmable up to 2.0A – 3.0A (Typical) |
| Interface | I2C Serial Interface (High-Speed support) |
| Regulators | Multiple Buck Converters + Integrated LDOs |
| Efficiency | Up to 95% for DC-DC conversion |
| Safety Features | Thermal Shutdown, OVP, UVLO, JEITA Compliant charging |
| Special Features | Integrated Fuel Gauge, USB-OTG Support, MUIC (Micro-USB Interface Circuit) |
Key Functional Blocks
1. Switching Charger & USB Support
The MAX77804 features a high-efficiency switch-mode charger. Unlike linear chargers, it minimizes heat dissipation during high-current charging sessions. It often includes:
-
USB-OTG (On-The-Go): It can boost battery voltage to 5V to power external USB accessories (like flash drives or keyboards).
-
Adaptive Input Current Limit: Automatically adjusts the current drawn based on the capabilities of the power source.
2. Micro-USB Interface Circuit (MUIC)
The MUIC block is essential for detecting what is plugged into the phone. It uses resistance detection to distinguish between:
-
Standard Downstream Ports (SDP).
-
Dedicated Charging Ports (DCP).
-
MHL (Mobile High-Definition Link) cables for video output.
-
Factory UART cables used for software flashing and debugging.
3. Power Distribution (Bucks & LDOs)
The IC houses several DC-DC “Buck” converters that step down battery voltage to the low levels required by modern CPUs (often sub-1.0V). Additionally, high-PSRR (Power Supply Rejection Ratio) LDOs provide “clean,” noise-free power to sensitive components like the camera sensor and audio DAC.
4. Fuel Gauge & Monitoring
The integrated fuel gauge uses Maxim’s proprietary algorithms (like ModelGauge) to track the battery’s State of Charge (SoC). This eliminates the need for a sense resistor in some designs, improving efficiency and accuracy without requiring a full battery relearn cycle.
Application in Mobile Repair
In the context of mobile hardware repair (commonly seen in Samsung Galaxy devices of specific generations), the MAX77804 is often a “point of failure” for the following symptoms:
-
No Power / Dead Phone: If the primary PMIC or the MAX77804 (sub-PMIC) fails, the device cannot distribute power to the CPU.
-
Charging Issues: Fake charging (shows charging icon but percentage doesn’t rise) or “USB Device Not Recognized” errors.
-
Short Circuits: Overvoltage from a faulty charger can blow the internal protection MOSFETs of the IC. MAX 77804 Mobile Phone IC
Note: Replacing this chip requires advanced microsoldering skills, as the WLP/BGA package involves microscopic solder balls underneath the chip that must be perfectly aligned and “reflowed.” MAX 77804 Mobile Phone IC
Summary of Benefits
-
Space Saving: Consolidates 5-6 different functions into a single silicon die. MAX 77804 Mobile Phone IC
-
Thermal Management: Efficient switching architecture prevents the phone from overheating during “Fast Charge” cycles. MAX 77804 Mobile Phone IC
-
Accuracy: Precise voltage monitoring ensures the battery longevity is maximized by preventing overcharge. MAX 77804 Mobile Phone IC
