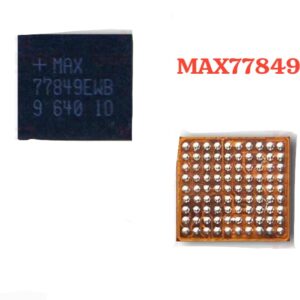

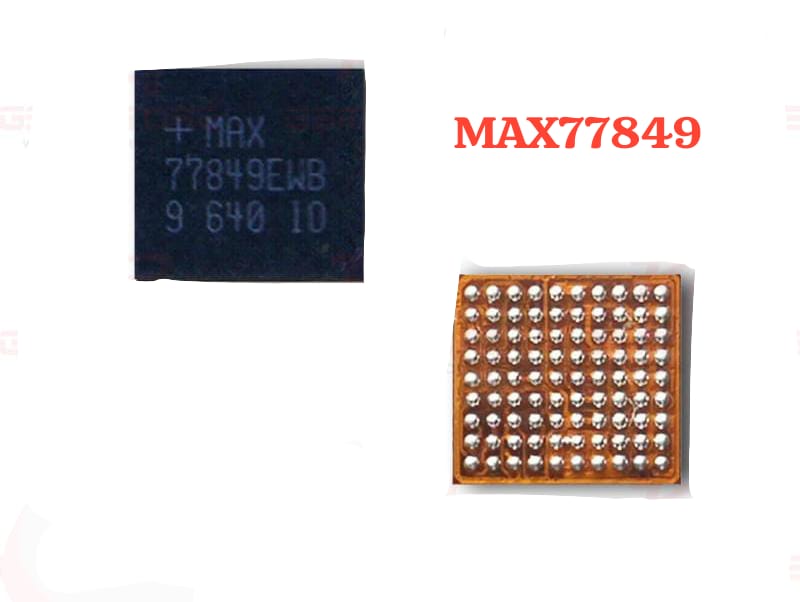

MAX 77849 Mobile Phone IC
Advanced Power Management Solution
The MAX 77849 Mobile Phone IC is designed to deliver a seamless and efficient power management experience for your mobile devices. Built with cutting-edge technology, it ensures optimal performance while extending battery life, making it the perfect choice for modern smartphones and other portable gadgets. MAX 77849 Mobile Phone IC
Compact and High-Performance Design
This Mobile Phone IC features a compact and lightweight design, enabling easy integration into compact device architectures. It supports multiple voltage regulators, precise power delivery, and thermal management, ensuring reliability in every use case. Industries relying on compact and efficient components will find the MAX 77849 indispensable. MAX 77849 Mobile Phone IC
Versatility and Dependability
Whether you’re developing smartphones, tablets, or wearable devices, the MAX 77849 IC adapts effortlessly to a wide range of applications. With its robust and dependable performance even in challenging environments, this IC continues to set the benchmark for quality and usability in power management solutions. MAX 77849 Mobile Phone IC
The MAX77849 is a specialized Power Management Integrated Circuit (PMIC), often referred to in the repair industry as a “Small Power IC” or “Charging IC.” It is a critical component primarily found in legacy flagship devices like the Samsung Galaxy Note 4, Samsung Galaxy S6, and the Galaxy Tab A 9.7. MAX 77849 Mobile Phone IC
Its primary role is to manage the power distribution for specific subsystems, particularly the charging circuitry and small-scale voltage regulation that larger primary PMICs don’t handle. MAX 77849 Mobile Phone IC
Technical Specifications: MAX77849
The following table outlines the technical parameters and physical characteristics of the MAX77849 IC.
| Feature | Specification |
| Model Number | MAX77849 / MAX77849EWB |
| Manufacturer | Maxim Integrated (now part of Analog Devices) |
| Function | Multi-function Power Management (PMIC) / Charging Controller |
| Package Type | WLP (Wafer Level Package) / BGA (Ball Grid Array) |
| Pin/Ball Count | Typically 42-balls (varies by specific sub-variant) |
| Input Voltage Range | 2.5V to 5.5V (Standard Li-ion operating range) |
| Charging Support | Switch-mode Battery Charger with I2C control |
| Communication | I2C Serial Interface (for voltage and current programming) |
| Supported Devices | Samsung Galaxy Note 4, S6, S6 Edge, Tab A 9.7 |
| Dimensions | Approx. 3.0mm x 2.8mm |
| Mounting Type | Surface Mount (SMD/SMT) |
| Operating Temperature | -40°C to +85°C |
Core Functionality
The MAX77849 isn’t just a simple regulator; it’s a sophisticated “sub-PMIC.” In modern smartphone architecture, power management is split across multiple chips to reduce heat and improve efficiency. MAX 77849 Mobile Phone IC
1. Battery Charging Management
The IC contains a highly efficient switch-mode charger. Unlike older linear chargers that dissipate excess energy as heat, the MAX77849 uses switching technology to convert high-voltage input (from a USB wall adapter) into the precise voltage needed for the battery with minimal energy loss. MAX 77849 Mobile Phone IC
2. Micro-USB Interface Controller (MUIC)
In devices like the Note 4, this IC often acts as the gatekeeper for the Micro-USB port. It detects what is plugged into the device (e.g., a standard charger, a fast charger, a computer, or an OTG cable) and configures the internal pathways accordingly. MAX 77849 Mobile Phone IC
3. Voltage Regulation (LDOs and Bucks)
It provides stable “rails” (power lines) for specific components such as:
-
The camera module.
-
Sensors (Gyroscope, Accelerometer).
-
Low-power wireless components.
Common Failure Symptoms
Because the MAX77849 handles charging and high-current paths, it is one of the most common points of failure in older Samsung devices. If this IC fails, the phone may exhibit:
-
No Charging: The phone detects the cable but the percentage never increases.
-
Fake Charging: The lightning bolt icon appears, but the battery level actually drops.
-
Overheating: The area near the SIM card slot (where the IC is often located) becomes extremely hot.
-
Dead Device: A short-circuit within the MAX77849 can pull the main system voltage ($V_{BAT}$ or $V_{SYS}$) to ground, preventing the phone from turning on entirely.
Repair and Installation Notes
Replacing a MAX77849 requires advanced micro-soldering skills. Because it is a BGA (Ball Grid Array) chip, the connections are underneath the component.
Technical Tip: When replacing this IC, technicians typically use a hot air rework station set between 330°C and 350°C. It is vital to use high-quality flux to ensure the solder balls “self-align” to the pads on the motherboard.
Replacement Steps:
-
Diagnosis: Use a DC Power Supply to check for “short-to-ground” on the capacitors surrounding the IC.
-
Removal: Apply flux and even heat until the IC can be lifted with tweezers without resistance.
-
Cleaning: Use a soldering wick and a flat-tip iron to clear the old lead-free solder from the motherboard pads.
-
Soldering: Place the new IC (ensure the “dot” or Pin 1 marker is oriented correctly) and heat until the chip “dances” or settles into place.
