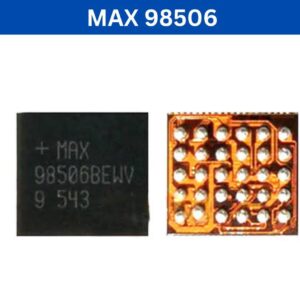

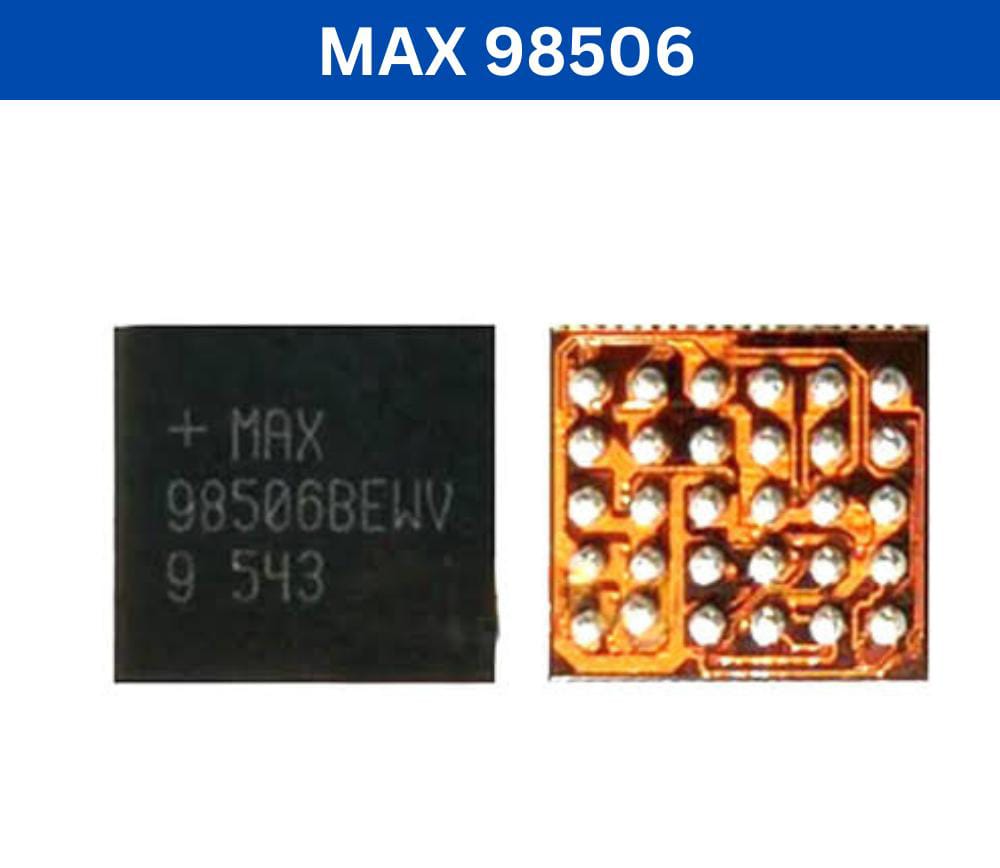

MAX 98506 Mobile Phone IC
High-Performance Mobile Phone IC
The MAX 98506 Mobile Phone IC is engineered to deliver exceptional audio and signal performance for mobile devices. Designed with precision, this IC ensures seamless integration into your phone’s system, optimizing efficiency without compromising quality. MAX 98506 Mobile Phone IC
Built for Reliability and Efficiency
The MAX 98506 is crafted with advanced technology to enhance power efficiency and audio clarity. It’s an ideal choice for mobile manufacturers looking for reliable and energy-efficient solutions in designing next-gen devices. MAX 98506 Mobile Phone IC
Seamless Compatibility
This IC is highly compatible with a variety of mobile devices, making it a versatile component for all your mobile development needs. Whether you’re upgrading or creating from scratch, the MAX 98506 is your go-to solution for superior performance and sustainability. MAX 98506 Mobile Phone IC
The MAX98506 (specifically the MAX98506BEWV+T) is a high-performance integrated circuit (IC) primarily utilized in modern smartphones, most notably within the Samsung Galaxy S7 and S8 series. While often categorized as a “charging IC” in secondary repair markets, its technical architecture identifies it as a sophisticated Class D Audio Amplifier with integrated power management features designed for mobile devices. MAX 98506 Mobile Phone IC
Below are the comprehensive specifications and technical details for the MAX98506. MAX 98506 Mobile Phone IC
MAX98506 Core Specifications
| Parameter | Specification / Value |
| Manufacturer | Maxim Integrated (now part of Analog Devices) |
| Part Number | MAX98506BEWV+T |
| Primary Function | Class D Audio Power Amplifier |
| Common Application | Charging and Audio subsystem (Samsung S7/S8) |
| Package Type | WLP (Wafer Level Package) / SMD |
| Pin Count | 30-ball WLP |
| Supply Voltage Range | Typically $2.5\text{V}$ to $5.5\text{V}$ |
| Operating Temperature | $-40\text{°C}$ to $+85\text{°C}$ (Extended Range) |
| Interface Control | $I^2C$ Serial Interface |
| Digital Audio Support | $I^2S$, Left-Justified, TDM |
Technical Features & Performance
The MAX98506 is designed to provide high-efficiency audio output while minimizing the footprint on a crowded mobile PCB.
1. Audio Performance
-
Efficiency: As a Class D amplifier, it offers significantly higher efficiency (often >85%) compared to traditional Class AB amplifiers, which is critical for extending smartphone battery life.
-
Boost Converter: The IC often includes an integrated boost converter that steps up the battery voltage to allow for higher power output to the speaker without clipping, even when the battery is low.
-
Total Harmonic Distortion (THD+N): Typically maintains low distortion levels (approx. $0.05\%$) to ensure high-fidelity sound in small speaker modules.
2. Protection Mechanisms
The IC is equipped with robust internal protection to prevent hardware failure in the demanding mobile environment:
-
Thermal Foldback: Automatically reduces volume if the chip temperature exceeds safety thresholds.
-
Short-Circuit Protection: Prevents damage if the speaker leads are shorted.
-
Over-Voltage/Under-Voltage Lockout (UVLO): Ensures the chip only operates within safe voltage parameters.
3. Integrated Power Management
In many Samsung schematics, the MAX98506 works in tandem with the primary Power Management IC (PMIC). Because it handles high-current paths for the speaker and is connected to the $V_{BATT}$ (Battery Voltage) rail, it is frequently involved in the device’s charging and power distribution logic, leading many technicians to refer to it as a “Charging/Power IC.”
Physical and Mechanical Properties
| Feature | Detail |
| Dimensions | Approx. $2.1\text{mm} \times 2.5\text{mm}$ (Variable by batch) |
| Mounting Style | Surface Mount (BGA/WLP) |
| Lead-Free Status | RoHS Compliant / Lead-Free |
| Moisture Sensitivity | MSL1 (Unlimited floor life) |
Common Use Cases and Repair Context
The MAX98506 is a “Special Use” IC. Unlike general-purpose regulators, it is programmed and tuned for specific mobile architectures.
-
Failure Symptoms: If this IC fails, the phone may experience “No Sound” from the loudspeaker, excessive heat near the CPU/Power section, or a “Greyed out” volume bar. In some cases, a short within this IC can prevent the phone from booting entirely or cause charging errors.
-
Installation: Due to its 30-ball WLP (Wafer Level Package) design, replacement requires professional SMD soldering tools, specifically a hot air rework station and high-quality flux, as the balls are extremely small and susceptible to bridging.
