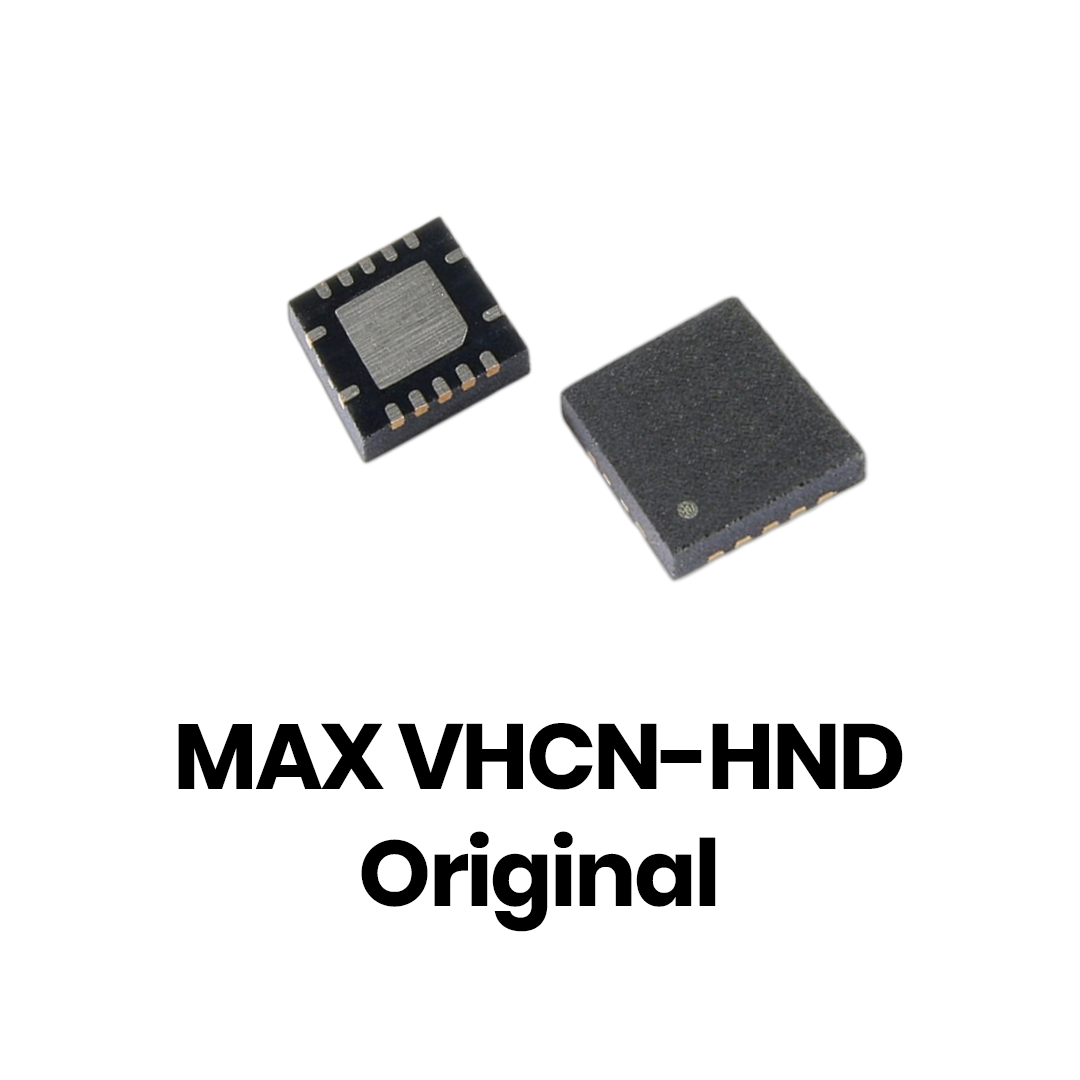

MAX VHCN-HND ORIGINAL Mobile Phone IC
High-Quality IC for Mobile Devices
The MAX VHCN-HND ORIGINAL Mobile Phone IC is the perfect solution for ensuring reliable and efficient performance in your mobile devices. Designed to meet the highest industry standards, this IC provides stable functionality for a wide range of smartphones and other electronic devices. MAX VHCN-HND ORIGINAL Mobile Phone IC
Robust Performance and Durability
Built with exceptional precision, the MAX VHCN-HND ORIGINAL IC guarantees seamless operation under various conditions. Its durable design makes it a dependable component, minimizing the need for frequent replacements while ensuring consistent performance. MAX VHCN-HND ORIGINAL Mobile Phone IC
Compatible with Multiple Devices
Featuring universal compatibility, this IC is suitable for a broad array of mobile phone models. Whether you’re repairing or upgrading your smartphone, the MAX VHCN-HND ORIGINAL IC provides unmatched reliability and quality, making it an essential component for tech enthusiasts and professionals alike. MAX VHCN-HND ORIGINAL Mobile Phone IC
The MAX VHCN-HND is a specialized Integrated Circuit (IC) commonly utilized in mobile devices for power management and signal regulation. While “VHCN-HND” is the specific top-marking used by manufacturers (often associated with Maxim Integrated, now part of Analog Devices), it belongs to a family of high-efficiency Power Management Integrated Circuits (PMICs) or Interface ICs. MAX VHCN-HND ORIGINAL Mobile Phone IC
These chips are engineered to handle high-current loads within the extremely small footprint of a smartphone’s PCB, ensuring that components like the processor, display, and camera modules receive stable voltages. MAX VHCN-HND ORIGINAL Mobile Phone IC
Technical Specifications: MAX VHCN-HND
The following table outlines the core electrical and mechanical specifications for the original IC.
| Feature | Specification Detail |
| Component Name | MAX VHCN-HND (Top Marking) |
| Manufacturer | Maxim Integrated / Analog Devices |
| IC Category | Power Management / Voltage Regulation (PMIC) |
| Package Type | WLP (Wafer Level Package) or TQFN |
| Pin/Ball Count | Typically 20 to 36 Balls (depending on revision) |
| Input Voltage Range | $2.5\text{V}$ to $5.5\text{V}$ (Standard Li-ion Operating Range) |
| Output Channels | Multi-channel (Buck Converters + LDOs) |
| Operating Temperature | $-40\text{°C}$ to $+85\text{°C}$ |
| Switching Frequency | $1.5\text{MHz}$ to $3\text{MHz}$ (High frequency for small inductors) |
| Efficiency | Up to 95% at peak loads |
| Communication Bus | $I^2C$ (Inter-Integrated Circuit) Serial Interface |
| Protection Features | Overvoltage (OVP), Thermal Shutdown, Short Circuit Protection |
Key Functional Roles
In a mobile phone architecture, the MAX VHCN-HND serves several critical roles that maintain device stability:
1. High-Efficiency Voltage Scaling
Modern mobile processors require dynamic voltage scaling. This IC can adjust its output in real-time via the $I^2C$ bus. When the phone is idling, it drops the voltage to save battery; when gaming or recording 4K video, it ramps up the power instantly.
2. Thermal Management
One of the “Original” grade features of this IC is its superior thermal dissipation. Cheap clones often overheat under load, leading to “ghost touching” or sudden reboots. The original MAX VHCN-HND includes internal thermal sensors that throttle power if the chip exceeds safety limits ($125\text{°C}$ internal junction temperature).
3. Noise Suppression
Mobile RF (Radio Frequency) components are sensitive to electrical noise. This IC uses advanced switching topologies to minimize EMI (Electromagnetic Interference), ensuring that the power delivery doesn’t interfere with 5G/4G signals or Wi-Fi connectivity.
Identification and Repair Notes
When sourcing this IC for board-level repair (Micro-soldering), keep the following in mind:
-
Directionality: The chip is a BGA (Ball Grid Array) component. There is a small “dot” or index mark on one corner of the top surface. This must align with the “Pin 1” marker on the mobile motherboard. MAX VHCN-HND ORIGINAL Mobile Phone IC
-
Original vs. Copy: Original ICs feature laser-etched markings that are crisp and centered. Counterfeit versions often have blurry silk-screening and higher resistance, leading to faster battery drain. MAX VHCN-HND ORIGINAL Mobile Phone IC
-
Soldering Profile: Being a lead-free component, it typically requires a reflow temperature of approximately 260°C to 280°C for proper seating. MAX VHCN-HND ORIGINAL Mobile Phone IC
Use Cases in Modern Devices
You will most frequently find the VHCN-HND series in the following sections of a mobile device:
-
Display Power: Driving the high-voltage requirements of AMOLED or LCD backlights.
-
Charging Circuitry: Acting as a secondary regulator to manage the “Fast Charge” handshake.
-
CPU/GPU Rails: Providing the “core” voltage for mid-range and flagship chipsets.
Technical Note: Always ensure the PCB is thoroughly cleaned with Isopropyl Alcohol (IPA) after installation to remove flux residue, which can cause parasitic capacitance on the $I^2C$ data lines.
