Mobile Phone IC For 77912-61 Original

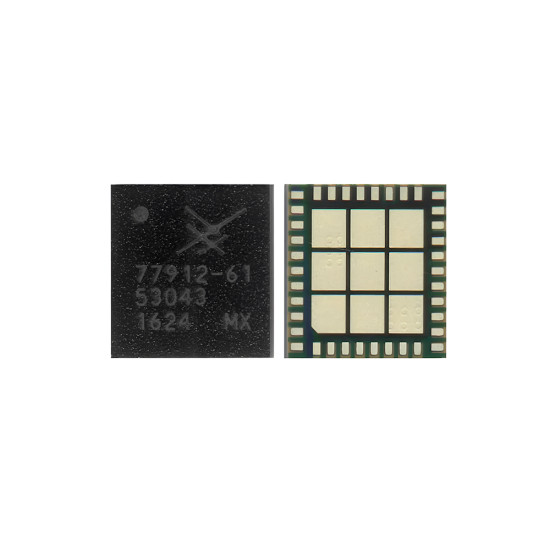

The SKY77912-61 is a high-performance Transmit-Receive (Tx-Rx) Front-End Module (FEM) manufactured by Skyworks Solutions. Designed for advanced cellular handsets, it serves as a complete signal management solution, integrating power amplifiers and high-speed switching capabilities to handle multiple network standards from GSM to TDD LTE.

This IC is a common fixture in the repair industry, particularly for fixing “No Service” or signal stability issues in popular mid-range devices from Xiaomi, Oppo, and Redmi.

---

Technical Specifications: SKY77912-61

Feature	Specification Detail
Model Number	SKY77912-61 (77912-61)
Manufacturer	Skyworks Solutions, Inc.
Component Type	RF Tx-Rx Front-End Module (FEM)
Network Support	Quad-Band GSM/GPRS/EDGE, Dual-Band TD-SCDMA, TDD LTE
LTE Band Support	Specifically optimized for LTE Band 39
Switch Ports	10 Linear TRx (Transmit/Receive) Antenna Switch Ports
Package Type	WLCSP / MCM (Multi-Chip Module)
Dimensions	5.5 mm x 5.3 mm x 0.8 mm (Max)
Interface	MIPI® RFFE Control (dual-standard support)
Power Technology	GaAs HBT (Gallium Arsenide Heterojunction Bipolar Transistor)
Integrated Features	Directional Coupler, Noise Suppression Filter, ESD Protection

---

Core Functional Roles

The SKY77912-61 acts as the “traffic controller” for your phone’s radio signals. It is engineered to simplify the complex RF paths required by modern multi-band devices.

1. Multi-Mode Power Amplification

The module contains separate blocks for Low Band (LB) and High Band (HB) amplification. The LB block handles GSM850/900, while the HB block is tuned for DCS, PCS, TD-SCDMA (Bands 34/39), and TDD LTE (Band 39). These blocks use GaAs HBT technology, which is highly efficient and provides excellent linearity for 4G data.

2. Advanced Antenna Switching

With ten integrated TRx ports, this IC can route signals to multiple antennas. This is critical for modern phones that use antenna diversity to maintain a stable 4G connection in weak signal areas. The switching logic is controlled via the MIPI RFFE interface, allowing the phone’s modem to change bands in milliseconds.

3. WiFi Coexistence

A specialized noise suppression notch filter is built into the chip. This prevents the high-power cellular transmissions from interfering with the phone’s WiFi and Bluetooth signals, ensuring you can browse the web over WiFi while simultaneously maintaining a cellular standby connection.

---

Compatibility and Common Repairs

This IC is a frequent “replacement part” in repair shops because it is often the first component to fail during an electrical surge or water damage to the antenna section.

• Commonly Supported Devices:

  • Xiaomi: Redmi 5A, 6A, Note 4X, Redmi Note 8.

  • Oppo: A9 (2020), A91.

  • Other: Various Qualcomm Snapdragon-based mid-range handsets.

• Signs of Failure:

  • “No Service” or Emergency Calls Only: Even with a valid SIM, the phone fails to register on any network.

  • Signal Dropping: The phone has bars when outside but drops to “Searching” as soon as you enter a building.

  • Hardware ID Missing: In some cases, a damaged front-end module can prevent the modem from initializing correctly during boot.

---

Professional Repair and Installation Notes

The SKY77912-61 is a Land Grid Array (LGA) or MCM package, meaning the pads are on the bottom. It requires precision micro-soldering.

1. Thermal Management: Use a hot air station set to 330°C – 345°C. Because this is a relatively large module with an integrated GaAs die, excessive heat can cause internal delamination.

2. Internal Matching: The RF ports are internally matched to 50 ohms. When replacing, ensure there are no solder bridges between the signal pads and ground pads, as this will result in a complete loss of transmission power.

3. MIPI Logic: If a new chip is installed but the phone still shows “No Service,” check the MIPI RFFE clock and data lines. If these logic lines are disrupted, the chip cannot “talk” to the modem.
