Mobile Phone IC For BQ24196 Original
The BQ24196 is a highly integrated switch-mode battery charge management and system power path management device. It is designed specifically for high-capacity single-cell Li-Ion and Li-polymer batteries used in smartphones, tablets, and portable media devices.
This IC is a “Heavy Lifter” in mobile architecture. It doesn’t just charge the battery; it manages the entire power relationship between the USB input, the battery, and the system rails. It is widely known for its high efficiency and ability to handle high charging currents (up to 4.5A) with minimal heat generation.
Technical Specifications: BQ24196
| Feature | Specification Detail |
| Manufacturer | Texas Instruments (TI) |
| Component Type | $I^2C$ Controlled 4.5A Single Cell USB/Adapter Charger |
| Input Voltage ($V_{IN}$) | 3.9V to 17V (Operating Range) |
| Max Charge Current | 4.5A (Programmable via $I^2C$) |
| Switching Frequency | 1.5MHz (Synchronous Buck Converter) |
| USB Support | USB 2.0 and USB 3.0 Tiered Input Limits |
| USB OTG Support | Boost Mode: 5.1V at 1.3A (from Battery) |
| Efficiency | 92% at 2A Charge Current |
| Package Type | 24-pin VQFN ($4.00\text{mm} \times 4.00\text{mm}$) |
| Interface | $I^2C$ (Standard/Fast Mode up to 400kbps) |
| Protections | Thermal, OVP, OCP, Safety Timers, JEITA Support |
Core Functional Pillars
The BQ24196 is defined by its Power Path Management and High Efficiency Buck Conversion.
1. Narrow VDC (NVDC) Power Path Management
The BQ24196 uses an NVDC architecture. This means the system is regulated at a voltage slightly above the battery voltage but doesn’t drop below a minimum system voltage (typically 3.5V).
-
Instant On: Even if the battery is completely flat (0%), the device can boot up instantly as soon as a charger is connected, because the system power is prioritized.
-
Supplement Mode: If the system requires more current than the USB input can provide, the IC automatically draws the extra power from the battery to prevent a system crash.
2. High-Efficiency Synchronous Buck
Because it operates at 1.5MHz, the IC can use small inductors and capacitors, saving space on the mobile motherboard. Its synchronous rectification ensures that even when charging at 4A, the heat is distributed efficiently, preventing the “hot spot” often felt near the charging port of a phone.
3. USB OTG Boost Mode
When you plug a thumb drive or mouse into your phone, the BQ24196 reverses its operation. It takes the 3.7V from the battery and “boosts” it to a stable 5.1V to power the external USB device. It can provide up to 1.3A, enough to power external hard drives.
Common Failure Symptoms
The BQ24196 is a common point of failure because it is directly exposed to the external “world” via the USB port.
-
“Plugged in, Not Charging”: The phone detects the cable but the percentage never increases. This often indicates the internal MOSFETs of the BQ24196 have failed.
-
No Power / Total Dead: A short circuit in the BQ24196 can ground the VPH_PWR (Main System Rail), preventing the phone from turning on even with a charged battery.
-
Slow Charging: If the $I^2C$ communication line is damaged, the IC defaults to a safe 500mA limit, regardless of how powerful the wall adapter is.
-
USB OTG Not Working: The phone functions normally but cannot “see” any USB accessories.
Professional Repair & Handling

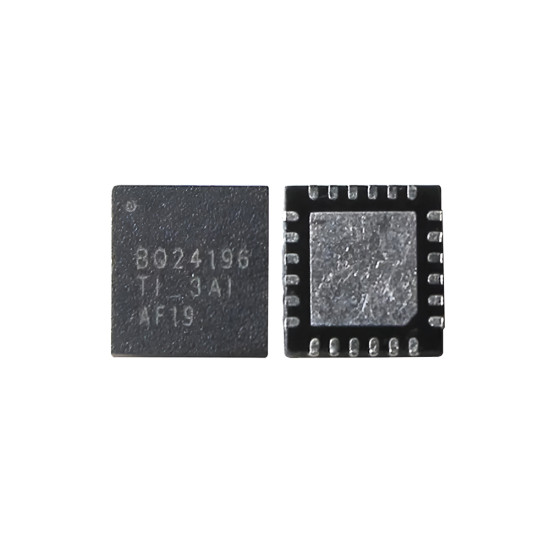

The BQ24196 is a VQFN-24 package with a large central Thermal Pad.
-
Thermal Pad Soldering: The large pad in the center must be perfectly soldered to the motherboard. This pad is not just for Ground; it is the primary way the chip dissipates heat. Without a good bond here, the chip will burn out within minutes of high-speed charging.
-
Heat Profile: Use a hot air station set to 340°C – 350°C. Because it is a lead-free component on a dense board, pre-heating the surrounding area is recommended.
-
Surrounding Components: Pay close attention to the Sense Resistor and the Power Inductor (usually a large grey square component) next to the IC. If these are cracked or have cold solder joints, the BQ24196 will not function correctly.
