Mobile Phone IC For S525 Original
The Samsung S525 (marketed as the Wave 525 or GT-S5250) is a classic entry-level smartphone from the “Bada OS” era. In the world of mobile repair and engineering, the term “S525 IC” often refers to a specific power management component found in much newer devices (like the Samsung Galaxy S7 or S20), but the original Wave 525 utilizes a specialized integrated power architecture suited for its Broadcom platform.
Below is the technical specification breakdown for the Samsung Wave 525 in a comprehensive tabular format.
Samsung Wave 525 (S5250) Technical Specifications
| Category | Specification Details |
| Model Name | Samsung Wave 525 / GT-S5250 |
| Release Date | October 2010 |
| Operating System | bada OS 1.1 with TouchWiz UI 3.0 |
| Hardware Platform | Broadcom BCM21334 |
| Processor (CPU) | 312 MHz ARM9 |
| Display Type | 3.2-inch WQVGA TFT Capacitive Touchscreen |
| Display Resolution | 240 x 400 pixels (~146 ppi density) |
| Internal Memory | 100 MB User Accessible |
| RAM | 256 MB |
| External Storage | microSDHC slot (expandable up to 16 GB or 32 GB) |
| Battery Type | Removable Li-Ion 1200 mAh |
| Talk Time | Up to 14 hours |
| Standby Time | Up to 1200 hours |
| Network Support | GSM 850 / 900 / 1800 / 1900 (2G Only) |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 3.0, A-GPS |
| USB Interface | microUSB 2.0 |
| Main Camera | 3.15 MP (2048 x 1536 pixels) |
| Video Recording | QVGA @ 15fps |
| Dimensions | 109.5 x 55 x 11.9 mm |
| Weight | 100 g (3.53 oz) |
Power Management and IC Insights

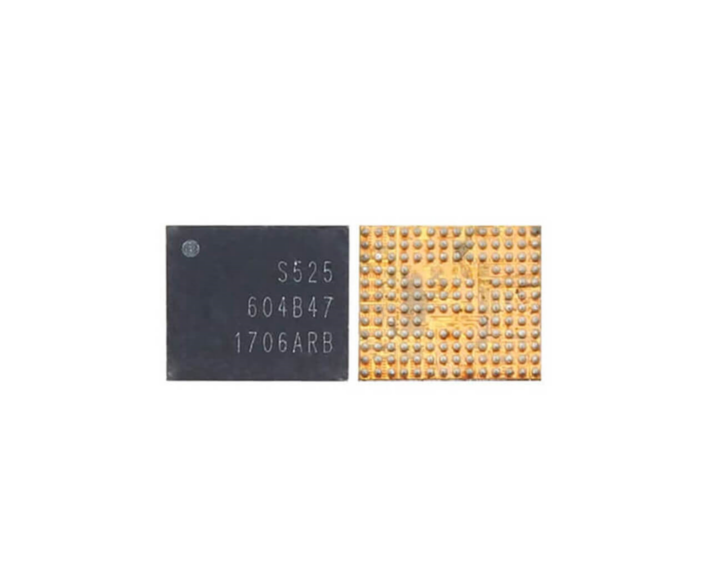

The “S525” identifier is frequently searched in current mobile repair contexts because of a high-density S525 Power IC used in modern Samsung flagships. It is important to distinguish between the vintage phone and the contemporary component.
1. The Modern S525 Power IC
In current technical manuals (for the Samsung Galaxy S20, S7 Edge, and A21s), the S525 IC is a small-form-factor Power Management Integrated Circuit (PMIC).
-
Function: It serves as a secondary power supply regulator or a “Small PMIC” that handles specific voltage rails for the display or USB charging logic.
-
Repair Note: When troubleshooting a device like a Samsung S20 that won’t charge or has a “dead” display, technicians often replace this S525 chip using BGA (Ball Grid Array) soldering techniques.
2. The Original Wave 525 IC Architecture
The original 2010 Wave 525 relies on the Broadcom BCM21334 chipset.
-
Power Sequencing: Because the device only supports 2G (EDGE), its power requirements are significantly lower than modern 5G devices.
-
Charging: It uses a standard microUSB 5V input, managed by a dedicated charging IC that regulates the 1200 mAh Li-ion cell.
-
Audio/Display: Integrated drivers within the Broadcom baseband handle the 3.2-inch TFT display and the 3.5mm audio jack output.
Common Repair Scenarios
-
Charging Issues: Often caused by a worn-out microUSB port rather than the IC itself.
-
Battery Drain: Due to the age of these devices, the 1200 mAh Li-ion batteries frequently require replacement to restore the original 14-hour talk time.
-
Display Failures: The 240×400 TFT panel is a separate module connected via a ribbon cable to the main PCB.
