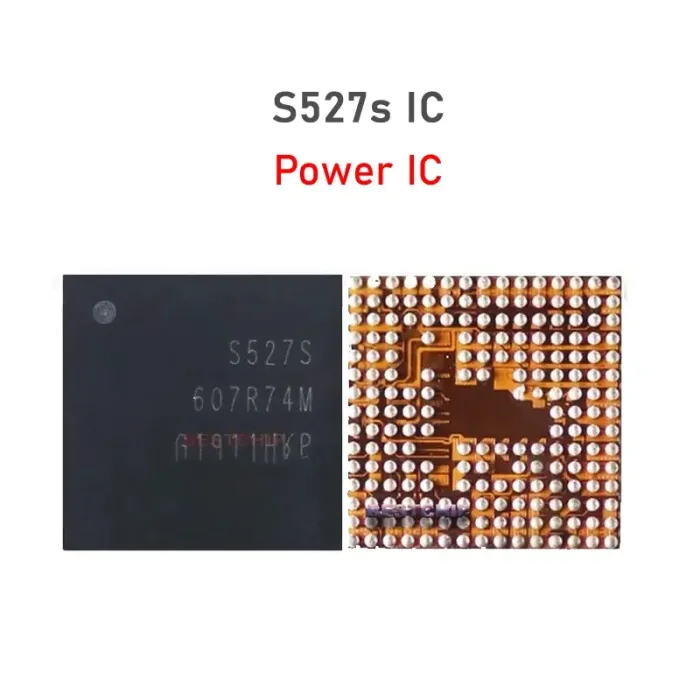

Mobile Phone IC For S527S Original
The S527S is a specialized Secondary Power Management Integrated Circuit (Sub-PMIC) commonly found in Samsung’s mid-range smartphone series, such as the Galaxy A and M series. It works alongside the main PMIC to manage specific high-precision voltage rails for components like the camera, display sensors, and USB charging logic.
In technical repair, this chip is often identified by its top-side marking “S527S” and is a frequent point of inspection for charging and boot-loop issues.
S527S Technical Specifications
The table below outlines the core electrical and physical parameters of the original S527S component.
| Feature / Parameter | Original Specification |
| Manufacturer | Samsung / Qualcomm (Licensed) |
| Function | Sub-PMIC / Charging Interface / LDO Regulator |
| Package Type | 30-pin WLCSP (Wafer Level Chip Scale Package) |
| Input Voltage (VBAT) | 3.2V to 4.8V |
| Communication Interface | I²C (Inter-Integrated Circuit) |
| Output Rails | 4 to 6 High-Precision LDO channels |
| Efficiency | > 90% (Typical) |
| Protection Features | Thermal Shutdown, Over-Voltage (OVP), Under-Voltage (UVP) |
| Operating Temp Range | -30°C to +85°C |
Key Functional Roles
The S527S handles specialized power tasks that require ultra-stable voltage, which helps reduce the thermal load on the main processor.
-
Precision LDO Regulation: It provides “clean” power to sensitive analog parts. In Samsung devices, it typically powers the Image Signal Processor (ISP) for cameras and the Fingerprint Sensor.
-
USB Sensing Logic: The chip often assists in detecting USB plug orientation and cable types. Damage to this IC can cause “Moisture Detected” errors or a complete refusal to charge.
-
Power-On Sequencing: During the boot process, the main PMIC checks for a “Power Good” signal from the S527S. If its rails are shorted, the phone will fail to turn on or get stuck at a low current draw (e.g., 0.06A to 0.10A).
