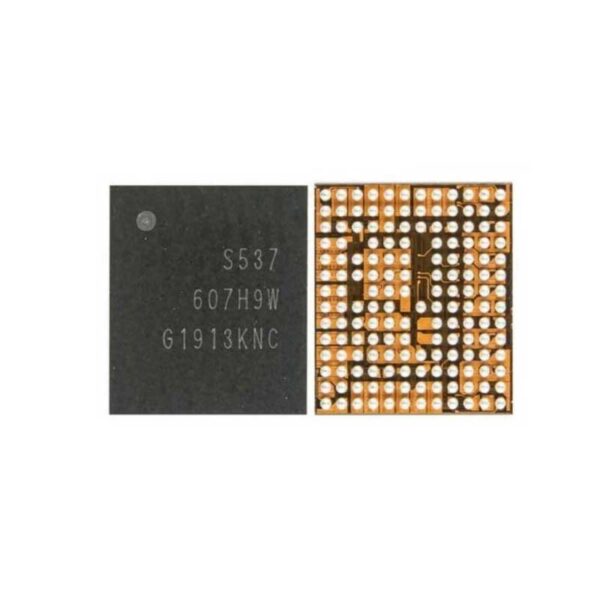

Mobile Phone IC For S537 Original
The S537 Power IC (often identified as the S2MPU09X01) is a critical Power Management Integrated Circuit (PMIC) used extensively in Samsung’s mid-to-high-end smartphones. As the “brain” of the power system, it is responsible for voltage regulation, battery charging sequences, and distributing precise current to the CPU, GPU, and memory modules.
Below are the original technical specifications and a comprehensive breakdown of its role in mobile hardware.
Technical Specifications: S537 Power IC
| Feature | Specification Detail |
| Model Number | S537 (Alternate PN: S2MPU09X01) |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Compatible Brands | Samsung Galaxy (Primary), Select Motorola/Oppo models |
| Pin Configuration | 40-Pin BGA (Ball Grid Array) |
| Package Type | SMD (Surface Mount Device) |
| Input Voltage Range | $3.4\text{V} \text{ to } 4.5\text{V}$ (Typical battery operating range) |
| Output Rails | 6+ programmable outputs (Buck converters and LDOs) |
| Core Functions | DC-DC Conversion, LDO Regulation, Logic Power Sequencing |
| Thermal Protection | Integrated thermal shutdown at $150\degree\text{C}$ |
| Operating Temp | $-20\degree\text{C} \text{ to } +85\degree\text{C}$ |
| Manufacturing Process | High-precision Silicon Semiconductor |
Supported Device List
The S537 is a versatile chip found in several of the most popular Samsung devices from the 2019–2021 era.
-
Galaxy A Series: A10, A20, A30, A30s, A40, A50, A50s, A51, A60, A70, A71.
-
Galaxy S Series: S10, S10 Plus, S10e (Secondary power management).
-
Galaxy M Series: M21, M30s, M31, M51.
Functional Overview
The S537 IC acts as the primary governor for the device’s electrical health. Its original design incorporates several advanced power logic layers:
1. Power Sequencing
When you press the power button, the S537 follows a “Power-Up Sequence.” It wakes the CPU first, then provides the “Power Good” signal to the RAM, ensuring that high-voltage spikes do not damage sensitive 7nm or 10nm processor architectures.
2. Voltage Regulation (Buck & LDO)
The chip contains high-efficiency Buck Converters that step down battery voltage for power-hungry components like the processor, and LDO (Low-Dropout) Regulators for noise-sensitive components like the camera sensor and audio DAC.
3. Intelligent Charging & Battery Safety
It monitors the battery’s thermistor (temperature sensor). If the device gets too hot during Fast Charging, the S537 throttles the current to prevent lithium-ion swelling or combustion.
Signs of a Defective S537 IC
In the repair industry, the S537 is frequently replaced due to its heavy workload. Common symptoms of a “blown” S537 include:
-
Dead Phone (No Power): The phone shows 0.00A or a very low, stuck current (e.g., 0.06A) on a USB power meter.
-
Charging Failure: The phone detects the cable but the percentage never increases, or it displays a “Temperature too low/high” error.
-
Short Circuits: Localized heating near the PMIC area (usually under a metal shield near the battery connector).
-
Sudden Shutdowns: The phone restarts or dies instantly when high-demand apps (like the camera) are opened.
Installation & Repair Notes
Because the S537 is a BGA (Ball Grid Array) chip, it requires professional tools for replacement:
-
Heat Profile: Use a hot air station set to approximately 330°C–350°C with medium airflow to desolder.
-
Reballing: Original S537 chips come “pre-balled” with lead-free solder. Technicians often prefer using $183\degree\text{C}$ leaded solder paste for easier installation.
-
Orientation: The “Pin 1” marker (usually a small dot or triangle) must align perfectly with the motherboard silk-screen markings to avoid a dead short.
Note: The S537 is often paired with the SM5713 (Small Power/Charging IC). If replacing the S537 does not fix power issues, the SM5713 is usually the next component to inspect.
