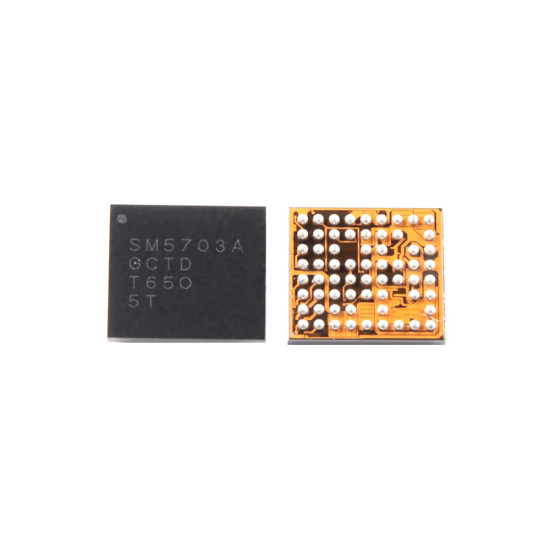

Mobile Phone IC For SM5703A Original
The SM5703A is a specialized, multi-functional Power Management Integrated Circuit (PMIC) designed by Silicon Mitus, primarily for Samsung’s mobile device ecosystem. Often categorized by technicians as a “Sub-PMIC” or “Charging IC,” it handles critical auxiliary power tasks that the main PMIC offloads to maintain thermal efficiency.
It is most notably found in the Samsung Galaxy S6, S6 Edge, S7, S7 Edge, and several Note series models. Below is the technical specification breakdown and a detailed look at its role in mobile hardware.
Technical Specifications: SM5703A
| Feature | Specification Detail |
| Model Number | SM5703A |
| Manufacturer | Silicon Mitus |
| Component Type | Secondary PMIC / Battery Charger / MUIC |
| Package Type | BGA (Ball Grid Array) |
| Pin Configuration | 30-Pin Micro-BGA |
| Input Voltage ($V_{BUS}$) | $3.8\text{V} \text{ to } 5.2\text{V}$ (Standard USB range) |
| Max Charging Current | $2.0\text{A}$ (Supports Adaptive Fast Charging) |
| Output Rails | Integrated Buck Converters and LDOs |
| Functions | Battery Charging, USB Path Control, Display Bias |
| Operating Temp | $-40\degree\text{C} \text{ to } +125\degree\text{C}$ |
| Safety Logic | Integrated Over-Voltage Protection (OVP) |
Core Functional Roles
The SM5703A is an “all-in-one” peripheral controller. Its architecture is divided into three main operational blocks:
1. Switching Battery Charger
The SM5703A manages the Switch-Mode Battery Charger (SMBC). It takes the $5\text{V}$ input from the micro-USB or USB-C port and steps it down efficiently to the battery voltage (approx. $4.2\text{V} – 4.4\text{V}$). Because it uses a switching regulator rather than a linear one, it generates significantly less heat during the charging process, allowing for the “Fast Charging” speeds Samsung is known for.
2. MUIC (Micro-USB Interface Controller)
This IC acts as the “gatekeeper” for the charging port. It identifies what is plugged into the phone—whether it’s a standard wall charger, a computer USB port, or an OTG (On-The-Go) accessory. It manages the USB D+/D- lines to negotiate power delivery and data transfer speeds.
3. Display Bias Power
For many Galaxy models, the SM5703A is responsible for providing the Display Bias voltages. OLED screens require specific positive and negative voltage rails (typically $+4.6\text{V}$ and $-4.4\text{V}$) to illuminate the pixels. Without a functional SM5703A, the screen may remain completely black even if the rest of the phone is powered on.
Common Symptoms of Failure
Because the SM5703A is directly connected to the external charging port, it is highly susceptible to damage from voltage spikes, liquid ingress, or non-original chargers.
-
Fake Charging: The phone shows the lightning bolt icon but the battery percentage never increases, or it actually decreases while plugged in.
-
No Power (Dead): If the IC develops an internal short to ground, it can pull down the main battery rail ($V_{BAT}$), preventing the phone from booting.
-
USB Recognition Issues: The phone charges but is not recognized by a PC for data transfer.
-
Backlight/Graphics Failure: If the Display Bias section of the chip fails, you will have a “Black Screen” where the phone vibrates and rings, but shows no image.
Repair and Installation Notes
The SM5703A is a BGA (Ball Grid Array) chip, which means the connections are underneath the silicon. It requires professional micro-soldering equipment to replace.
-
Heat Sensitivity: Use a hot air station set to approximately $340\degree\text{C} – 350\degree\text{C}$ for removal. Excessive heat can delaminate the thin PCB of older Galaxy models.
-
Alignment: Pay close attention to the Pin 1 dot on the corner of the IC. Installing it in the wrong orientation will cause an immediate short circuit.
-
Cleaning: Ensure all old solder is wicked away from the motherboard pads to ensure the new chip sits perfectly flat.
