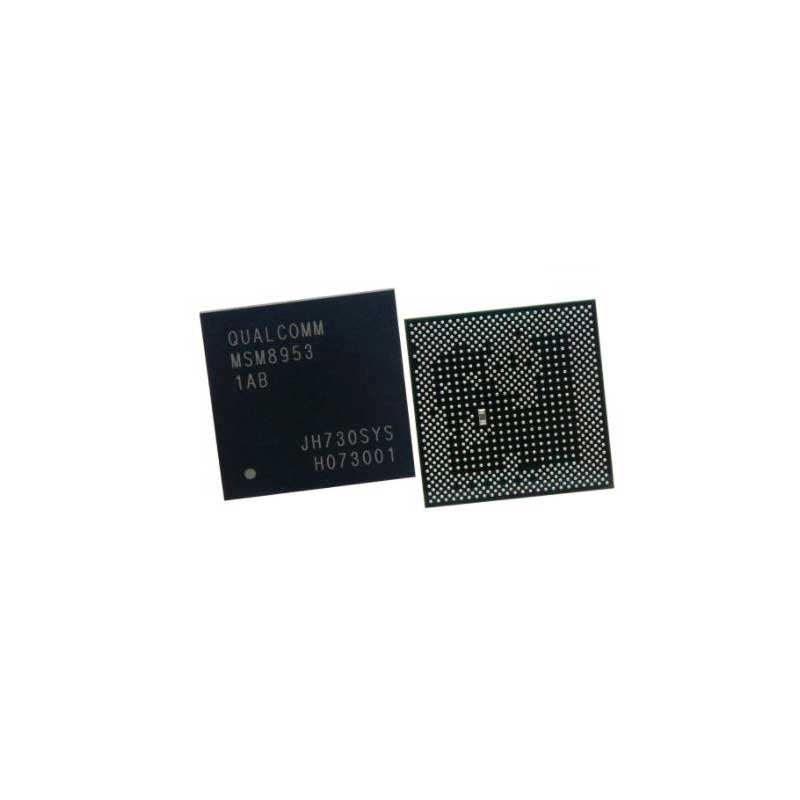

MSM 8953 B01-AB CPU Mobile Phone IC
Unleash the Power of Mobile Computing
The MSM 8953 B01-AB CPU Mobile Phone IC is a cutting-edge processor designed to optimize the performance of modern smartphones. Engineered for efficiency, it delivers seamless functionality, high-speed data processing, and superior energy management, making it a perfect choice for mobile devices demanding top-tier performance. Whether it’s for gaming, multitasking, or running resource-intensive applications, this intelligent processor stands out with its robust capabilities.
Exceptional Energy Efficiency
Built with an advanced architecture, the MSM 8953 B01-AB CPU ensures efficient power consumption without compromising on performance. Smartphones equipped with this IC can deliver extended battery life, allowing users to stay connected and productive longer. This energy-efficient design also makes the processor ideal for eco-conscious manufacturers looking to reduce power usage while maintaining high-quality performance standards. MSM 8953 B01-AB CPU Mobile Phone IC
Seamless Integration and Compatibility
The MSM 8953 B01-AB CPU is designed to integrate effortlessly into a wide range of mobile phones, supporting multiple functionalities and enhancing device performance. It boasts compatibility with various mobile operating systems, ensuring smooth, uninterrupted interactions for users. This processor supports superior connectivity, faster load times, and high-quality graphics display, elevating the overall smartphone experience.
Reliable Performance in Every Application
From delivering sharp visuals to managing complex applications, the MSM 8953 B01-AB CPU Mobile Phone IC guarantees reliable and consistent performance. Its exceptional processing speed and innovative features enable developers to design faster, smarter, and more adaptive mobile devices. Choose MSM 8953 B01-AB for your smartphone production needs and experience the difference it can make in delivering top-of-the-line performance and user satisfaction.
The MSM8953, commercially known as the Qualcomm Snapdragon 625, is a landmark System-on-Chip (SoC) in the mobile industry.1 The specific variant B01-AB refers to a particular revision and packaging of the Integrated Circuit (IC) used extensively in mid-range smartphones.
It gained fame primarily for being the first 600-series chipset to utilize the 14nm FinFET process technology, which revolutionized power efficiency and thermal management in affordable devices.
Technical Architecture
The MSM8953 is an octa-core processor designed to balance consistent performance with extreme battery longevity.
-
CPU Clusters: It features eight ARM Cortex-A53 cores.2 Unlike “big.LITTLE” configurations that mix high-power and low-power cores, the MSM8953 uses a uniform architecture where all eight cores can clock up to 2.0 GHz.
-
Microarchitecture: By using the 14nm fabrication process, the IC occupies a smaller footprint on the PCB and generates significantly less heat compared to its 28nm predecessors.
Key Subsystems
1. Graphics and Visuals (GPU)
The IC integrates the Adreno 506 GPU.3 While not designed for high-end “ultra-spec” gaming, it provides robust support for modern APIs like Vulkan and OpenGL ES 3.1. It is capable of driving Full HD (1080p) displays at 60fps with ease.
2. Camera and Imaging (ISP)
The chip includes the Qualcomm Spectra 160 Image Signal Processor (ISP). This allows the mobile device to:
-
Support dual-camera setups.4
-
Capture 4K Ultra HD video at 30fps.5
-
Utilize advanced features like zero shutter lag and hybrid autofocus.
3. Connectivity and Modem
The integrated Snapdragon X9 LTE modem is a core component of the MSM8953.6 It supports:
-
Cat 7 Downlink: Up to 300 Mbps. MSM 8953 B01-AB CPU Mobile Phone IC
-
Cat 13 Uplink: Up to 150 Mbps.
-
It also integrates Wi-Fi 802.11ac with MU-MIMO, Bluetooth 4.1, and high-accuracy GPS (IZat Gen8C). MSM 8953 B01-AB CPU Mobile Phone IC
Physical Characteristics: B01-AB
The suffix B01-AB identifies the physical hardware revision and the NSP (Non-Package-on-Package) or PoP (Package-on-Package) configuration.
-
Ball Grid Array (BGA): This IC is typically soldered to the motherboard using a high-density BGA grid.7
-
Power Management: It is designed to work in tandem with a specific Power Management IC (PMIC), usually the PM8953, to regulate voltages across the CPU cores and modem.
Performance Legacy
The “AB” revision of the MSM8953 is often cited by repair technicians and engineers for its reliability. Because it runs cool, the IC rarely suffers from the “thermal throttling” or “solder fatigue” issues seen in high-performance chips of that era. It became the “gold standard” for mid-range phones (like the Xiaomi Redmi Note 4 or Motorola Moto G5 Plus) because it provided a “good enough” user experience while doubling the battery life of many competitors.
Summary Table
| Feature | Specification |
| Process Node | 14nm FinFET |
| Core Count | 8x Cortex-A53 |
| Max Frequency | 2.0 GHz |
| GPU | Adreno 506 |
| Memory Support | LPDDR3 @ 933MHz |
| Video | 4K HEVC Capture & Playback |
