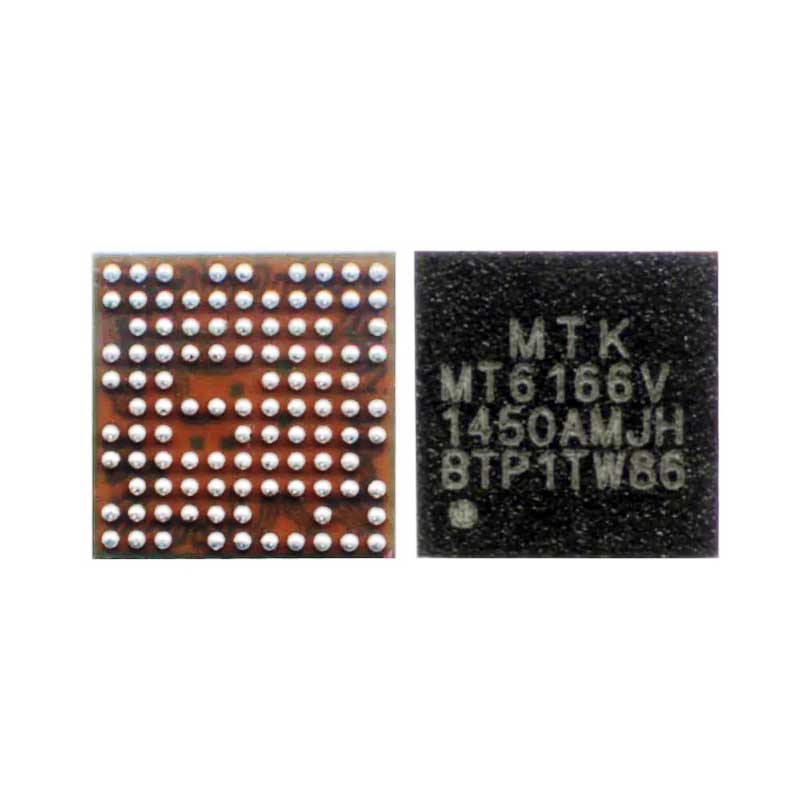

MT 6166 V Mobile Phone IC
Compact Performance for Mobile Devices
The MT 6166 V Mobile Phone IC is an advanced integrated circuit designed to elevate your mobile device’s efficiency and reliability. Built for modern smartphones, it combines robust performance with a sleek design to ensure seamless functionality. Whether you’re a manufacturer looking to enhance device performance or a repair technician seeking top-tier components, the MT 6166 V delivers optimal results. MT 6166 V Mobile Phone IC
Unmatched Reliability and Efficiency
Designed with precision, the MT 6166 V boasts cutting-edge technology to minimize energy consumption while maximizing operational output. Its streamlined architecture ensures heat management, reducing the risk of overheating for prolonged device operations. With this mobile phone IC, users can enjoy faster processing speeds and improved battery longevity, making it a crucial component for modern device engineering.
Versatile Applications for Smart Devices
The MT 6166 V IC is a versatile solution suitable for various mobile phone models and configurations. Its adaptability allows it to integrate seamlessly into diverse circuitry layouts without compromising on performance. Whether you’re upgrading devices or repairing existing models, this IC serves as the ideal component to meet diverse technological demands. MT 6166 V Mobile Phone IC
The MT6166V is a high-performance, highly integrated Radio Frequency (RF) transceiver IC developed by MediaTek. It is a critical component in the “RF front-end” of mid-range and entry-level mobile devices, responsible for managing the translation between digital data and the radio waves used for cellular communication. MT 6166 V Mobile Phone IC
Technical Overview
The MT6166V is fabricated using a 40nm CMOS process, which allows for a compact footprint and low power consumption—two essential requirements for modern smartphones and tablets. It is a multi-mode transceiver, meaning it supports several cellular standards simultaneously, including 2G (GSM/GPRS/EDGE), 3G (WCDMA/HSPA+), and in some configurations, TDSCDMA.
Key Specifications
| Feature | Detail |
| Manufacturer | MediaTek (MTK) |
| Package Type | VFBGA (Very Thin Fine Pitch Ball Grid Array) |
| Pin Count | 104-pin or 869-pin variants (platform-dependent) |
| Technology | 40nm CMOS |
| Standard Support | GSM, GPRS, EDGE, WCDMA, HSPA+ |
| Frequency Bands | Quad-band GGE; 3G-FDD Bands 1, 2, 5, 8 |
Functional Architecture
The IC is divided into two primary sections: the Receiver (Rx) and the Transmitter (Tx).
1. Receiver Section
The receiver uses a Hybrid Direct-Conversion (for 3G) and Low-IF (for 2G) architecture. This design is “SAW-less,” meaning it eliminates the need for bulky external Surface Acoustic Wave (SAW) filters, saving significant PCB space.
-
Integrated Components: Includes Low Noise Amplifiers (LNAs), down-converting mixers, and baseband low-pass filters. MT 6166 V Mobile Phone IC
-
DC Offset Correction: Automatically corrects direct current offsets to maintain signal integrity during baseband processing. MT 6166 V Mobile Phone IC
2. Transmitter Section
The transmitter implements a translation loop modulator.
-
Modulation: Supports GMSK for 2G and 8-PSK for EDGE, as well as high-speed HSPA+ data rates (up to 21.1 Mbps downlink). MT 6166 V Mobile Phone IC
-
Integrated VCO: Features an on-chip Voltage Controlled Oscillator (VCO) and loop filters, minimizing the “Bill of Materials” (BOM) for manufacturers. MT 6166 V Mobile Phone IC
Power Management & Integration
One of the standout features of the MT6166V is its ability to operate directly from a DC-DC converter. This allows the phone to adjust the voltage supplied to the RF chip dynamically, significantly extending battery life during active calls or data transfers.
-
Clocking: It supports a 26MHz internal DCXO (Digitally Compensated Crystal Oscillator) and provides additional low-noise clock outputs for peripheral chips like GPS or Wi-Fi modules.
-
Calibration: The IC includes self-calibration mechanisms that adjust for temperature fluctuations and manufacturing tolerances, ensuring the phone maintains a stable connection even in harsh environments.
Common Applications
You will typically find the MT6166V paired with MediaTek baseband processors like the MT6572 or MT6582. It was widely used in popular budget and mid-range devices from brands such as Lenovo, Xiaomi (Redmi series), and Huawei during the mid-2010s. In repair contexts, it is often identified as the “Network IC” or “IF IC” (Intermediate Frequency).
