MT 6315 FP Mobile Phone IC
Unleash the Power of MT 6315 FP Mobile Phone IC
The MT 6315 FP Mobile Phone IC is a premium solution designed to elevate performance levels for modern mobile devices. Engineered with precision, this integrated circuit delivers exceptional power management and intelligent functionality tailored to meet the evolving demands of today’s smartphones and electronic devices. If you’re seeking reliability, efficiency, and cutting-edge engineering, the MT 6315 FP stands out as the ideal choice for superior mobile device designs. MT 6315 FP Mobile Phone IC
Key Features and Benefits
The MT 6315 FP Mobile Phone IC offers a rich feature set that ensures optimal device operation and user experience. With advanced power management capabilities, the IC minimizes energy consumption while maximizing battery life, enabling mobile devices to operate longer on a single charge. Additionally, its robust design protects against temperature fluctuations and electrical disruptions, promoting device longevity. Whether integrated into flagship smartphones or mid-tier models, the MT 6315 FP ensures reliable and seamless performance across diverse applications.
Why Choose MT 6315 FP?
Designed to keep pace with the demands of innovation, the MT 6315 FP Mobile Phone IC addresses the core needs of developers and manufacturers. It enhances stability, reduces heat dissipation, and ensures consistent voltage regulation, contributing to smoother device operations. The IC’s compatibility with a wide range of mobile platforms makes it versatile, ensuring seamless integration into various design plans. When reliability, efficiency, and performance matter most, the MT 6315 FP delivers a solution that meets and exceeds expectations.

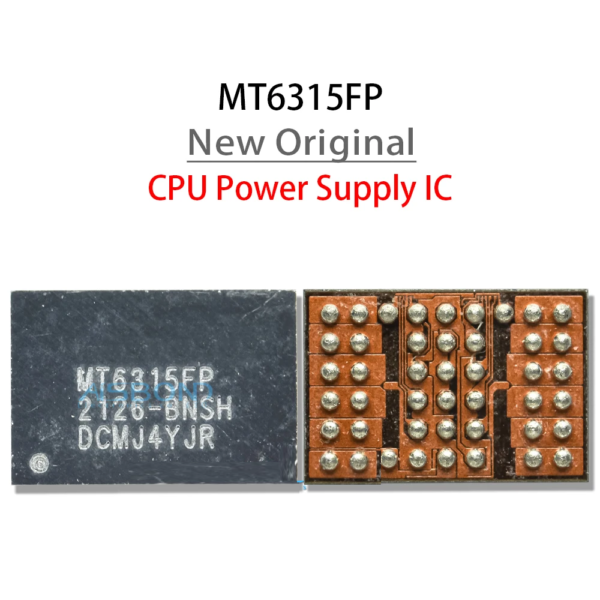

The MT6315FP is a specialized Power Management Integrated Circuit (PMIC) developed by MediaTek. It is commonly referred to in the repair industry as an “External Buck Converter” or a secondary power IC. Unlike the main PMIC, which manages the entire phone’s power, the MT6315FP is typically dedicated to providing high-current, low-voltage power specifically to the CPU (Core) and GPU of high-performance 5G smartphones. MT 6315 FP Mobile Phone IC
1. Functional Overview
The MT6315FP belongs to a series of multi-phase buck converters (including variants like MT6315NP, RP, and TP). Its primary role is to “step down” the battery voltage to the precise levels required by the processor. Modern processors require massive amounts of current at very low voltages (often below 1.0V) to operate at high speeds without crashing. The “FP” variant is optimized for stable operation under “light-load” conditions, ensuring the phone remains efficient even when idling. MT 6315 FP Mobile Phone IC
2. Key Technical Specifications
The MT6315FP is engineered for high-density mobile motherboards:
-
Output Configuration: It typically features a 4-Phase Buck Converter system. By splitting the power delivery into four “phases,” it reduces heat and ensures a very smooth, “ripple-free” voltage.
-
Voltage Range: It can output programmable voltages, usually ranging from 0.4V to 1.19V, with a typical step accuracy of 6.25mV.
-
Output Current: Capable of delivering up to 5A per phase (totaling up to 20A in some configurations), which is necessary for the “burst” speeds of 5G processors.
-
Package Type: It comes in a very small WLCSP (Wafer Level Chip Scale Package), often with a 45-ball or 48-ball grid, measuring roughly 2.35 x 3.44 mm.
-
Interface: It is controlled via the I2C or SPMI interface, allowing the phone’s CPU to digitally request more or less power instantly.
3. Compatible Models
You will find the MT6315FP in many modern 5G smartphones using MediaTek Dimensity or Helio chipsets. Common models include:
-
Xiaomi: Redmi Note 11 Pro, Redmi Note 12 Pro, Poco X4 Pro 5G.
-
Realme: Realme 9 Pro Plus, Realme 10 Pro Plus, Realme 11 Pro.
-
Oppo/Vivo: Reno 10 5G, Reno 11 5G, Vivo V23, V25.
-
Infinix/Tecno: Zero 5G, Camon 19 Pro.
4. Common Failures and Troubleshooting
Because this IC handles the most critical power lines for the processor, a fault here usually results in a “Dead Phone” or a “No Display” condition.
-
Short Circuit: Since it is connected to the CPU power rails, a shorted MT6315FP will show low resistance on the “Buck” coils (large grey components) around the IC.
-
Boot Loops: If the IC cannot maintain a stable voltage under load, the phone may start to turn on but crash and restart repeatedly.
-
Heat Damage: Because it handles high current, it is prone to overheating if the phone has been subjected to liquid damage or a faulty charger.
5. Repair Note
Replacing the MT6315FP requires advanced microsoldering. Because the chip is a WLCSP (no leads, just tiny balls underneath), it must be “reballed” or replaced using a high-quality stencil and a hot air station set to approximately 340°C–360°C. Technicians must be careful as the CPU is usually located very close to this IC; excessive heat can accidentally “bridge” the balls under the main processor.
