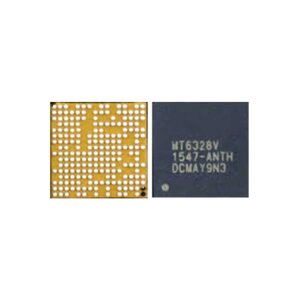

MT 6328V Original Mobile Phone IC
Unmatched Performance with MT 6328V Original Mobile Phone IC
The MT 6328V Original Mobile Phone IC is engineered to deliver exceptional performance for your mobile devices. Designed to seamlessly integrate into your smartphone system, this advanced IC offers top-notch capabilities including power efficiency, reliability, and compatibility with modern devices. It ensures your device runs smoothly while maximizing battery life.
High-Quality Build for Better Stability
Crafted with precision and manufactured using top-tier materials, the MT 6328V IC guarantees long-lasting performance and structural stability. Whether you’re replacing an old component or upgrading your device, this mobile phone IC is an excellent choice to enhance functionality and maintain operational integrity. With its robust design, it stands out as an original component that meets the highest industry standards. MT 6328V Original Mobile Phone IC
Versatile Applications and Easy Integration
The MT 6328V Original Mobile Phone IC is highly versatile and suitable for a wide range of mobile devices. Thanks to its easy integration, both professionals and hobbyists can use this IC without hassle. Its compatibility ensures it works seamlessly, reducing troubleshooting time and ensuring a smooth user experience with your gadget.
If you’re searching for a mobile IC that combines performance, reliability, and efficiency, the MT 6328V Original Mobile Phone IC is undoubtedly the choice for you. Experience superior functionality with this component designed to meet your mobile device’s exact needs.
The MediaTek MT6328V is a highly integrated Power Management Integrated Circuit (PMIC) specifically engineered for 2G, 3G, and 4G smartphones and portable electronic devices. As the “heart” of the device’s power system, it is responsible for distributing and regulating electricity to critical components like the application processor, memory, and radio frequency (RF) modules.
Below is a detailed breakdown of its specifications, architecture, and functional roles.
1. Core Power Architecture
The MT6328V is designed to convert raw battery voltage into multiple stable power rails required by a modern smartphone’s complex internal circuitry. MT 6328V Original Mobile Phone IC
-
Buck Converters: It features 5 high-efficiency buck (step-down) converters. These are used for high-current subsystems like the CPU core and GPU, where maintaining high energy efficiency is critical to reducing heat and extending battery life. MT 6328V Original Mobile Phone IC
-
LDO Regulators: The chip integrates 28 Low-Dropout (LDO) regulators. These provide clean, low-noise power to sensitive analog and digital components, such as sensors, camera modules, and memory interfaces. MT 6328V Original Mobile Phone IC
-
Input Voltage Range: Designed to operate typically within a range of 2.5V to 4.5V, making it perfectly compatible with standard single-cell Li-ion or Li-polymer batteries. MT 6328V Original Mobile Phone IC
2. Integrated Battery Management
The MT6328V isn’t just a distributor; it is an intelligent battery controller. MT 6328V Original Mobile Phone IC
-
Charging Capabilities: It includes a full-set Li-ion battery charging function compliant with USB Battery Charging Specifications (BC1.1/1.2). MT 6328V Original Mobile Phone IC
-
Fuel Gauge: It features a precision fuel gauge that measures voltage, temperature, and current. This allows the smartphone’s OS to display highly accurate battery percentages. MT 6328V Original Mobile Phone IC
-
Safety Protections: The IC includes robust hardware-level protection, including:
-
OVP/UVP: Over-voltage and Under-voltage protection.
-
OCP: Over-current protection.
-
OTP: Thermal overload protection with automatic shutdown or throttling.
-
3. Specialized Features
Beyond simple power regulation, the MT6328V handles several peripheral tasks:
-
Audio Subsystem: It integrates high-quality uplink and downlink audio CODECs, supporting voice calls and media playback without needing a separate audio chip.
-
RTC (Real-Time Clock): It contains a 32K RTC oscillator to keep track of time even when the device is powered off. It is optimized to keep the RTC alive for several hours even if the main battery is removed.
-
LED Drivers: It supports 2 channels of LED indicators with independent control for “breathing” effects or charging status lights.
-
Interface: It utilizes an SPI interface for communication and handshaking with the Baseband (BB) processor.
4. Physical & Technical Specifications
| Attribute | Specification |
| Manufacturer | MediaTek (MTK) |

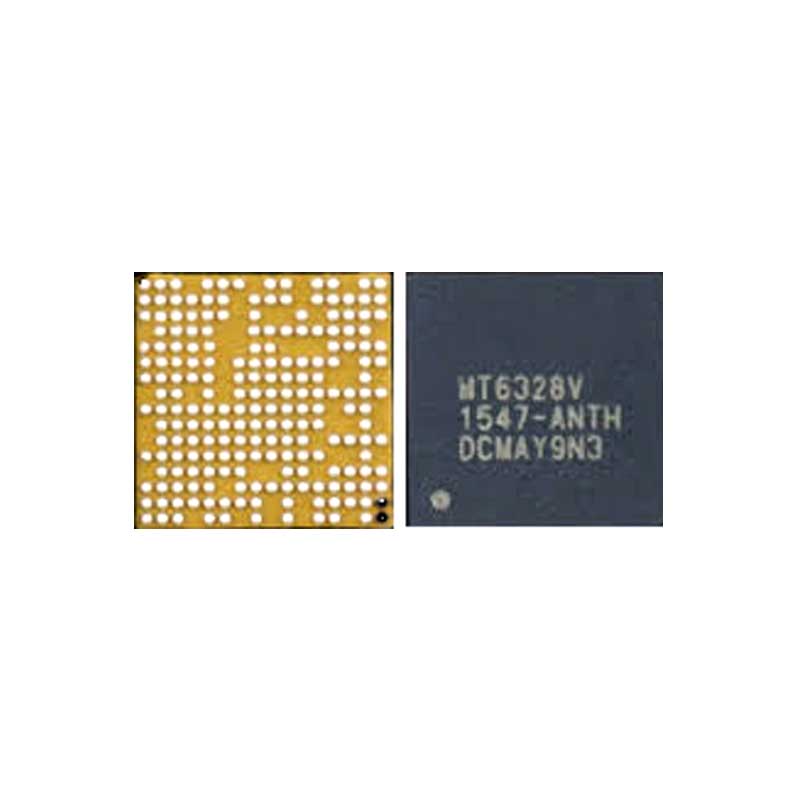

| Package Type | 206-pin VFBGA (Fine-pitch Ball Grid Array) |
| Package Size | Approx. 5.0mm x 5.0mm |
| Operating Temp | -25°C to +65°C |
| Application | Android Smartphones (MT67xx and MT65xx series) |
Common Compatible Models
This IC is frequently found in mid-range devices from manufacturers like Huawei, Lenovo, Nokia, and Infinix. For example, it is a standard component in the Nokia 3, Lenovo A2010, and various Meizu and Tecno models.
5. Summary for Repair Technicians
When replacing the MT6328V, ensure the “V” suffix is matched, as variations like the MT6328A may have different firmware or pin configurations depending on the specific PCB revision. Because it is a BGA (Ball Grid Array) component, professional soldering equipment and stencils are required for installation.
