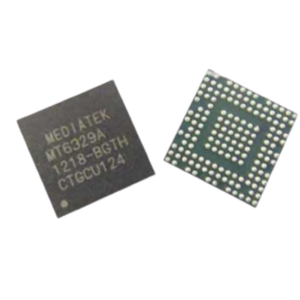

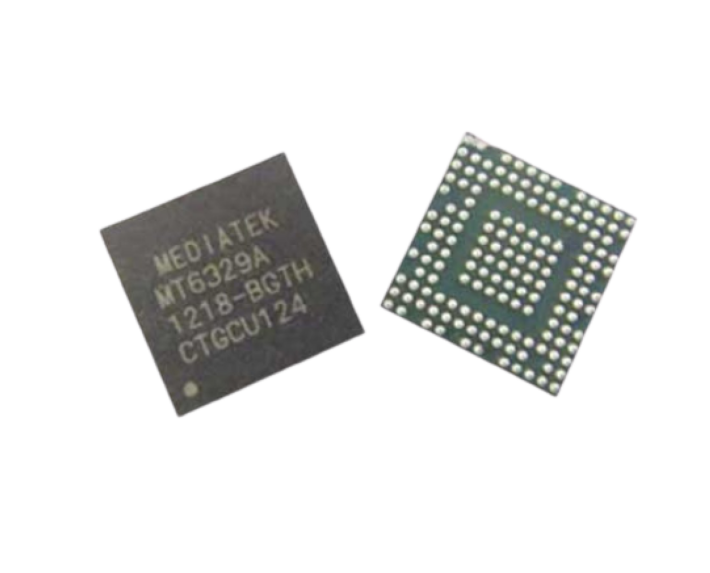

MT 6329A Original Mobile Phone IC
Enhance Your Mobile Device Performance
Discover the MT 6329A Original Mobile Phone IC, a premium integrated circuit designed to optimize the functionality of mobile devices. Featuring exceptional reliability and robust efficiency, this product is tailored for seamless communication and improved device performance. Whether you’re a technician, mobile device manufacturer, or tech enthusiast, the MT 6329A IC stands out as a remarkable upgrade that meets the demands of modern electronics. MT 6329A Original Mobile Phone IC
Engineered for Quality and Durability
The MT 6329A Original Mobile Phone IC is crafted using industry-leading technology to ensure top-notch quality. Its durable construction and advanced configuration make it a vital component for a wide range of mobile devices. This IC excels in power management, ensuring your device runs smoothly even under demanding circumstances. The MT 6329A is compatible with various device models, making it the perfect choice for upgrading or repairing your phone’s internal systems. MT 6329A Original Mobile Phone IC
An Essential Component for Mobile Experts
For professionals and enthusiasts in the mobile industry, the MT 6329A Original Mobile Phone IC is a valuable addition to your toolkit. This IC supports efficient energy flow, preventing overheating and improving battery life, helping devices stay functional for longer periods. Beyond its technical benefits, it contributes to the overall stability of mobile devices, ensuring connectivity and performance are uninterrupted. Bring your projects to life or fix devices seamlessly with this reliable, high-quality integrated circuit.
The MT6329A is a highly integrated Power Management Integrated Circuit (PMIC) developed by MediaTek.1 It is primarily designed to manage the complex power requirements of 2G, 3G, and early 4G (LTE) smartphones and tablets, particularly those built on the MediaTek MT6575 and similar system-on-chip (SoC) platforms.2
As the “heart” of the device’s power system, the MT6329A ensures that every component—from the high-speed processor to the sensitive audio speakers—receives the exact voltage it needs to function efficiently.3
Key Functions and Architecture
The MT6329A is an all-in-one solution that combines several critical sub-systems into a single, compact 155-pin TFBGA (Thin Fine-pitch Ball Grid Array) package. Its architecture is divided into several functional blocks:
1. Power Regulation (Buck & LDO)
Mobile phones require different voltage levels for different parts. The MT6329A manages this using:
-
5 Buck Converters: These are high-efficiency step-down regulators used for power-hungry components like the CPU (Core) and GPU.4 They support DVFS (Dynamic Voltage and Frequency Scaling), allowing the phone to lower its voltage when idle to save battery.
-
21 LDOs (Low-Dropout Regulators): These provide clean, low-noise power to sensitive analog parts such as the camera sensor, Wi-Fi module, and SIM card reader.MT 6329A Original Mobile Phone IC
2. Battery and Charging Management
The IC includes a sophisticated charging sub-system:
-
Li-ion Charger: It supports standard Lithium-ion battery charging with an input range of up to 10V, making it compatible with both USB and wall adapters.6
-
Fuel Gauge: It features high-precision current and voltage measurement to provide the user with accurate “battery percentage” readings.7
-
Safety Protections: It monitors for Over-Voltage (OVP), Under-Voltage (UVP), and thermal overloads to prevent the battery or phone from overheating or catching fire.8
3. Audio Subsystem
Unlike many simple power ICs, the MT6329A integrates a high-quality audio block:9
-
Class AB/D Amplifiers: It contains dual-channel amplifiers capable of delivering 0.7W into 8Ω.10 This powers the device’s external speakers and internal receivers.
-
Audio Interface: It manages the Analog-to-Digital (ADC) and Digital-to-Analog (DAC) conversions for voice calls and music playback.11
Technical Specifications
| Feature | Description |
| Input Voltage Range | $3.4\text{V} \sim 4.3\text{V}$ (Typical battery voltage) |
| Max Charger Input | Up to $10\text{V}$ |
| Regulators | 5 Buck Converters + 21 LDOs |
| Interface | I2C (for communication with the main processor) |
| Package Type | 155-pin TFBGA |
| Operating Temp | $-25\text{°C}$ to $+85\text{°C}$
|
