MU005X01-2 Mobile Phone IC

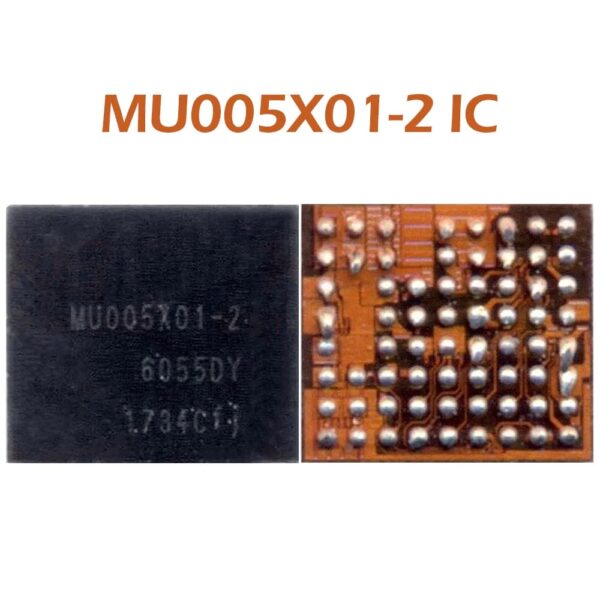

Overview of MU005X01-2 Mobile Phone IC
The MU005X01-2 Mobile Phone IC is a cutting-edge integrated circuit (IC) specifically designed to enhance the performance and efficiency of modern mobile devices. Whether you’re manufacturing smartphones, tablets, or wearable devices, this IC provides exceptional functionality to meet the demands of today’s fast-paced tech landscape. Featuring advanced technology, compact design, and exceptional reliability, the MU005X01-2 IC is the perfect choice for creating innovative, next-generation mobile products.
Features and Benefits
High Performance: The MU005X01-2 Mobile Phone IC delivers outstanding computational capability, ensuring smooth and stable operation across all device functions.
Compact Design: With its space-saving design, the IC is ideal for small form-factor devices while minimizing the complexity of device assembly.
Energy Efficiency: This IC optimizes energy usage, reducing battery consumption and ensuring longer operational times for mobile devices.
Reliability: Manufactured with robust materials and cutting-edge technology, the MU005X01-2 IC ensures durability and consistent performance over extended periods of use.
Wide Application: Compatible with multiple device types, the MU005X01-2 IC is a versatile solution for manufacturers in the mobile device industry.
Applications of the MU005X01-2 Mobile Phone IC
The MU005X01-2 IC can be seamlessly integrated into a variety of mobile products. It is designed to support applications in:
– Smartphones: Elevate the functionality and speed of modern smartphones with this cutting-edge IC.
– Tablets: Optimize processing power and energy efficiency in large-screen devices.
– Wearables: Ensure compact yet powerful performance for smartwatches, fitness wearables, and other portable devices.
– IoT Devices: MU005X01-2 IC is perfect for connected devices, paving the way for smarter applications in home automation or industrial solutions.
Why Choose MU005X01-2 Mobile Phone IC?
By integrating the MU005X01-2 Mobile Phone IC into your products, you guarantee exceptional value to your users. Whether it’s enhanced energy efficiency or robust performance, this IC addresses key challenges faced by mobile device manufacturers while enabling you to stay ahead in competitive markets. Invest in the MU005X01-2 Mobile Phone IC for superior technology that powers the future of mobile innovation. MU005X01-2 Mobile Phone IC
The MU005X01-2 is a specialized Power Management Integrated Circuit (PMIC), often referred to in the repair industry as a “Small Power IC.” It is primarily utilized in Samsung mobile devices, such as the Galaxy J7 (2016) and Galaxy S7 Edge, to manage critical power rails, charging protocols, and voltage regulation for peripheral components. MU005X01-2 Mobile Phone IC
Technical Specifications Table
The following table outlines the key electrical and physical parameters of the MU005X01-2 IC based on its application in the Samsung Exynos platform.
| Specification | Detail / Value |
| Model Number | MU005X01-2 (S2MU005X01-2) |
| Component Type | PMIC (Power Management Integrated Circuit) |
| Package Type | WLCSP-88 (Wafer Level Chip Scale Package) |
| Package Size | Approx. 4.2mm x 4.2mm |
| Input Voltage Range | 3.0V to 4.5V (Standard Li-ion battery range) |
| Regulated Outputs | 12 Channels (including BUCK and LDO) |
| Maximum Current | Up to 3.5A on primary BUCK rails (e.g., VDD_CORE) |
| Charging Protocol | Samsung Adaptive Fast Charging / QC 2.0 Compatible |
| Operating Temp. | -10°C to 50°C |
| Thermal Protection | Active throttling (Triggers at approximately 42°C) |
| Mounting Type | Surface Mount (SMD) / BGA (Ball Grid Array) |
| Primary Platforms | Samsung Exynos 8890 / Exynos 7870 |
Key Functional Overview
The MU005X01-2 is not just a simple regulator; it is a sophisticated controller that manages the complex power sequencing required by modern smartphones. Its primary responsibilities include:
-
Voltage Regulation: It converts the raw battery voltage into stable, specific voltages ($V_{dd}$) required by the CPU, GPU, and memory.
-
Battery Management: It monitors the charging cycle, preventing overcharging and managing the “Fast Charge” handshake with the wall adapter.
-
Peripheral Power: It provides LDO (Low Dropout) regulated power to sensitive analog components like the camera sensors, audio ICs, and touch controllers.
-
Fault Protection: The IC includes internal logic to shut down or throttle power if it detects a short circuit or excessive heat, protecting the motherboard from permanent damage.
Compatibility and Repair Context
This IC is a high-frequency replacement part in mobile repair. It is commonly swapped when a device presents “No Power” symptoms, fails to charge, or gets stuck at a specific battery percentage.
-
Common Compatible Models: Samsung Galaxy J710F (J7 2016), J510F (J5 2016), G935F (S7 Edge), and A520F (A5 2017).
-
Interchangeability: It is often considered functionally interchangeable with the MU005X02, though the “X01-2” variant is noted for having slightly higher peak current thresholds optimized for high-performance GPU boosting.
Technical Note: Replacing this IC requires professional BGA soldering tools. Due to the WLCSP-88 packaging, precise heat control (usually around 230°C to 250°C depending on the flux used) is necessary to avoid damaging the internal die or bridging the microscopic solder balls.
