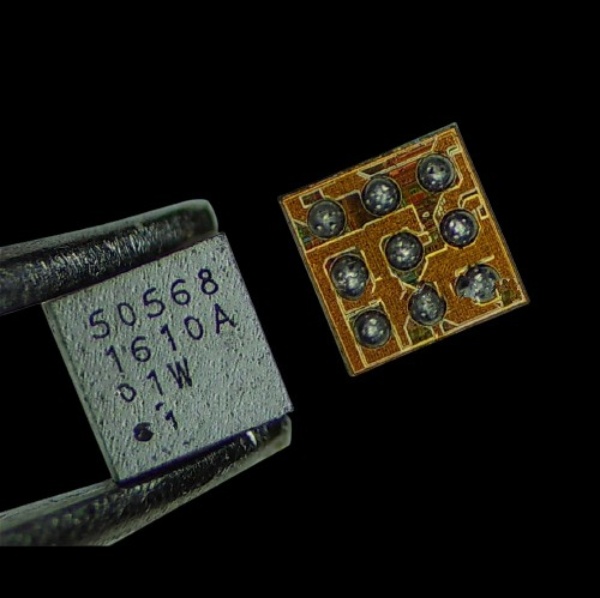

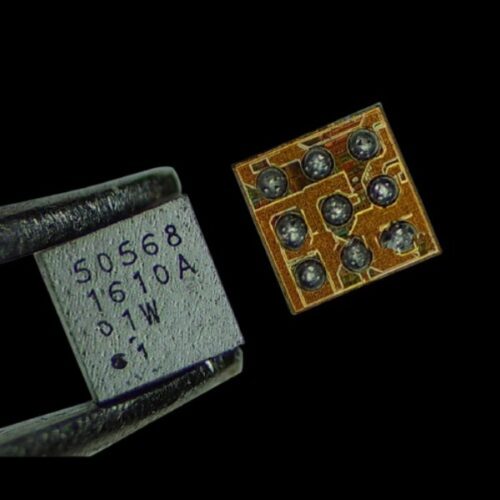

NT 50568 Original Mobile Phone IC
Enhance Your Device’s Performance with NT 50568 Original IC
The NT 50568 Original Mobile Phone IC is a top-notch, high-performance electronic component designed to ensure smooth functionality and reliability in your mobile devices. Engineered with precision and unmatched quality, this IC guarantees optimal efficiency for a variety of mobile phone models. Whether you are repairing a device or building one from scratch, the NT 50568 IC delivers the stability you need for enhanced performance.
Key Features and Benefits
What sets the NT 50568 Original Mobile Phone IC apart is its outstanding range of features. This versatile component is built to complement the complex electronic systems of modern smartphones. Some of the key benefits include:
- High Compatibility: Works seamlessly with a wide range of mobile phone brands and models.
- Reliable Performance: Ensures your device functions smoothly without glitches.
- Durable Build: Manufactured using premium materials to provide long-lasting performance.
- Compact Design: Ideal for integration into sleek and space-efficient designs.
Whether you’re a professional technician or an individual looking to repair or enhance your mobile phone’s performance, the NT 50568 IC provides a dependable solution at an exceptional value.
Applications and Ideal Use Cases
The NT 50568 Original Mobile Phone IC is suitable for a variety of applications, including:
- Repairing mobile phones to restore operational efficiency.
- Replacing faulty or damaged IC components in smartphones.
- Incorporating into new electronic projects, such as mobile phone prototypes.
- Stocking for professional repair businesses to meet customer demand.
Its versatility, coupled with reliable performance, makes this IC a must-have component in the electronics industry. With the NT 50568 Original Mobile Phone IC, you can tackle any technical challenge with ease and confidence.
Why Choose the NT 50568 Original Mobile Phone IC?
When it comes to choosing the right components for your mobile device, quality and compatibility matter. The NT 50568 IC meets the stringent requirements of modern electronic devices, ensuring your projects are both efficient and functional. Backed by a strong reputation for excellence, this product stands out for its robust design and seamless performance. Trust the NT 50568 Original Mobile Phone IC to keep your devices running smoothly, whether at home, in a workshop, or as part of your professional inventory.
Invest in reliability, durability, and precision with the NT 50568 Original Mobile Phone IC – the ultimate solution for your mobile phone component needs.
The NT50568 is a specialized Integrated Circuit (IC) manufactured by Novatek Microelectronics, a leading global provider of display driver and power management solutions. In the mobile repair industry, the NT50568 is widely recognized as a Backlight Control IC (often referred to as the Light IC). It is primarily responsible for managing the power supply and brightness levels for LCD backlights in smartphones.
Below is the technical specification of the NT50568 Original Mobile Phone IC.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Novatek Microelectronics |
| Part Number | NT50568 (often variants like NT50568CG/A) |
| Primary Function | LED Backlight Driver / Power Management (PMIC) |
| Package Type | DSBGA (Die-Size Ball Grid Array) |
| Pin Count | 9-Pin (3×3 Ball Grid Array) |
| Application | LCD Backlight Control for Android & Low-end Smartphones |
| Input Voltage Range | Typically $2.7\text{V}$ to $5.5\text{V}$ (Standard Lithium-ion range) |
| Output Type | High-Voltage Boost Converter (Step-up) |
| Control Interface | Pulse Width Modulation (PWM) or I2C (Model dependent) |
| Operating Temperature | $-40^{\circ}\text{C}$ to $+85^{\circ}\text{C}$ |
| RoHS Status | Lead-Free / RoHS Compliant |
Key Roles and Functions
The NT50568 plays a critical role in the display subsystem of a mobile device. Its main responsibilities include:
-
Voltage Boosting: Since a mobile battery typically provides around $3.7\text{V}$ to $4.2\text{V}$, and a series of backlight LEDs requires significantly higher voltage (often $15\text{V}$ to $25\text{V}$), the NT50568 acts as a DC-to-DC Boost Converter to step up the power.
-
Brightness Regulation: It regulates the current flowing through the LED string. By adjusting the duty cycle (PWM), it allows the user to change the screen brightness from the phone’s software settings.
-
Protection Circuitry: It includes safety features such as Over-Voltage Protection (OVP) and Short-Circuit Protection, preventing the motherboard from burning out if the display flex cable or the LEDs short out.
Common Signs of Failure
When this IC malfunctions, technicians typically observe the following symptoms:
-
Black Screen: The phone turns on and sounds play, but the screen remains dark (no light).
-
Dim Display: The display is visible only under a bright external light source (flashlight test).
-
Flickering: The screen backlight flickers or varies in intensity unintentionally.
-
Overheating: The area near the IC on the PCB becomes excessively hot during use.
Repair & Replacement Note
Because the NT50568 is a DSBGA package, replacement requires professional SMD (Surface Mount Device) soldering skills. It is highly sensitive to heat; technicians usually use a hot air rework station set between 330°C and 350°C with a fine nozzle to avoid damaging surrounding components on the dense mobile motherboard.
