P15E Mobile Phone IC
Enhance Your Phone’s Performance

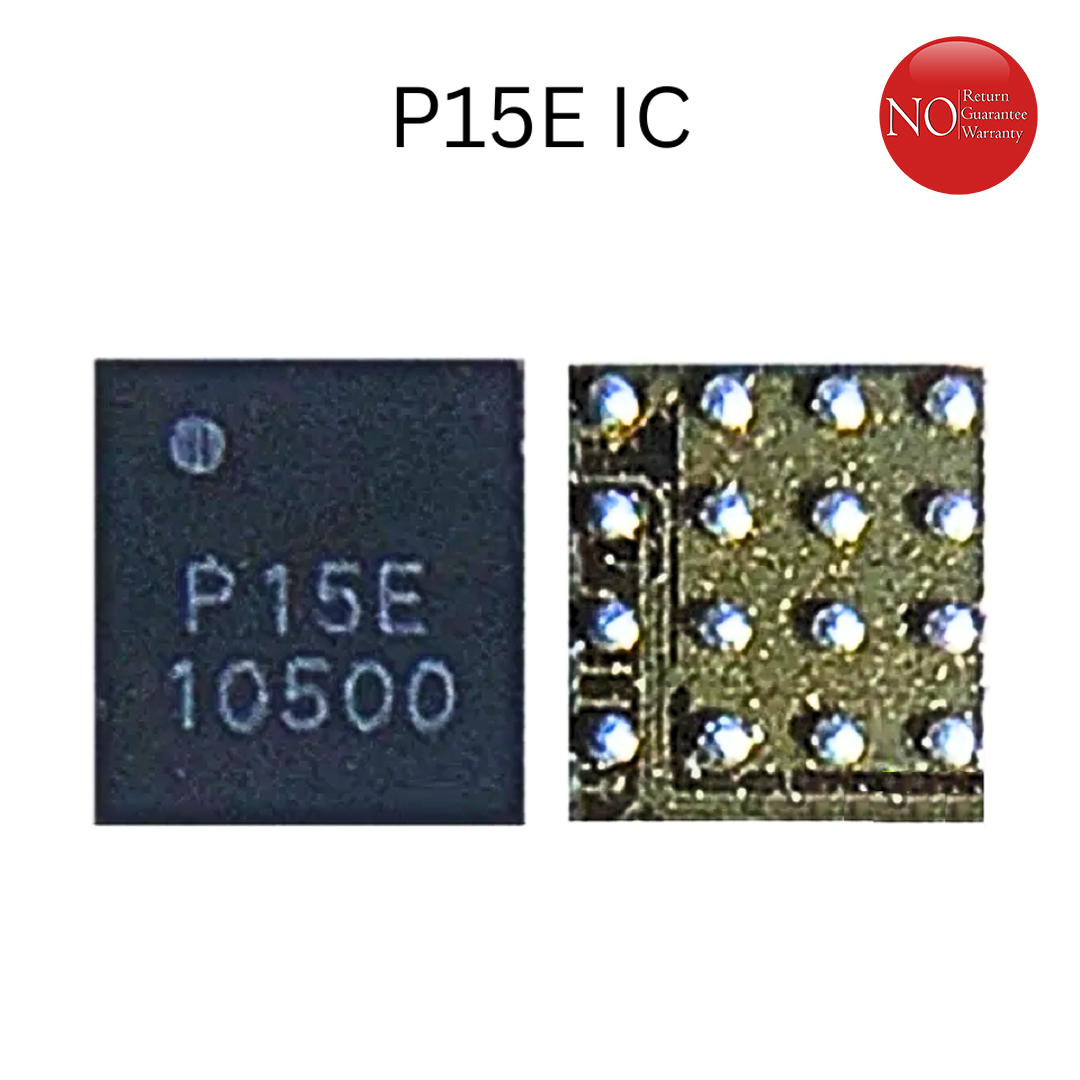

The P15E Mobile Phone IC is crafted to provide seamless functionality and exceptional performance for modern smartphones. Designed with precision, this IC ensures stable and efficient device operation, making it an essential component for advanced mobile technology. P15E Mobile Phone IC
Reliable, Compact, and Efficient
With its cutting-edge design, the P15E Mobile Phone IC offers compact dimensions and energy efficiency, aligning perfectly with the evolving needs of today’s tech world. This innovative IC ensures prolonged phone life by optimizing energy consumption and reducing heat generation during operation. P15E Mobile Phone IC
Versatile Compatibility
The P15E IC caters to a variety of mobile platforms and configurations, ensuring broad compatibility and integration ease. Whether you’re developing new devices or upgrading existing models, this IC guarantees dependable performance and adaptability. P15E Mobile Phone IC
The P15E (specifically the PSC5415E by Prisemi) is a highly integrated, switch-mode battery charging Integrated Circuit (IC) primarily used in modern smartphones and compact consumer electronics. It is often found in Samsung Galaxy and Note series devices (such as the Galaxy S7/S10/A10), where it functions as a Power Management IC (PMIC) or dedicated Charging IC.
The P15E is known for its 20-pin WLCSP (Wafer Level Chip Scale Package) design and its ability to handle USB-OTG (On-The-Go) boost regulation alongside high-efficiency battery charging.
Technical Specifications: P15E Charging IC
| Feature | Specification Details |
| Model Name | P15E / PSC5415E |
| Primary Function | Single-Cell Li-Ion Switching Charger |
| Package Type | WLCSP-20 (20-pin Ball Grid Array) |
| Input Voltage (VBUS) | 4.5V to 5.75V (Operational) |
| Max Charge Current | Up to 1.75A |
| OTG Output Voltage | 5.0V |
| OTG Output Current | 700mA |
| Communication Protocol | I²C Interface (for registers and status) |
| Voltage Accuracy | ±0.5% at 25°C |
| Thermal Protection | Shutdown at +140°C (Junction) |
| Operating Temperature | -30°C to +85°C |
| Integration | MOSFETs, Current Sensing, and Compensation included |
Core Functional Features
The P15E is not just a simple power regulator; it is a sophisticated controller that manages the relationship between the USB input, the battery, and the device’s CPU.
-
Switch-Mode Charging: Unlike linear chargers that waste energy as heat, the P15E uses a switching buck-converter architecture. This allows it to charge at higher currents (up to 1.75A) while keeping the device cool. P15E Mobile Phone IC
-
USB-OTG Boost: The IC can reverse the power flow. When you plug a USB peripheral (like a flash drive) into your phone, the P15E boosts the battery’s voltage to a steady 5V to power that external device. P15E Mobile Phone IC
-
Safety Protections: It features integrated Over-Voltage Protection (OVP), typically set at 6.0V to protect the phone from faulty chargers, and Over-Current Protection (OCP) to prevent battery damage. P15E Mobile Phone IC
-
Thermal Monitoring: A critical feature for mobile repair technicians is the P15E’s temperature sensing. It communicates with the battery’s thermistor to prevent charging if the battery is too hot or too cold. P15E Mobile Phone IC
Common Signs of P15E Failure
In the mobile repair industry, the P15E is a “go-to” replacement for several specific hardware issues:
-
False Overheating Warnings: The phone shows a “Battery too hot” error even when it is cool. This is often caused by a failure in the P15E’s temperature-sensing circuit.
-
Slow Charging: The device may only charge at 500mA (standard USB speed) because the I²C “handshake” for fast charging has failed.
-
No OTG Function: The phone charges fine but refuses to recognize USB drives or external keyboards.
-
Fake Charging: The charging icon is visible, but the battery percentage never increases.
Pin Configuration Overview (WLCSP-20)
| Pin Groups | Signal Names | Description |
| Power Input | VBUS, PMID | Main USB power input and bypass points. |
| Switching | SW | Connects to the external inductor for buck/boost. |
| Data/Control | SCL, SDA | I²C clock and data lines for system communication. |
| Battery | VBAT, CSIN | Connection to the positive battery terminal and current sense. |
| Status | STAT, OTG | Open-drain status indicator and OTG enable pin. |
| Ground | PGND | Power ground return for high-current transistors. |
Technical Interchangeability
It is worth noting that the P15E is often interchangeable with or branded as PSC5415E, P25E, or 6937 in various supply chains. While the laser etching on the chip might vary depending on the manufacturer (Prisemi vs. Samsung’s internal branding), the pinout and electrical characteristics remain compatible for most Samsung Exynos-based boards.
