PM 3003A Original Mobile Phone IC
Enhance Your Device’s Efficiency
The PM 3003A Original Mobile Phone IC is designed to provide reliable and efficient performance for modern mobile devices. Engineered with precision, this IC ensures seamless operation, keeping your device functioning smoothly and effectively. PM 3003A Original Mobile Phone IC
High-Performance & Durability
Crafted with advanced technology, the PM 3003A delivers outstanding durability and performance. Its robust construction makes it ideal for maintaining your device’s long-term reliability, even under rigorous usage conditions. PM 3003A Original Mobile Phone IC
Perfect Compatibility
Whether for replacements or upgrades, the PM 3003A Original Mobile Phone IC is perfectly suited for a wide range of mobile phone models. Its compatibility and ease of integration make it a top choice for technicians and DIY enthusiasts alike. PM 3003A Original Mobile Phone IC

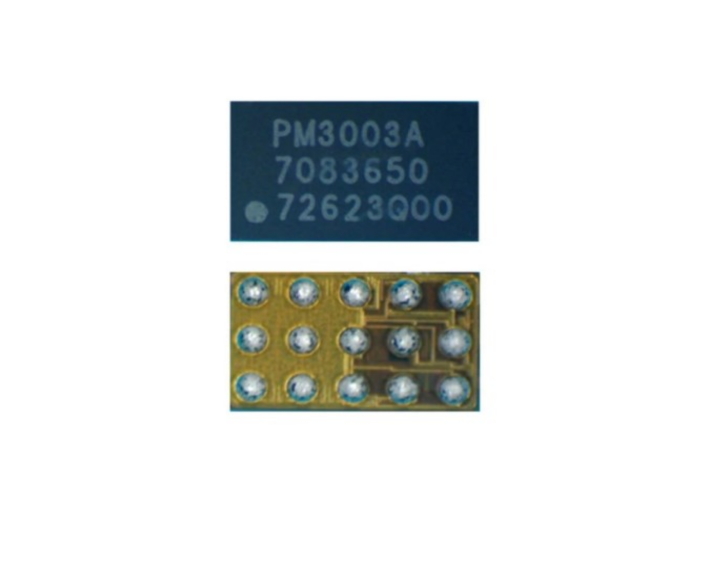

The PM3003A is a specialized Power Management Integrated Circuit (PMIC) manufactured by Qualcomm. Unlike general-purpose PMICs that handle the entire motherboard’s power, the PM3003A is often utilized as a sub-PMIC or a specialized voltage regulator in high-end smartphones (like the Vivo X27 and various Samsung/Xiaomi models). It is engineered to provide precise, high-efficiency power to specific subsystems such as the camera module, display drivers, or advanced RF components. PM 3003A Original Mobile Phone IC
Below is a comprehensive technical breakdown of its specifications. PM 3003A Original Mobile Phone IC
PM3003A Technical Specifications Table
| Feature | Detailed Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| IC Category | Specialized Power Management IC (PMIC) |
| Package Type | CWLNSP (Chip Scale Wafer Level Package) |
| Input Voltage Range | 3.0V to 5.5V (Typical) |
| Output Voltages | Multiple Configurable Rails (0.6V to 3.3V) |
| Maximum Output Current | Up to 3A per channel (High Current Support) |
| Switching Frequency | ~2.4 MHz (High frequency for smaller inductors) |
| Efficiency | >90% under typical load conditions |
| Communication Interface | SPMI / I2C (For real-time voltage scaling) |
| Operating Temperature | -40°C to +85°C |
| Safety Features | OVP, OCP, UVLO, and Thermal Shutdown |
| Common Device Pairings | Vivo X27, Samsung J2, Redmi Note 4/7 series |
Key Functional Overview
1. High-Efficiency Voltage Regulation
The PM3003A is designed primarily as a Synchronous Buck Converter. Its high switching frequency (2.4 MHz) is a critical design choice for modern smartphones. A higher frequency allows manufacturers to use much smaller external inductors and capacitors on the PCB, which is essential for maintaining the slim profile of modern mobile devices. With an efficiency rating of over 90%, it ensures that very little power is wasted as heat, thereby extending battery life. PM 3003A Original Mobile Phone IC
2. Dynamic Voltage Scaling (DVS)
One of the standout features of the PM3003A is its ability to perform Dynamic Voltage Regulation. Through its communication interface (usually I2C or SPMI), the main processor can tell the PM3003A to increase or decrease its output voltage in real-time. For example, when a camera sensor is in “Sleep Mode,” the IC drops the voltage to save power; when the camera is launched, it instantly ramps up the voltage to ensure high-performance image processing. PM 3003A Original Mobile Phone IC
3. Integrated Protection Mechanisms
To ensure the longevity of the smartphone’s motherboard, the IC includes:
-
Over-Voltage Protection (OVP): Shuts down the output if the voltage spikes, preventing damage to the processor.
-
Thermal Management: The IC monitors its own internal temperature. If it exceeds safe limits due to heavy gaming or fast charging, it throttles the power output.
-
Soft-Start Capability: This feature manages “inrush current” during startup, preventing a sudden surge from the battery that could cause system instability.
Repair and Maintenance Insights
For mobile technicians, the PM3003A is a critical chip to diagnose when a phone suffers from specific subsystem failures.
-
Failure Symptoms: If this IC fails, the phone may exhibit “Half-Short” conditions, where the device turns on but specific features (like the camera or display) fail to initialize. In some cases, a shorted PM3003A can prevent the entire device from booting.
-
Replacement Note: The CWLNSP package is extremely delicate. It has no lead “legs”; instead, it uses tiny solder balls on the underside. Replacing this requires a high-precision heat gun set to approximately 340°C–360°C and a steady hand to avoid “bridging” the pins.
Comparison with Standard PMICs
While a “Master PMIC” (like the PM8953) handles the overall power-on sequence and charging, the PM3003A acts as a specialized assistant. It is “Original” in the sense that it is a proprietary Qualcomm silicon designed to work seamlessly within the Snapdragon ecosystem, ensuring that noise-sensitive components receive the cleanest power possible.
