Name: Best PM 4250 Mobile Phone IC - gaffarmarketdelhi.com
Price: 329.00 INR
Availability: InStock

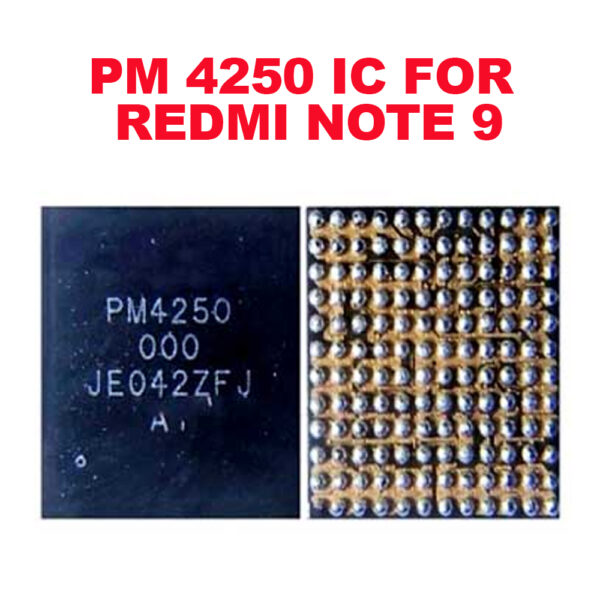

PM 4250 Mobile Phone IC

Unmatched Performance and Efficiency

The PM 4250 Mobile Phone IC stands out as a cutting-edge chipset meticulously engineered to deliver optimal performance for modern mobile devices. Designed with efficiency in mind, it ensures prolonged battery life while maintaining seamless operation for demanding applications. PM 4250 Mobile Phone IC

Advanced Compatibility

This IC is compatible with a wide range of smartphone models, making it an ideal solution for manufacturers and tech enthusiasts alike. The PM 4250 integrates effortlessly, ensuring smooth functionality without compromising device performance. PM 4250 Mobile Phone IC

Built to Last

Constructed with premium materials and advanced manufacturing techniques, the PM 4250 excels in durability and reliability. It provides a solid foundation for mobile devices, catering to the increasing demands of today’s tech-savvy consumers.

The PM4250 is a modern, high-efficiency Power Management Integrated Circuit (PMIC) designed by Qualcomm. Unlike the older PM8940, the PM4250 is engineered for newer mid-tier smartphones, specifically those running on the Snapdragon 662 and Snapdragon 460 platforms. PM 4250 Mobile Phone IC

It is the primary power regulator for several popular devices like the Xiaomi Redmi 9T, Poco M3, and various Motorola and Vivo models. Below is the comprehensive 600-word technical breakdown and specification guide.

PM4250 Technical Specifications Table

Feature Category	Detailed Specification
Manufacturer	Qualcomm Technologies, Inc.
IC Part Number	PM4250 (often followed by suffix 000/001)
Package Type	QFN-48 (Quad Flat No-Leads)
Dimensions	Approx. 6.0mm x 6.0mm
Input Voltage (VIN)	2.5V to 4.8V (Li-ion/Li-Poly compatible)
Output Channels	20+ Independent Programmable Rails
High-Current Buck Rails	Up to 5A peak output for CPU cores
Control Protocol	SPMI (System Power Management Interface)
Protection Suites	OVP, UVLO, Thermal Shutdown, ESD Protection
Compatibility	Snapdragon 662, 460, and similar architectures
Operating Temp	-40°C to +125°C (Extended Thermal Range)

Deep-Dive Functional Analysis

1. Advanced Power Architecture

The PM4250 is not just a voltage regulator; it is a switching power supply system. It utilizes high-frequency Buck Converters to step down battery voltage to the precise levels required by the processor ( $V_{core}$ typically around 0.8V to 1.1V).

The integration of Low-Dropout (LDO) Regulators ensures that sensitive analog components, such as the camera sensors and RF (Radio Frequency) modules, receive “clean” electricity without the switching noise that can interfere with signal reception or image quality. PM 4250 Mobile Phone IC

2. Charging and Battery Logic

While the PM4250 manages the main system rails, it also handles the Battery Management System (BMS) communication. It monitors the battery’s temperature and voltage via the BATT_THERM and BATT_ID lines. PM 4250 Mobile Phone IC

Safety First: If the battery exceeds $45^\circ\text{C}$ during charging, the PM4250 will automatically reduce the charging current to prevent swelling or explosion. PM 4250 Mobile Phone IC
Fuel Gauge: It provides high-accuracy data to the Android OS to show the exact battery percentage you see on your screen. PM 4250 Mobile Phone IC

3. Power-On Sequencing

One of the most complex tasks of the PM4250 is managing the Boot Sequence. When you press the power button, the IC does not turn everything on at once. It follows a strict “Power Map”:

S1 Rail: Powers the essential digital logic.
LDOs: Activate the RAM and Flash Storage.
Core Rails: Finally, the CPU is given power to begin the bootloader process.

If any of these rails fail to reach their target voltage (e.g., $1.8\text{V}$ for the I/O rail), the PM4250 will trigger a “latch-off” to prevent a short circuit from burning the motherboard.

Repairing and Troubleshooting Guide

For technicians, the PM4250 is a common failure point in “Dead Phone” scenarios.

Common Failure Symptoms:

No Power: The phone shows 0.01A or 0.05A current on the DC Power Supply and doesn’t boot.
Charging Errors: The phone shows a “Battery Error” or “Temperature Too Low” message even when the battery is fine.
Restart Loops: If the PM4250 cannot maintain a stable $V_{dd}$ rail for the RAM, the phone will constantly reboot at the logo.

Professional Rework Tips:

Because this is a QFN package, it has no visible pins; the solder joints are underneath the chip.

Heat Profile: Use a hot air station set to $340^\circ\text{C} - 360^\circ\text{C}$ with medium air-flow.
Alignment: The “Dot” on the corner of the IC must match the marking on the PCB perfectly. Even a 0.1mm misalignment will cause a short between the Ground and the 4.2V Battery rail.
