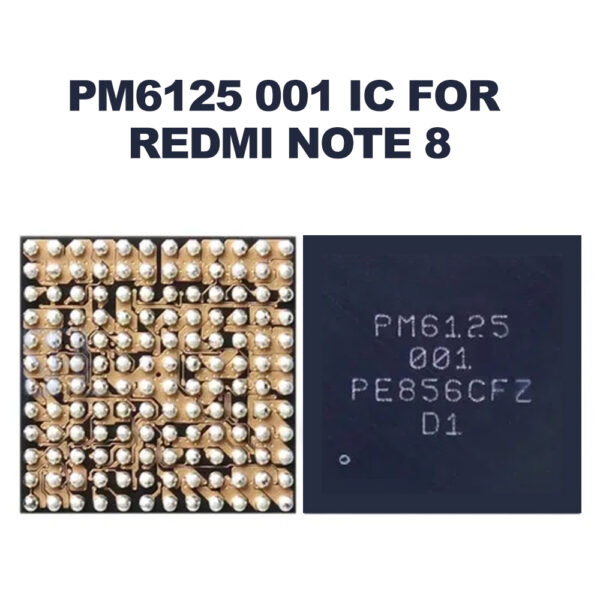

PM 6125 Mobile Phone IC
Introducing the PM 6125 Mobile Phone IC
The PM 6125 Mobile Phone IC is a remarkable solution designed to enhance smartphone performance while maintaining reliability. This advanced integrated circuit ensures seamless power management and supports optimal device functionality.
Outstanding Features and Benefits
Engineered with precision, the PM 6125 boasts exceptional power efficiency, reducing energy consumption and maximizing battery life for mobile devices. Crafted for adaptability, it integrates easily with various smartphone designs, catering to both leading-edge models and mid-range devices.
Why Choose the PM 6125 Mobile Phone IC?
Choose the PM 6125 Mobile Phone IC for its reliable performance, superior power management, and versatile compatibility. Whether you’re upgrading devices or developing new smartphone models, this component delivers consistent results and dependable efficiency.
The PM6125 is a high-performance Power Management Integrated Circuit (PMIC) designed by Qualcomm, specifically engineered to work alongside mid-tier processors like the Snapdragon 665 and Snapdragon 460. Unlike older PMICs, the PM6125 is built on a more advanced fabrication process to ensure high energy efficiency and a smaller footprint on the PCB (Printed Circuit Board).
As the primary power controller, it is responsible for distributing precise voltages to the CPU, GPU, LPDDR4X RAM, and internal storage (UFS/eMMC).
PM6125 Detailed Technical Specifications
| Feature | Detailed Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Number | PM6125 |
| Associated Chipsets | Snapdragon 665, 662, 460 |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Input Voltage (VPH_PWR) | 2.5V to 4.8V (Standard Battery Range) |
| Switching Regulators (Bucks) | 6 to 8 High-Efficiency Phases |
| LDO Regulators | 20+ Low-Dropout Regulators |
| Efficiency Rate | Up to 92% for Core Rails |
| Control Interface | SPMI (System Power Management Interface) |
| Current Handling | Up to 10A peak for Core Rails |
| Safety Mechanisms | Thermal Shutdown, OVP, UVLO, Short Circuit Protection |
| Audio Integration | Inbuilt Codec support for basic audio functions |
Core Architecture and Design
The PM6125 is not just a voltage converter; it is the “brain” of the phone’s electrical system. Its architecture is divided into several specialized blocks:
1. Adaptive Buck Converters
The PM6125 utilizes Switch-Mode Power Supplies (SMPS), commonly known as Buck Converters. These are essential for the processor. For example, when you play a high-end game, the CPU requires a sudden burst of current. The PM6125 uses “Dynamic Voltage Scaling” to increase or decrease the output voltage in real-time, ensuring the processor gets exactly what it needs without wasting battery life.
2. Clean LDO (Low Dropout) Rails
Sensors, SIM cards, and Camera modules are extremely sensitive to electrical “noise.” The PM6125 features over 20 LDOs that filter out ripples from the battery, providing a smooth, flat-line DC voltage (like 1.8V or 2.8V). This ensures that your camera photos don’t have grain caused by electrical interference.
3. Power Sequencing
A modern smartphone motherboard has a strict “First-In, Last-Out” power rule. The PM6125 manages the Power-On Sequence. If the RAM is powered before the CPU is ready, the phone will crash. The PM6125 ensures that every millisecond of the boot process is synchronized perfectly.
Comparison with Previous Generations (e.g., PM8940)
The PM6125 represents a significant jump in technology:
-
Heat Dissipation: Due to better silicon mapping, it generates 15-20% less heat during heavy tasks.
-
Integration: It integrates more functions, reducing the number of external capacitors required on the motherboard.
-
Precision: The voltage tolerances are much tighter, supporting the thinner $11\text{nm}$ and $14\text{nm}$ architecture of modern CPUs.
Troubleshooting and Repair Insights
In the mobile repairing industry, the PM6125 is a common subject of “Reballing.” Because it sits near the CPU, it is exposed to constant thermal expansion and contraction.
Signs of a Faulty PM6125:
-
Dead Condition: The device shows no response to the power button, and the DC Power Supply machine shows a “stuck” current reading (usually between 0.05A to 0.15A).
-
Missing Voltages: Using a multimeter, if you find that the VREG_S4 or VREG_L5 lines are missing 0V, the IC is likely defective.
-
Short Circuit: If the main VPH_PWR line is shorted to the ground, the PM6125 is often the culprit due to internal MOSFET failure.
