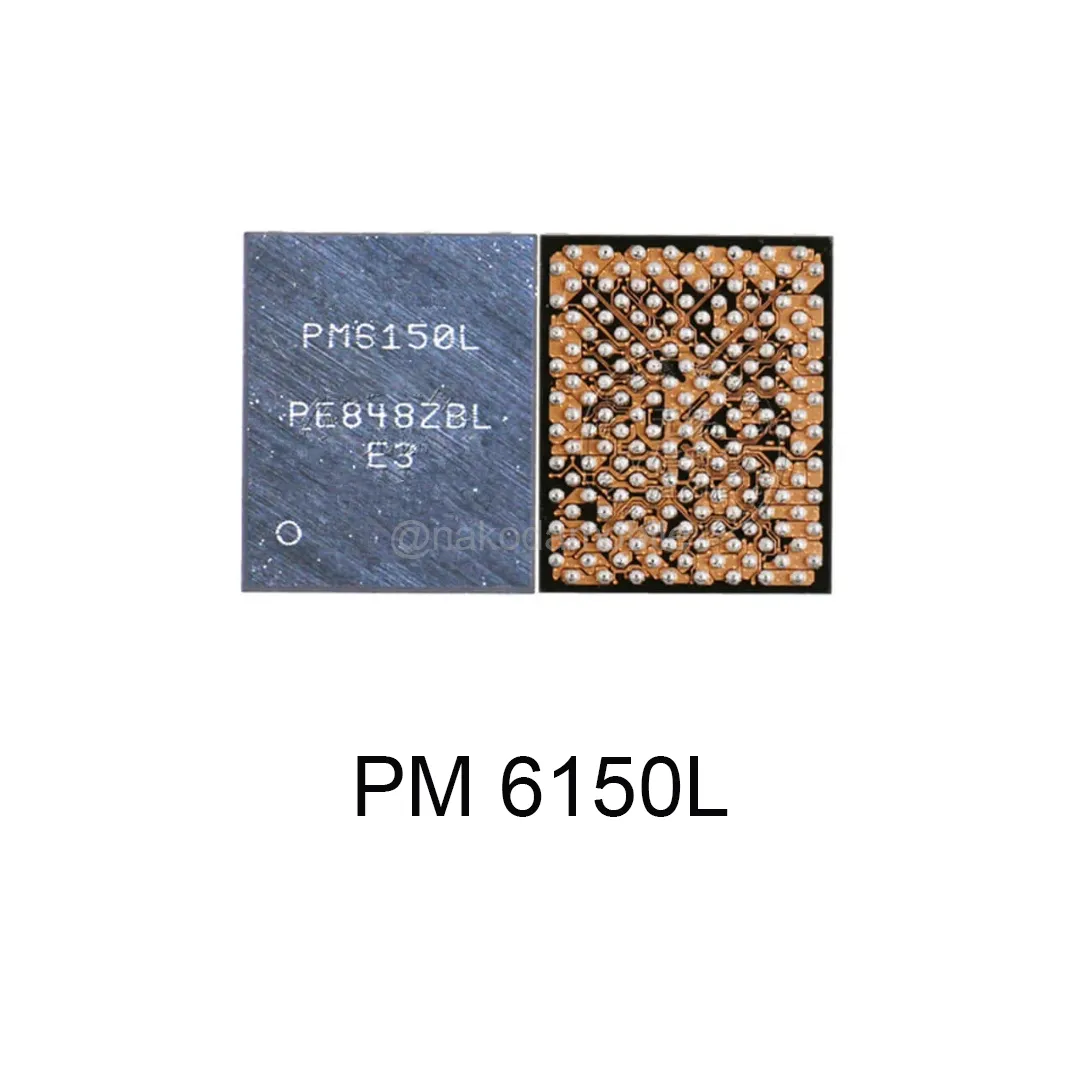

PM 6150L Mobile Phone IC
Reliable Power Management for Modern Devices
The PM 6150L Mobile Phone IC is designed to meet the power management needs of today’s advanced mobile devices. It delivers superior energy efficiency, ensuring your device performs at its best while maximizing battery life. PM 6150L Mobile Phone IC
Functional Overview
Unlike the primary PM6150, which handles the main CPU/GPU core voltages and system boot-up, the PM6150L acts as a “slave” or auxiliary controller. It is specifically designed to offload tasks that would otherwise cause the primary IC to overheat. PM 6150L Mobile Phone IC
-
Display & Backlight: Often contains the drivers for the LCD or AMOLED display power supplies, ensuring stable voltage even during high brightness. PM 6150L Mobile Phone IC
-
User Interface: Manages power for the Flash LED, vibrate motor (haptics), and various notification LEDs. PM 6150L Mobile Phone IC
-
Voltage Regulation: Utilizes Buck Converters for high-efficiency high-current tasks and LDOs (Low Dropout Regulators) for sensitive, low-noise components like sensors. PM 6150L Mobile Phone IC
Common Failure Symptoms
When the PM6150L fails, the device may exhibit specific “half-dead” symptoms rather than a total power failure:
-
Charging Issues: Phone stuck at 1% or “Unknown Battery” errors.
-
Display Faults: Backlight not working or “No Display” even though the phone vibrates.
-
Boot Loops: The device restarts at the logo because an auxiliary rail (like VDD_AUX) isn’t reaching its target voltage.
-
Thermal Issues: Excess heat near the secondary PMIC area during charging or camera use.
Compact Design With Cutting-Edge Technology
Engineered with innovation in mind, the PM 6150L IC features compact dimensions and advanced integration. Its design enables seamless compatibility with various mobile platforms, optimizing system performance without compromising on space requirements. PM 6150L Mobile Phone IC
Enhance Device Longevity and Functionality
Whether you’re developing flagship smartphones or efficient mobile gadgets, the PM 6150L IC supports a wide range of functionalities. It ensures smooth performance across applications while minimizing heat generation and power drain. PM 6150L Mobile Phone IC
The PM6150L is a secondary Power Management Integrated Circuit (PMIC) developed by Qualcomm, typically paired with the primary PM6150 IC. It is a critical component in mid-range smartphones (such as the Redmi Note 7 Pro, Note 9, and Samsung A70) responsible for managing specific high-drain power rails, user interface power, and advanced charging protocols. PM 6150L Mobile Phone IC
Key Specifications Table
The following table outlines the technical parameters and functional characteristics of the PM6150L IC based on industry datasheets and repair schematics. PM 6150L Mobile Phone IC
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Part Number | PM6150L (Common variants: 103, 000) |
| Package Type | WLCSP-103 (Wafer Level Chip Scale Package) or 144-BGA |
| Function | Secondary PMIC / Power Management Unit |
| Compatibility | Snapdragon 600 & 700 series (e.g., SM6150, SM7125) |
| Input Voltage Range | 3.6V to 4.4V (Typical Battery Voltage) |
| Output Rails | 11–12 Regulated Rails (Buck and LDO) |
| Charging Support | Quick Charge 3.0+ / PD 2.0 (Model dependent) |
| Interface | I²C / SPMI (System Power Management Interface) |
| Core Responsibilities | Display Power, Flash LED, Haptics, and Aux Rails |
| Thermal Protection | Integrated Thermal Shutdown & Overcurrent Protection |
Functional Overview
Unlike the primary PM6150, which handles the main CPU/GPU core voltages and system boot-up, the PM6150L acts as a “slave” or auxiliary controller. It is specifically designed to offload tasks that would otherwise cause the primary IC to overheat. PM 6150L Mobile Phone IC
-
Display & Backlight: Often contains the drivers for the LCD or AMOLED display power supplies, ensuring stable voltage even during high brightness. PM 6150L Mobile Phone IC
-
User Interface: Manages power for the Flash LED, vibrate motor (haptics), and various notification LEDs. PM 6150L Mobile Phone IC
-
Voltage Regulation: Utilizes Buck Converters for high-efficiency high-current tasks and LDOs (Low Dropout Regulators) for sensitive, low-noise components like sensors. PM 6150L Mobile Phone IC
Common Failure Symptoms
When the PM6150L fails, the device may exhibit specific “half-dead” symptoms rather than a total power failure:
-
Charging Issues: Phone stuck at 1% or “Unknown Battery” errors.
-
Display Faults: Backlight not working or “No Display” even though the phone vibrates.
-
Boot Loops: The device restarts at the logo because an auxiliary rail (like VDD_AUX) isn’t reaching its target voltage.
-
Thermal Issues: Excess heat near the secondary PMIC area during charging or camera use.
Repair & Replacement Notes
Note: Professional BGA soldering tools are required for replacement. The chip is sensitive to heat; technicians typically use a hot air station at 260°C–280°C for removal.
Ensure the suffix (e.g., 103) matches your original part, as firmware handshakes between the SoC and the PMIC can vary between revisions, leading to “Battery Not Recognized” errors if an incompatible version is installed.
