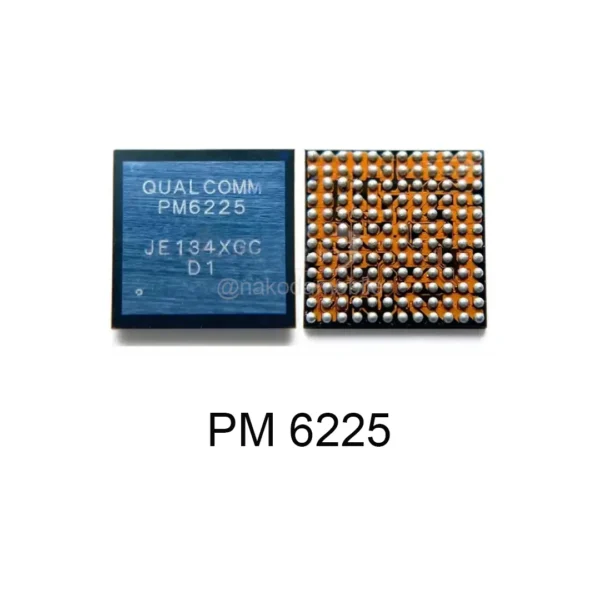

PM 6225 Mobile Phone IC
High-Quality Mobile Phone IC for Optimal Functionality
The PM 6225 Mobile Phone IC is designed to ensure seamless device performance and reliability. It combines innovative design and cutting-edge technology to deliver consistent results across various mobile phone applications. PM 6225 Mobile Phone IC
Streamlined and Energy-Efficient Design
Engineered for efficiency, the PM 6225 is built to reduce power consumption without compromising on performance. Ideal for smartphones, it supports advanced functionalities while promoting battery longevity and device stability. PM 6225 Mobile Phone IC
Versatile and Easy Integration
With a compact structure and user-friendly design, the PM 6225 Mobile Phone IC fits effortlessly into diverse mobile phone manufacturing processes. This versatile IC is tailored for manufacturers who demand reliability and performance in every component. PM 6225 Mobile Phone IC
The PM6225 (often designated as PM6225-001) is a high-performance Power Management Integrated Circuit (PMIC) predominantly used in mid-range Android smartphones.1 It serves as the “beating heart” of the device’s electrical system, responsible for converting battery voltage into the various precise levels required by the processor, memory, and display.2
Commonly found in devices like the Huawei Nova 9SE, OPPO A36, Vivo Y32, and Redmi Note 11, this IC is critical for resolving issues like “dead” phones, charging failures, or sudden power-offs.3
Technical Specifications Table
| Feature | Specification Details |
| Model Number | PM6225 / PM6225-001 |
| IC Type | Power Management Integrated Circuit (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Pin/Ball Count | 64-Ball (typically in a fine-pitch 4x4mm layout) |
| Input Voltage Range | $3.4\text{V}$ to $4.4\text{V}$ (Typical Mobile Battery Range) |
| Output Rails | Multi-rail (Buck Converters & LDOs) |
| Core Voltages | $1.1\text{V}$ (CPU/GPU), $1.8\text{V}$ (I/O), $2.8\text{V}$ (Analog/LDO) |
| Operating Temp | $0^\circ\text{C}$ to $100^\circ\text{C}$ (Standard mobile operating range) |
| Switching Frequency | Approximately $1.5\text{MHz}$ to $2.2\text{MHz}$ |
| Dissipation Power | $0.5\text{W}$ to $0.6\text{W}$ |
| Primary Application | Qualcomm and MediaTek mid-range chipset platforms |
Key Features and Functionalities
The PM6225 is more than just a voltage regulator; it is a complex system that manages the entire power lifecycle of a smartphone: PM 6225 Mobile Phone IC
-
Multi-Phase Buck Regulation: It uses high-efficiency switching regulators to step down battery voltage for the SoC (System on Chip).4 This minimizes heat generation compared to older linear regulators.5
-
Low Dropout Regulators (LDOs): Provides “clean,” low-noise power to sensitive components like the camera sensors, audio DACs, and SIM card interfaces.
-
Power Sequencing: Ensures that different parts of the phone turn on in the correct order (e.g., CPU first, then RAM) to prevent system crashes or hardware damage. PM 6225 Mobile Phone IC
-
Thermal Protection: Includes internal sensors that shut down the IC if it detects overheating, protecting the motherboard from permanent damage. PM 6225 Mobile Phone IC
Common Symptoms of PM6225 Failure
Technicians often target this IC when a device exhibits the following behaviors:
-
No Power / Dead Boot: The phone shows no sign of life and does not respond to the power button.
-
Stuck Charging: The device shows a charging icon but the battery percentage never increases (often a failure in the charging control loop).6
-
Short Circuit: High current draw on a DC power supply (e.g., $0.5\text{A}$ or higher) before pressing the power button often indicates a blown PM6225. PM 6225 Mobile Phone IC
-
Overheating: The area near the CPU becomes excessively hot immediately after connecting a battery. PM 6225 Mobile Phone IC
Repair and Installation Notes
Replacing the PM6225 requires advanced micro-soldering skills. Because it is a BGA package, the connections are located underneath the chip in a grid of tiny solder balls.7
-
Rework Temperature: Typically requires a hot air station set between 320°C and 350°C depending on the lead-free solder used.
-
Alignment: Precision is key; even a $0.1\text{mm}$ misalignment can bridge two power rails, potentially killing the CPU.
-
Flux Choice: High-quality, non-conductive BGA flux is essential to ensure the solder balls flow correctly into their pads.
