PM 6375 Mobile Phone IC
Enhance Mobile Performance with PM 6375
Discover the PM 6375 Mobile Phone IC, engineered to deliver unparalleled performance and efficiency for your mobile devices. Designed with cutting-edge technology, this IC ensures optimal power management, extending battery life while maintaining seamless device operations. PM 6375 Mobile Phone IC
Reliable and Efficient Design
The PM 6375 is built for reliability, making it an ideal choice for modern smartphones. Its compact design integrates critical functionalities, enabling smooth handling of power distribution and thermal management in a wide variety of mobile applications. PM 6375 Mobile Phone IC
Why Choose the PM 6375 Mobile Phone IC?
With its advanced features and innovative technology, the PM 6375 stands out as a dependable option to enhance your device’s capability. Whether you are manufacturing smartphones or upgrading your current designs, this IC will support top-tier performance and energy efficiency for a superior user experience.PM 6375 Mobile Phone IC
The PM6375 is a highly specialized Power Management Integrated Circuit (PMIC) primarily found in high-performance flagship and mid-high range smartphones, most notably the Xiaomi 12 and Xiaomi 12 Pro. Manufactured by Qualcomm (often labeled as the PM6375-001), it serves as the central nervous system for power distribution, managing critical voltage rails for the CPU, GPU, and high-speed charging systems. PM 6375 Mobile Phone IC
Below are the detailed specifications and technical parameters for the PM6375.
PM6375 Technical Specifications
| Parameter | Specification Details |
| Manufacturer | Qualcomm |
| Model Number | PM6375-001 |
| IC Type | Power Management IC (PMIC / PMU) |
| Function | Power Sequencing, Voltage Regulation, Battery Management |
| Supported Devices | Xiaomi 12, Xiaomi 12 Pro, Honor 30 Series |
| Compatible SoCs | Snapdragon 8 Gen 1, Snapdragon 778G |
| Charging Support | Quick Charge (QC) 4+, PD 3.0 (Power Delivery) |
| Package Type | BGA (Ball Grid Array) |
| Operating Voltage | Primary 5V supply (internal rails vary) |
| Maximum Current | Up to 3.0A (Application dependent) |
| Efficiency | ~95% Peak Efficiency |
| Operating Temp | $0^\circ\text{C}$ to $100^\circ\text{C}$ (Standard mobile range) |
| Storage Temp | $-40^\circ\text{C}$ to $+125^\circ\text{C}$ |
| Communication | $\text{I}^2\text{C}$ Control Interface (Address 0x6A) |
Key Features and Functional Architecture
The PM6375 is designed to handle the rigorous power demands of modern 5G chipsets. It doesn’t just “turn on” the phone; it orchestrates a complex sequence of power-up events to ensure the processor isn’t damaged by sudden voltage spikes.
1. Advanced Power Sequencing
The IC manages the Power-On Reset (POR) and the timing of various voltage rails ($VDD\_CPU$, $VDD\_GPU$, and $VDD\_MEM$). This ensures that the RAM and CPU receive power in the exact millisecond-precision order required to boot the Android OS successfully.
2. Fast Charging & Thermal Management
One of its standout roles is in the charging loop. It works in tandem with the Battery Management System (BMS) to:
-
Negotiate fast charging protocols (QC 4+ / PD 3.0).
-
Monitor thermal sensors to prevent the device from overheating during high-wattage charging.
-
Minimize energy waste through high-efficiency switching regulators.
3. Integrated Protection Mechanisms
To safeguard the motherboard, the PM6375 includes:
-
Overvoltage Protection (OVP): Shuts down input if the charger fluctuates.
-
Overcurrent Protection (OCP): Prevents short circuits on the motherboard from causing a fire.
-
Thermal Throttling: Reduces power throughput if the silicon die exceeds safe temperatures.
Repair and Identification
For technicians and engineers, the PM6375 is a common culprit in “dead” or “no-charge” scenarios.
-
Symptoms of Failure: Device stuck at 0.01A current draw on a USB power meter, failure to boot after a drop or liquid damage, or “No Charger” errors despite a functional port.
-
Replacement Note: Replacing this IC requires professional BGA Reballing skills. It is mounted using micro-solder balls that require a hot air station set to approximately $230^\circ\text{C}$ to $250^\circ\text{C}$ for safe removal.
-

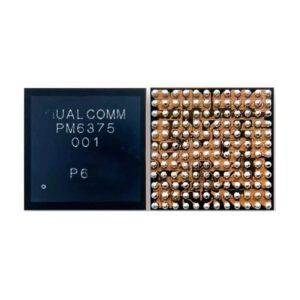

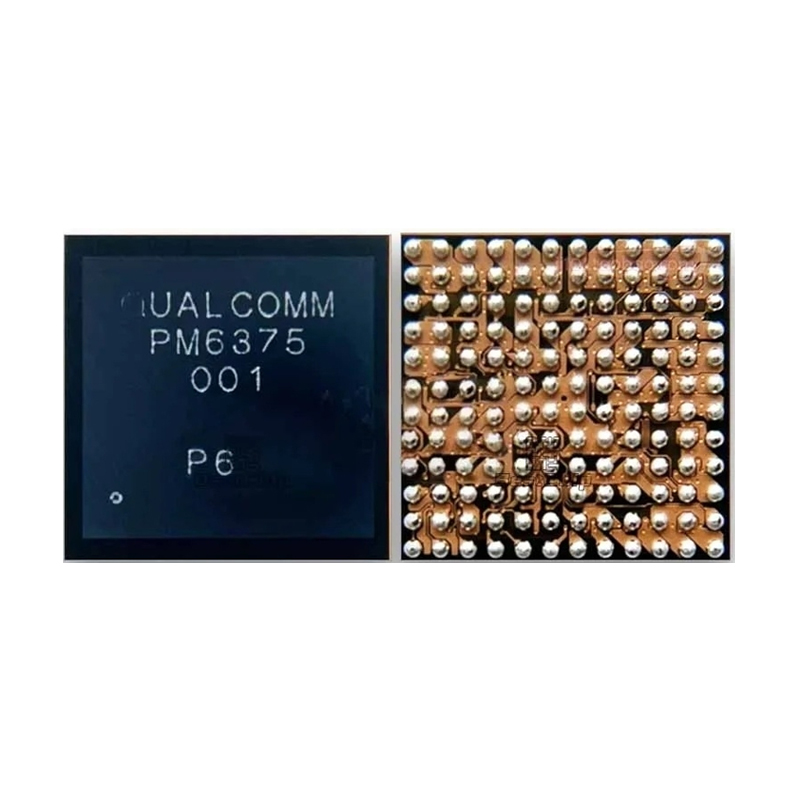

Verification: Always check the top marking on the chip. Authentic units will be laser-etched with “PM6375 001” and a batch code.
Performance Impact
In the Xiaomi 12 series, the integration of this specific IC is what allows for stable performance during gaming. By managing the Dynamic Voltage and Frequency Scaling (DVFS), the PM6375 ensures that the CPU gets exactly the amount of power it needs—no more, no less—which significantly extends battery life during daily use.
