PM 640 Mobile Phone IC
High-Quality IC for Mobile Devices

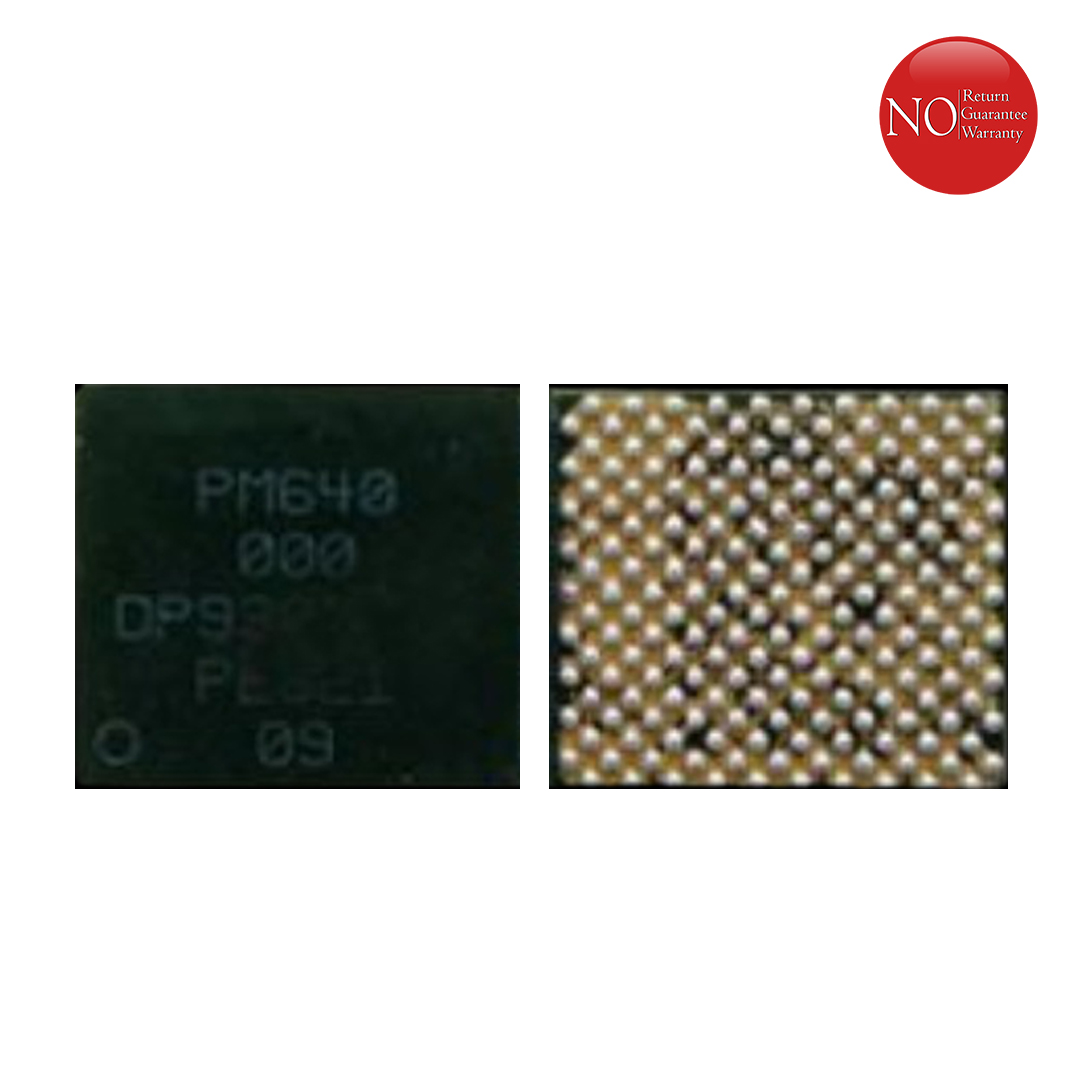

The PM 640 Mobile Phone IC is a versatile and reliable integrated circuit designed to enhance the performance of mobile devices. Engineered with precision, this component ensures smooth functionality and seamless integration into various smartphone models. PM 640 Mobile Phone IC
Optimized for Superior Performance
With its state-of-the-art construction, the PM 640 delivers exceptional efficiency and reliability. Whether you’re designing, repairing, or optimizing smartphones, this IC ensures outstanding operational stability, reducing power consumption and boosting overall device performance. PM 640 Mobile Phone IC
Perfect Solution for Modern Mobile Needs
The PM 640 Mobile Phone IC is tailored for compatibility across a wide range of devices, making it an ideal choice for manufacturers, technicians, and DIY enthusiasts. Its robust structure and reliable output ensure durability, making it a cost-effective and long-lasting solution. PM 640 Mobile Phone IC
The PM640 is a highly integrated Power Management Integrated Circuit (PMIC) developed primarily by Qualcomm. It serves as the “beating heart” of the power distribution system in mid-range Android smartphones, most notably those powered by Snapdragon chipsets.
While individual data sheets are often proprietary to manufacturers like Oppo, Vivo, and Samsung, the following technical profile has been compiled based on industry-standard repair data and hardware specifications.
PM640 IC Technical Specifications
| Feature | Detailed Specification |
| Manufacturer | Qualcomm (Primary) |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Package Type | SMD (Surface Mount Device) / BGA (Ball Grid Array) |
| Pin Count | 40 Pins (Standard variant) |
| Output Rails | Typically 6-8 Independent Regulated Outputs |
| Output Type | Adjustable/Programmable via I2C |
| Operating Voltage | 3.7V to 4.4V (Standard Li-ion/Polymer Battery Range) |
| Key Functions | Buck/Boost Conversion, LDO Regulation, Battery Charging Control |
| Thermal Protection | Integrated Thermal Shutdown (Over-temperature protection) |
| Compatibility | Snapdragon 400/600 series chipsets |
| Typical Weight | ~0.01g to 0.03g (Component only) |
Key Functional Breakdown
The PM640 is responsible for converting the raw voltage of the phone’s battery into various stable voltages required by different sub-systems.
1. Voltage Regulation
The IC contains multiple Buck Converters (Step-down) and LDOs (Low Drop-Out regulators). These provide the precise $1.1V$, $1.8V$, and $2.8V$ rails needed for the CPU core, DDR memory, and camera sensors respectively.
2. Charging Management
In many mid-range designs (like the Oppo A3s), the PM640 works in tandem with the charging port to manage the current flow into the battery. It ensures the battery does not overcharge and manages the transition between USB power and battery power.
3. Logic & Control
The IC communicates with the main Application Processor (AP) via an I2C or SPMI bus. This allows the phone’s software to dynamically adjust voltages (Dynamic Voltage Scaling) to save battery life during idle periods.
Common Applications
The PM640 is a staple in the repair industry because it is used across a wide variety of popular “budget-flagship” and mid-range devices.
-
Oppo: A3s, A5 (2018), A7.
-
Xiaomi/Redmi: Redmi Note 7/8 series (specific variants), Play 8C.
-
Vivo: Various Y-series models (e.g., Y91, Y93).
-
Samsung: Select Galaxy M and A series models. PM 640 Mobile Phone IC
Signs of a Malfunctioning PM640
Since this IC controls the power flow, a failure usually results in a “Dead” phone. Common symptoms include:
-
No Power: The device refuses to turn on even with a charged battery. PM 640 Mobile Phone IC
-
Short Circuit: Excessive heat near the PMIC area on the motherboard. PM 640 Mobile Phone IC
-
Stuck at Logo: Failure to provide enough current to the CPU during the boot sequence. PM 640 Mobile Phone IC
-
Charging Issues: The phone shows it’s charging but the percentage never increases (often a “Fake Charging” symptom). PM 640 Mobile Phone IC
Note for Technicians: Replacing the PM640 requires professional micro-soldering tools. Since it is a BGA chip, it must be “reballed” or replaced using a hot-air rework station at temperatures typically around 330°C to 350°C depending on the solder type. PM 640 Mobile Phone IC
