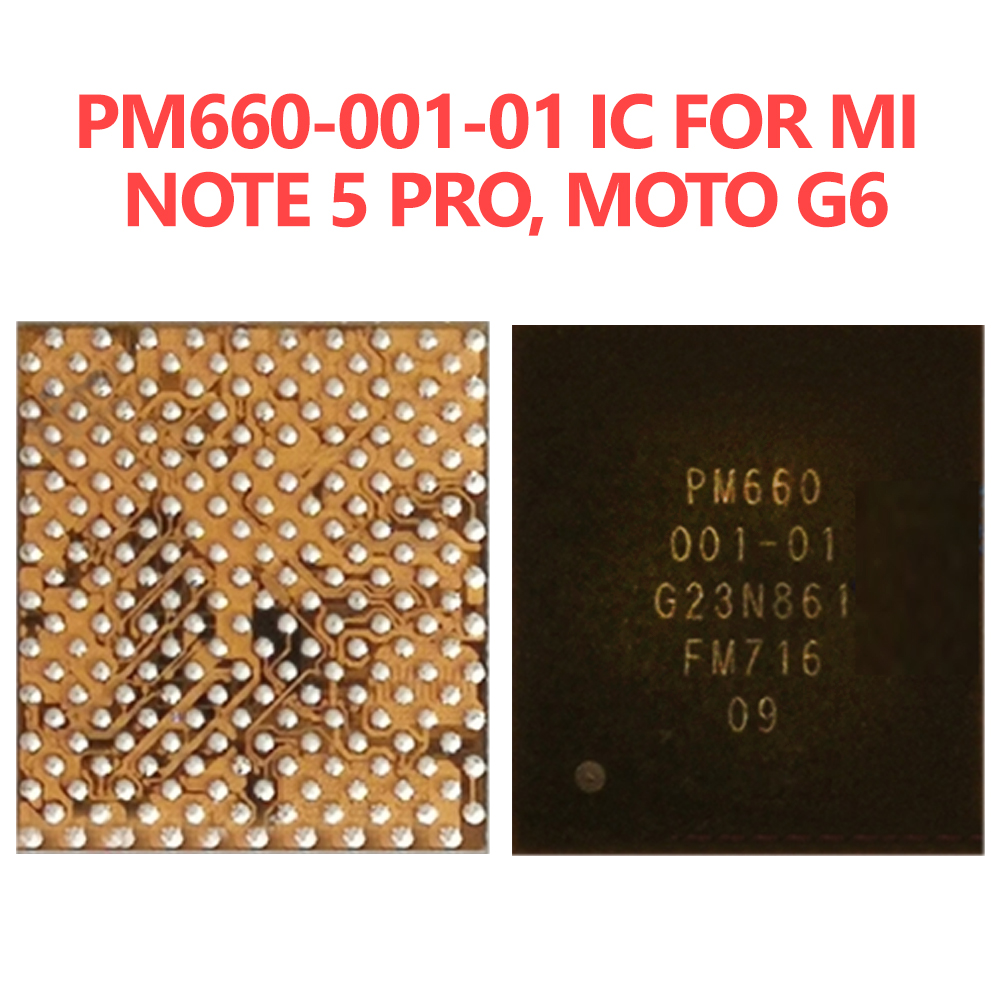

PM 660-001-1 Original Mobile Phone IC
High-Quality PM 660-001-1 IC for Mobile Phones
The PM 660-001-1 Original Mobile Phone IC is a premium component designed to deliver seamless performance for your devices. Crafted with precision, this IC ensures reliability and efficiency to meet your hardware needs. PM 660-001-1 Original Mobile Phone IC
Enhance Device Performance
Built to support optimal functionality, the PM 660-001-1 IC enhances your mobile phone’s performance. Its durable design and compatibility make it an essential upgrade or replacement for technicians and DIY enthusiasts.
Why Choose the PM 660-001-1?
When it comes to reliable mobile components, the PM 660-001-1 stands out for its originality and unmatched durability. Whether you are repairing or assembling a mobile device, trust this IC to deliver consistent and high-quality performance.
The PM660-001-1 is a high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is specifically designed to work in tandem with mid-range and high-tier Snapdragon chipsets (most notably the Snapdragon 660 and 630 series) to manage the complex electrical requirements of modern mobile devices.
Think of it as the “central nervous system” for your phone’s battery life—it ensures that everything from the display backlight to the processor cores receives the exact voltage needed without wasting energy or overheating.
Technical Specifications Overview
Below is the detailed breakdown of the PM660-001-1’s architecture and capabilities.
| Feature | Specification |
| Manufacturer | Qualcomm |
| Part Number | PM660-001-1 |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Pin Count | 180+ pins (approximate, varies by revision) |
| Input Voltage Range | 2.5V to 4.8V (Standard Li-ion battery range) |
| Output Rails | 20+ Independent Buck/LDO Regulators |
| Charging Support | Qualcomm Quick Charge 3.0 / 4.0 Compatibility |
| Communication Interface | SPMI (System Power Management Interface) |
| Safety Features | OVP, UVP, OTP (Over-temp), and Short-circuit protection |
Key Functional Modules
1. Advanced Voltage Regulation
The PM660-001-1 utilizes a combination of Buck Converters (for high efficiency at high currents) and Low-Dropout Regulators (LDOs) (for noise-sensitive components like cameras and audio). This allows the device to step down battery voltage to the very specific levels required by 14nm or 10nm processors, often as low as $0.8V$. PM 660-001-1 Original Mobile Phone IC
2. Battery Management & Charging
One of its standout features is the integration of the charging logic. It supports high-efficiency “Switching Chargers.” PM 660-001-1 Original Mobile Phone IC
-
Quick Charge Support: It manages the negotiation between the phone and the wall adapter to pull higher wattage safely. PM 660-001-1 Original Mobile Phone IC
-
Fuel Gauge: It contains precise circuitry to monitor the battery’s State of Charge (SoC) and State of Health (SoH), ensuring your percentage indicator is accurate. PM 660-001-1 Original Mobile Phone IC
3. Peripheral Power Control
Beyond the CPU, this IC manages:
-
Display Power: Providing the bias voltages for LCD or AMOLED panels. PM 660-001-1 Original Mobile Phone IC
-
Haptics: Driving the vibration motor. PM 660-001-1 Original Mobile Phone IC
-
Audio: Often houses basic codec support or power for external audio amplifiers. PM 660-001-1 Original Mobile Phone IC
Implementation & Pinout Logic
The PM660 series uses an SPMI interface, which is a high-speed bi-directional bus. This allows the main Application Processor (AP) to tell the PMIC to “ramp up” voltage instantly when you open a heavy app (like a game) or “throttle down” when the phone is idling to save battery. PM 660-001-1 Original Mobile Phone IC
Environmental & Physical Specs
-
Operating Temperature: $-40°C$ to $+125°C$ (Industrial grade durability).
-
Form Factor: The WLCSP design is extremely thin, allowing it to fit into the cramped, multi-layered PCBs found in modern “slim” smartphones.
Common Usage Scenarios
While primarily found in smartphones like the Xiaomi Mi Note 3 or Nokia 7 Plus, the PM660-001-1 is also used in:
-
IoT Gateways: Where power efficiency is critical for always-on connectivity.
-
Tablets: Handling the larger current draws required by bigger screens.
-
Embedded Systems: High-end robotics controllers that use Snapdragon SoMs (System on Modules).
Note on Repairability: Because this is a BGA (Ball Grid Array) component, replacing a faulty PM660-001-1 requires professional microsoldering tools and a reballing stencil. It is highly sensitive to ESD (Electrostatic Discharge).
Summary of Efficiency
The PM660-001-1 is engineered to minimize “Quiescent Current”—the power the chip consumes just to stay awake. By keeping this value in the micro-amp range, it significantly extends the standby time of mobile devices.
