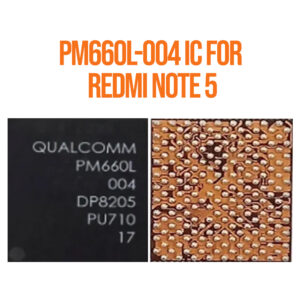

PM 660 L ORIGINAL Mobile Phone IC
Reliable PM 660 L Original Mobile Phone IC
Optimize your smartphone’s performance with the PM 660 L Original Mobile Phone IC. Designed for seamless integration, this component ensures efficient power management and superior functionality for your device. PM 660 L ORIGINAL Mobile Phone IC
High-Quality Engineering for Unmatched Durability
The PM 660 L IC is crafted with advanced engineering, guaranteeing long-lasting performance. It’s ideal for replacing faulty components, restoring your phone’s optimal functionality while maintaining manufacturer standards. PM 660 L ORIGINAL Mobile Phone IC
Perfect Fit for Multiple Smartphone Models
This IC is compatible with a wide range of smartphone models, making it a versatile choice for repairs and upgrades. Trust in its proven performance and dependable quality. PM 660 L ORIGINAL Mobile Phone IC
The PM660L is a highly integrated Power Management Integrated Circuit (PMIC) manufactured by Qualcomm. It is a staple in mid-range smartphones (specifically those using the Snapdragon 660 and 636 chipsets) and works in tandem with the primary PM660 IC. While the PM660 handles core processing power, the “L” variant (often designated as PM660L-004-01) typically focuses on auxiliary power functions like display backlighting, flash LED driving, and charging. PM 660 L ORIGINAL Mobile Phone IC
Technical Specification Overview

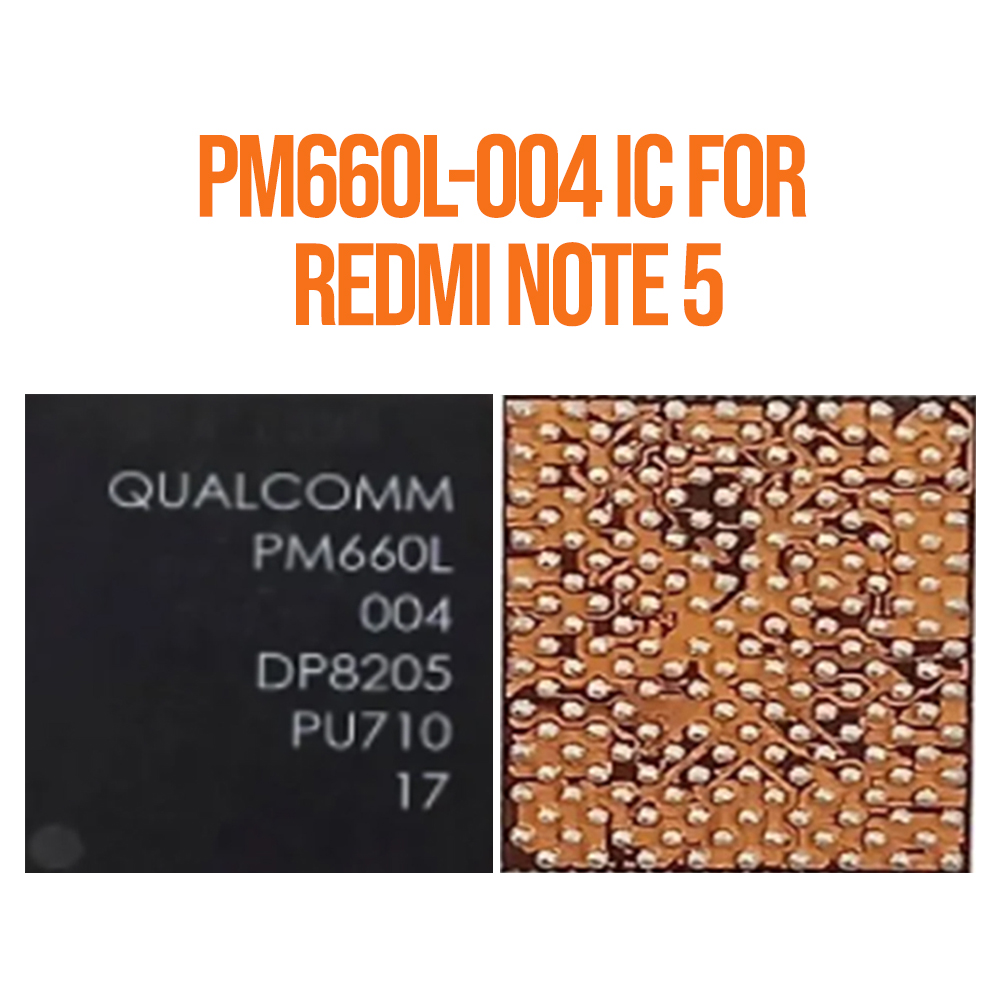

The PM660L utilizes a Ball Grid Array (BGA) package, which is standard for modern mobile motherboards to ensure high-density connection and thermal dissipation. PM 660 L ORIGINAL Mobile Phone IC
| Feature | Specification Details |
| Model Number | PM660L (Commonly 004-01) |
| Manufacturer | Qualcomm |
| Function | Secondary Power Management (PMIC) |
| Input Voltage Range | 3.5V to 4.7V (Battery/VPH_PWR) |
| Package Type | BGA-210 (High-density Ball Grid Array) |
| Key Roles | Backlight Control, Flash LED Driver, Charging Logic |
| Charging Support | Quick Charge 3.0 / 4.0 compatible logic |
| Internal Components | LDOs, Buck Converters, PWM Controllers |
| Operating Temp | -40°C to +125°C |
| Communication | SPMI (System Power Management Interface) |
Core Functional Areas
The PM660L is not just a voltage regulator; it is a multi-functional hub that manages several distinct subsystems of the mobile device:
1. Display and Backlight Management
One of the primary responsibilities of the PM660L is driving the LCD backlight. It contains a high-efficiency boost regulator capable of stepping up battery voltage to the 20V–35V range required by the LED string in a mobile display. It supports precise dimming via PWM (Pulse Width Modulation). PM 660 L ORIGINAL Mobile Phone IC
2. LED Flash and Torch Control
The IC manages the power supply for the rear camera flash. It provides the high-current burst required for a photo flash and the lower-current steady state used for “Torch” or “Flashlight” modes. PM 660 L ORIGINAL Mobile Phone IC
3. Power Distribution (LDOs and Buck)
It contains several Low Dropout (LDO) regulators that provide clean, stable voltage to sensitive components like the camera sensors and audio ICs. It also features Buck converters for high-efficiency voltage step-down to power various peripheral IOs. PM 660 L ORIGINAL Mobile Phone IC
4. System Interface
The PM660L communicates with the main CPU (Application Processor) via the SPMI bus. This allows the CPU to dynamically adjust voltages based on the phone’s current workload—a process known as Dynamic Voltage Scaling (DVS)—to save battery life.
Pinout and Connectivity Categories
The BGA layout of the PM660L is divided into “blocks” based on their power rails.
| Pin Group | Function Description |
| VPH_PWR | Main system power input from the battery or charger. |
| VREG_L | Output pins for various LDO regulators (e.g., L1, L2 for IOs). |
| VREG_S | Switching regulator outputs (Buck converters) for high current. |
| WLED | Backlight anode/cathode connections for the display. |
| FLASH | Pins dedicated to the Camera Flash LED positive and negative. |
| GND | Ground pads for thermal dissipation and electrical return. |
Common Compatible Devices
You will most frequently encounter the PM660L in the following popular models:
-
Xiaomi: Redmi Note 5 Pro, Redmi Note 6 Pro, Redmi Note 7, Mi Max 3.
-
Nokia: Nokia 7 Plus, Nokia 6.1.
-
Vivo/Oppo: Various V-series and R-series models using the SD660 platform.
Maintenance Note
When repairing a device with a “No Display Light” or “Half Backlight” issue, the PM660L is often the first component technicians check. Because it handles high-voltage boost for the screen, it is susceptible to damage if the display cable is unplugged while the battery is still connected.
