PM 670A-000-01 Mobile Phone IC
Enhance Your Mobile Device Performance

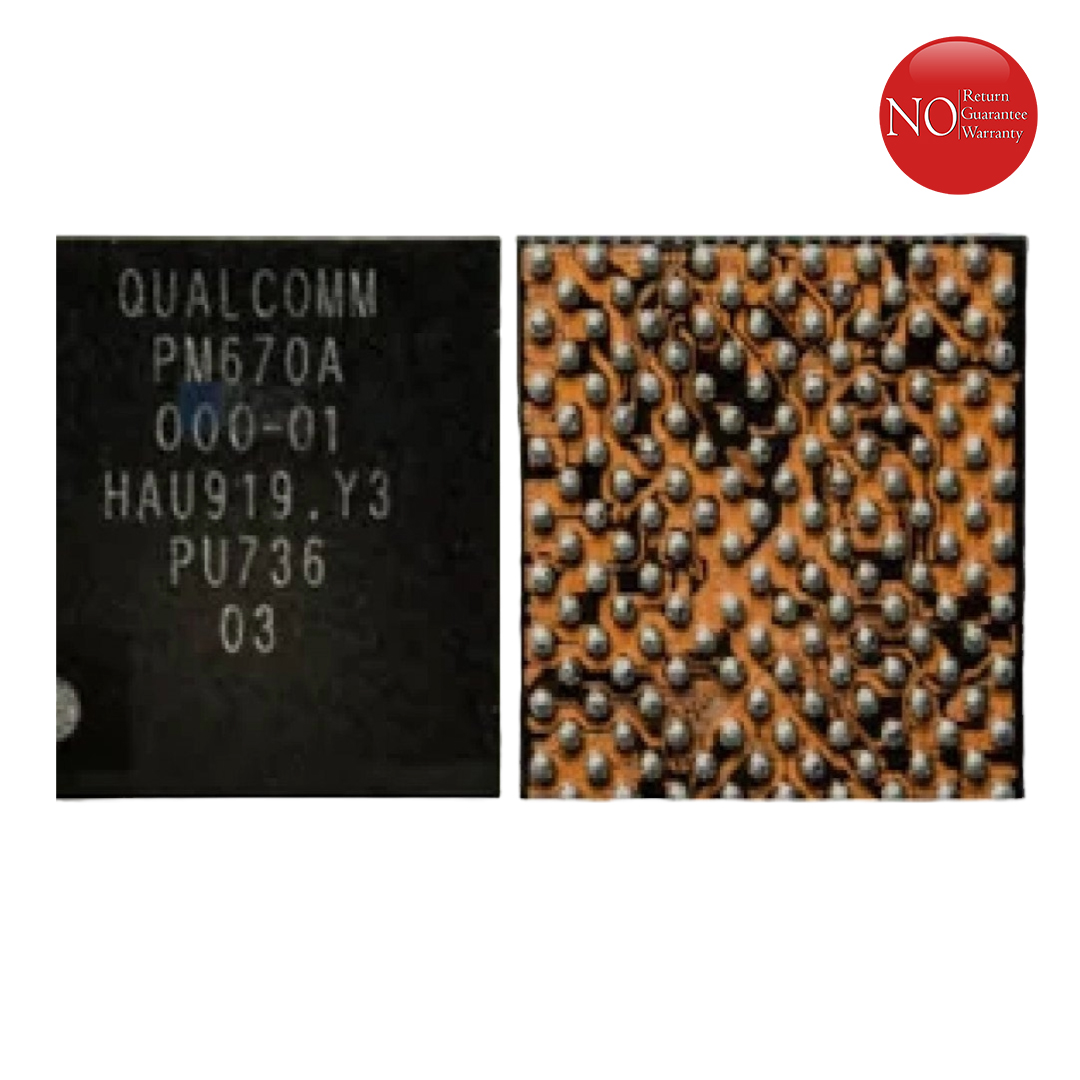

The PM 670A-000-01 Mobile Phone IC is meticulously designed to optimize the efficiency and performance of mobile devices. Its advanced architecture ensures seamless integration, providing a stable and reliable power management solution for a wide range of smartphone applications. PM 670A-000-01 Mobile Phone IC
Exceptional Efficiency for Modern Needs
This innovative IC offers excellent power management capabilities, ensuring that your device operates smoothly while conserving energy. Built with cutting-edge technology, the PM 670A-000-01 brings reliability and durability to your mobile phone experience, making it ideal for both personal and professional use. PM 670A-000-01 Mobile Phone IC
Compact Design, Maximum Compatibility
The PM 670A-000-01 Mobile Phone IC is engineered to fit effortlessly into compact device architectures. Its high compatibility across various smartphone models adds significant value, providing manufacturers with a versatile solution for modern mobile technology. PM 670A-000-01 Mobile Phone IC
The PM670A-000-01 is a high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is a cornerstone component in many mid-to-high-range smartphones, specifically those powered by the Snapdragon 670 and Snapdragon 710 series chipsets. Its primary role is to manage the complex distribution of power across the device’s hardware, including the processor, camera modules, and display. PM 670A-000-01 Mobile Phone IC
Below are the detailed technical specifications and functional breakdowns for this IC. PM 670A-000-01 Mobile Phone IC
1. General Product Information
| Attribute | Specification Details |
| Model Number | PM670A-000-01 |
| Manufacturer | Qualcomm Technologies, Inc. |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Common Application | Smartphones, Tablets, IoT Gateways |
| Compatible SoCs | Snapdragon 670, 710, QCS605, QCS603 |
2. Core Functional Specifications
The PM670A is designed to work in tandem with the main PM670 and the secondary PM670L (companion PMICs). While the main PM670 handles primary system power, the PM670A often focuses on high-precision voltage regulation for specific peripherals. PM 670A-000-01 Mobile Phone IC
Power Conversion & Regulation
| Feature | Details |
| Buck Regulators | Multiple high-efficiency step-down converters for CPU/GPU cores. |
| LDO Regulators | Low-Dropout regulators for noise-sensitive components (Audio, Sensors). |
| Output Voltage Range | Typically 0.5V to 1.8V (Programmable via I2C/SPMI). |
| Current Handling | Optimized for high-current bursts required by modern imaging sensors. |
System Management
| Feature | Functionality |
| Interface | SPMI (System Power Management Interface) for communication with the SoC. |
| Thermal Protection | Integrated thermal sensors to trigger emergency shutdown or throttling. |
| Sequencing | Automated power-up/power-down sequencing to prevent component damage. |
| Clock Management | Distributes 38.4MHz sleep and system clocks to various subsystems. |
3. Physical & Environmental Characteristics
| Parameter | Value / Range |
| Operating Temperature | $-25°C$ to $+85°C$ (Industrial Grade) |
| Package Size | Compact BGA footprint (approx. 5mm x 5mm) |
| Weight | ~0.1g (approximate per unit) |
| Manufacturing Process | 10nm/14nm node technology compatibility |
4. Key Device Compatibility
The PM670A-000-01 is frequently found in “Young” or “Lite” versions of flagship devices and upper-midrange models from 2018–2021.
-
Oppo: R17 Pro, Find X series (select regions).
-
Xiaomi: Mi 8 SE, Mi CC9 Lite.
-
Vivo: X23, X27, NEX series.
-
Samsung: Galaxy A-series (international variants with Snapdragon SoCs).
5. Maintenance & Repair Insights
Note: Because this is a BGA-packaged IC, replacement requires professional-grade micro-soldering equipment, including a hot air station, high-quality flux, and specialized BGA stencils.
-
Solder Type: Typically requires lead-free ($SAC305$) solder balls for reballing.
-
Sensitivity: This IC is highly sensitive to Electrostatic Discharge (ESD). Ensure an anti-static workspace.
-
Common Failure Symptoms: 1. Device stuck in “Boot Loop.” 2. Partial functionality (e.g., camera or Wi-Fi failing due to lack of power). 3. Device drawing high current (Short circuit) during a DC power supply test.
Comparison: PM670 vs PM670A vs PM670L
In a typical Snapdragon 710 architecture, power management is split to distribute heat and improve efficiency:
| IC Model | Primary Responsibility |
| PM670 | Main system power, Charging logic, and Audio. |
| PM670A | Additional Buck/LDO rails for Modem and Camera. |
| PM670L | Display power (LCD/OLED), Flash LED, and Vibration motor. |
