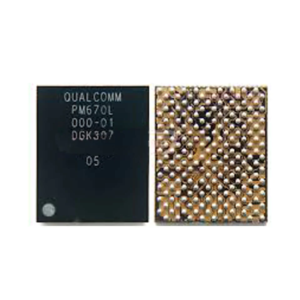

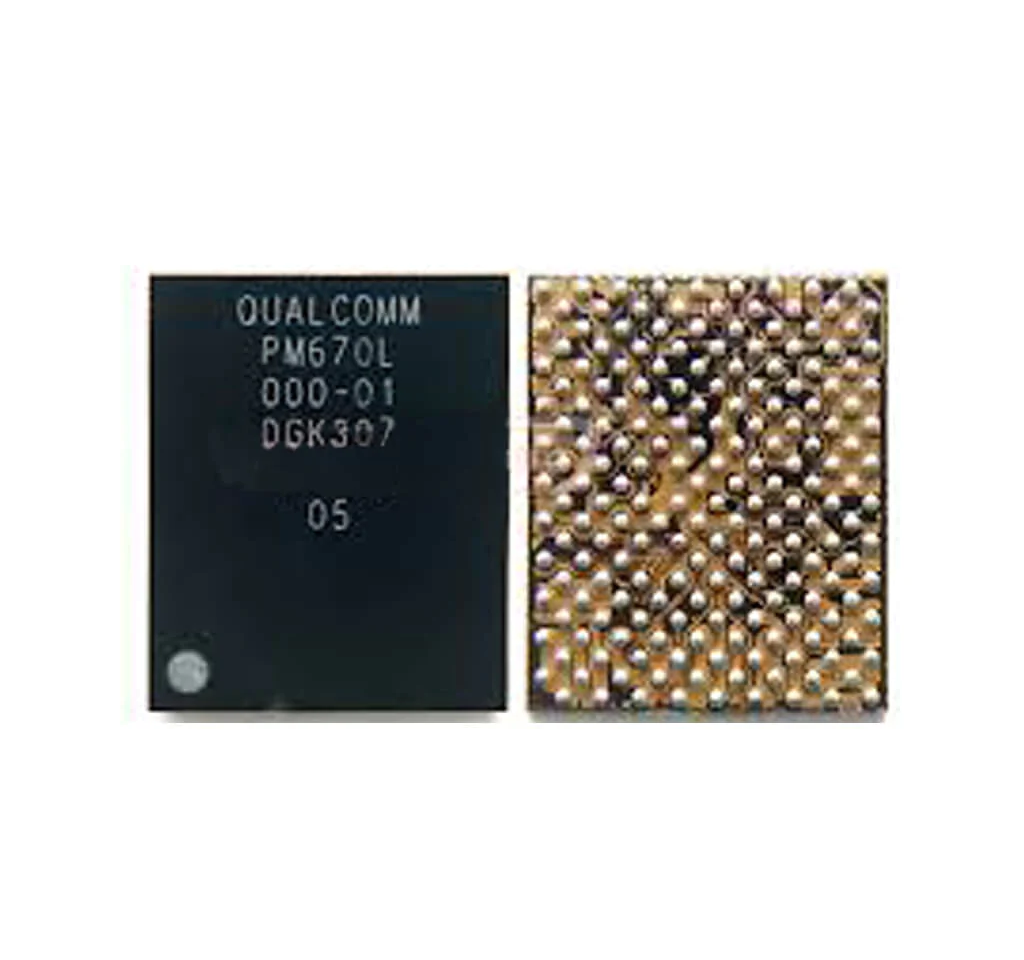

PM 670L-000-01 Mobile Phone IC

Advanced Power Management for Mobile Devices

The PM 670L-000-01 Mobile Phone IC is designed to deliver exceptional power management solutions for cutting-edge mobile devices. Engineered with precision, this IC optimizes energy efficiency, ensuring longer battery life and seamless device performance. It is an essential component for manufacturers seeking high reliability and reduced power consumption.PM 670L-000-01 Mobile Phone IC

Compact Design, Maximum Performance

Its compact design allows for effortless integration into even the slimmest of device configurations without compromising performance. Whether you’re building flagship smartphones or mid-range models, this IC adapts to various requirements while providing consistent output. PM 670L-000-01 Mobile Phone IC

Streamlined Compatibility and Easy Integration

The PM 670L-000-01 supports a wide range of mobile platforms, streamlining development and reducing time-to-market for manufacturers. With its innovative design and superior functionality, it ensures compatibility with modern technology standards, making it the preferred choice for industry professionals. PM 670L-000-01 Mobile Phone IC

The PM670L-000-01 is a high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It serves as a secondary or “companion” power management chip, typically paired with the primary PM670 IC. While the primary PMIC handles core processing power, the “L” variant (Low-power/Secondary) is often dedicated to specific subsystems like the display (LCD/OLED) bias, flash LED drivers, and additional LDO (Low Dropout) regulators for peripheral sensors. PM 670L-000-01 Mobile Phone IC

Below is the detailed technical breakdown and specifications for this component.

PM 670L-000-01 Mobile Phone IC

Technical Specifications Table

Feature	Specification Details
Manufacturer	Qualcomm
Model Number	PM670L-000-01
IC Category	Power Management IC (PMIC)
Package Type	BGA (Ball Grid Array)
Main Functions	Voltage Regulation, Battery Charging Support, Display Power, Flash Driver
Compatibility	Snapdragon 660, 670, 710, and 712 platforms
Input Voltage Range	Typically $3.4V$ to $4.4V$ (Standard Li-ion battery range)
Output Rails	Multiple Buck Converters and LDOs
Commonly Paired With	PM670 (Main PMIC), PMI632 (Charging IC)
Operating Temp	$-40°C$ to $+125°C$ (Standard Industrial/Mobile Grade)
Typical Devices	Redmi Note 7 Pro, Xiaomi Mi 8 SE, Vivo X23, Oppo R17

Functional Overview

The PM670L is designed to optimize power efficiency in mid-to-high-range smartphones. Its architecture is modular, allowing it to take over high-drain peripheral tasks to prevent the main CPU area from overheating. PM 670L-000-01 Mobile Phone IC

1. Voltage Regulation (Buck & LDO)

The IC contains several Switch-Mode Power Supplies (SMPS), also known as Buck Converters. These are used to step down the battery voltage to the low voltages required by digital logic (often between $0.6V$ and $1.2V$ ). Additionally, it houses numerous Low Dropout Regulators (LDOs) which provide “clean,” low-noise power to sensitive analog components like the camera sensors and audio hardware.

2. Display Power Management

One of the primary roles of the PM670L-000-01 is managing the power for the mobile display.

OLED/LCD Bias: It generates the positive and negative voltages required for the display panel to function.
WLED Driver: It often integrates the backlight driver for LCD screens, controlling the current sent to the display LEDs to manage brightness and dimming.

3. Peripheral Support

Flash LED Driver: The IC includes circuitry to drive the phone’s camera flash, managing the high current bursts needed for photography.
Haptics/Vibrator: In many configurations, the PM670L provides the driver for the vibration motor (ERM or LRA).

Pinout and Hardware Maintenance

For repair technicians, the PM670L-000-01 is a common point of failure in devices that suffer from:

No Display / No Backlight: If the display voltages are missing, this IC is usually the culprit.
Short Circuits: Because it handles high-current lines (Flash and Display), it is prone to internal shorts if the phone experiences water damage.
Boot Issues: While the main PM670 handles the CPU, if the PM670L fails to “handshake” during the power-on sequence, the phone may stay stuck at $0mA$ or a low-current draw on a DC Power Supply.

Reballing and Replacement

The IC uses a high-density BGA footprint. Replacement requires:

Stencil: A specific PM670L reballing stencil (usually $0.12mm$ thickness).
Solder Balls/Paste: Lead-free SAC305 or similar alloy is standard for modern mobile PCBs.
Heat Profile: Recommended air temperature for removal is $350°C - 380°C$ with moderate airflow, depending on the workstation.
