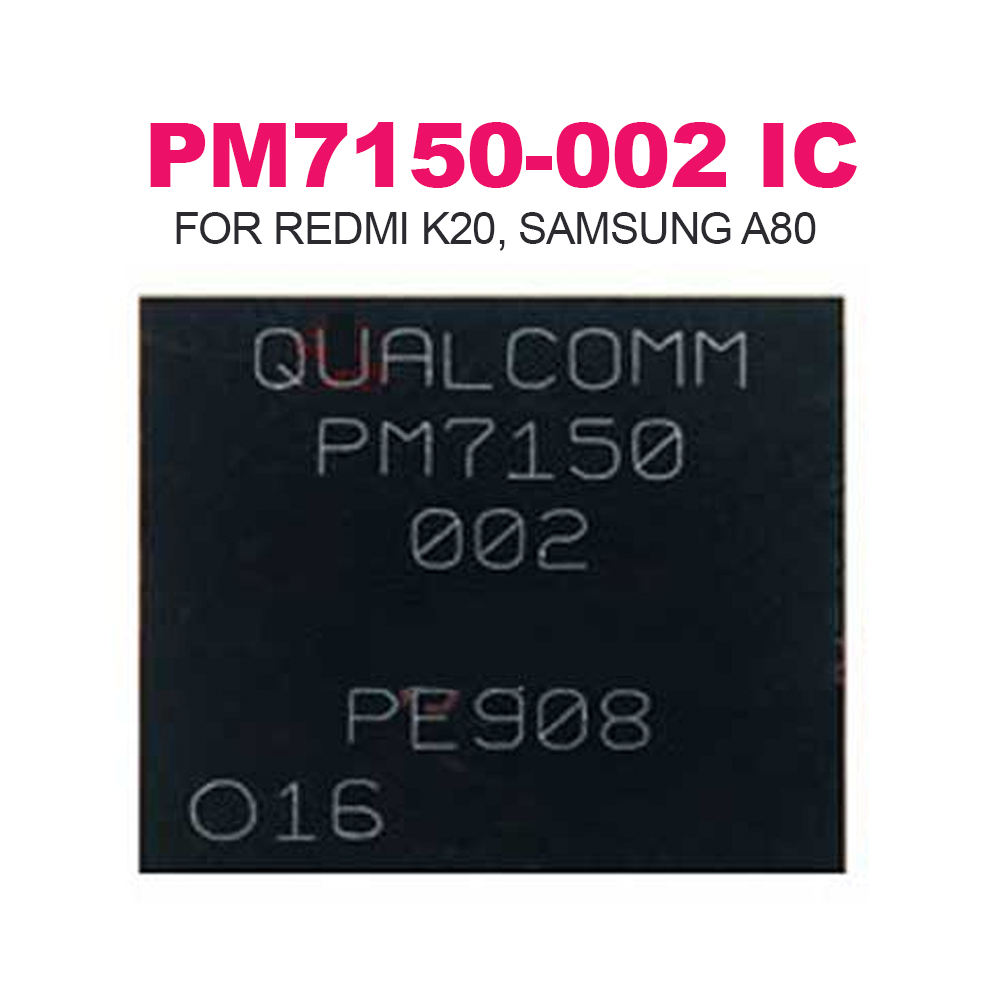

PM 7150-002 Mobile Phone IC
Efficient Power Management Solution
The PM 7150-002 Mobile Phone IC is an advanced power management chip designed to meet the needs of modern mobile devices. With its compact design and reliable performance, this IC ensures your device operates smoothly and efficiently, providing a seamless user experience. PM 7150-002 Mobile Phone IC
Reliable Performance for Modern Devices
This innovative IC is engineered for optimal energy regulation, extending battery life while minimizing power wastage. It’s compatible with a wide range of mobile devices, making it a versatile choice for manufacturers and tech enthusiasts alike. PM 7150-002 Mobile Phone IC
Compact Design and Superior Durability
Despite its small size, the PM 7150-002 delivers robust performance. Built with durability in mind, it ensures long-term functionality, even in demanding environments, making it a trusted component in the mobile phone industry. PM 7150-002 Mobile Phone IC
The PM7150-002 is a critical Power Management Integrated Circuit (PMIC) designed by Qualcomm. It serves as the primary power hub for modern mid-range and premium smartphones, particularly those utilizing Snapdragon chipsets. PM 7150-002 Mobile Phone IC
In a typical mobile architecture, the PM7150-002 works in tandem with a secondary PMIC (often the PM7150L) to manage the complex power requirements of the CPU, GPU, and peripheral systems. PM 7150-002 Mobile Phone IC
📱 Technical Specifications: PM7150-002
| Specification Category | Details & Parameters |
| Manufacturer | Qualcomm |
| Model Variant | PM7150-002 |
| Function | Primary Power Management IC (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Core Architecture | Multi-channel Buck/LDO Regulator |
| Input Voltage ($V_{BAT}$) | 3.2V to 4.8V (Typical Lithium-Ion Battery Range) |
| Interface | SPMI (System Power Management Interface) |
| Operating Temp | -30°C to +85°C |
| Primary Rails | VDD_Core, VDD_Modem, VDD_Memory, LDO Rails |
| Compatible Models | Redmi K20, Poco X3, Samsung A80, Vivo & Oppo mid-range |
🛠️ Functional Breakdown
The PM7150-002 is not just a voltage regulator; it is the “brain” of the device’s electrical system. Its responsibilities are divided into several key domains:
1. Power Distribution (Buck & LDO)
The IC converts the raw battery voltage into multiple stable outputs required by different components:
-
Buck Converters: Used for high-current, high-efficiency power delivery to the CPU cores and GPU.
-
LDO (Low Dropout) Regulators: Used for noise-sensitive components like the camera sensors, Wi-Fi modules, and audio chips where voltage stability is more critical than raw power.
2. Charging Management
While the PM7150L (companion IC) often handles the physical USB charging path, the PM7150-002 manages the battery communication. It monitors:
-
Fuel Gauging: Calculating the exact percentage of the battery remaining.
-
Thermal Monitoring: Utilizing thermistors to ensure the phone doesn’t overheat during fast charging.
3. System Boot Sequencing
When you press the power button, the PM7150-002 executes a precise “Power-On Sequence.” It wakes up the system rails in a specific order (e.g., $V_{CORE}$ first, then $V_{MEM}$) to prevent internal short circuits or data corruption within the processor.
🔧 Common Failure Symptoms & Repair
In the repair industry, the PM7150-002 is a frequent candidate for replacement. If this IC fails, the phone will typically exhibit one of the following “Dead” states:
-
No Power / Dead Boot: The device shows 0.0A or a very low, stuck current (e.g., 0.06A) on a DC Power Supply.
-
Auto-Restart Loop: The device attempts to boot but collapses when the high-power CPU rails fail to stabilize.
-
Short Circuit: Often caused by water damage, leading to a “Full Short” on the $V_{PH\_PWR}$ or $V_{BAT}$ line.
Note for Technicians: When replacing this IC, it is crucial to use a high-quality BGA stencil. Since the PM7150-002 is a “Lead-Free” component from the factory, professional rework stations must be set to approximately 340°C – 360°C for safe removal without damaging the PCB pads.
🔍 Comparison: PM7150 vs. PM7150L
Mobile motherboards often use two PMICs to distribute heat and manage more power rails.
| Feature | PM7150 (Primary) | PM7150L (Secondary) |
| Role | Logic & System Power | Charging & Peripheral Power |
| Key Output | CPU/GPU Core Voltages | Flash LED, Display Bias, Vibration |
| Location | Near the Main Processor | Near the Charging Port / Battery |
