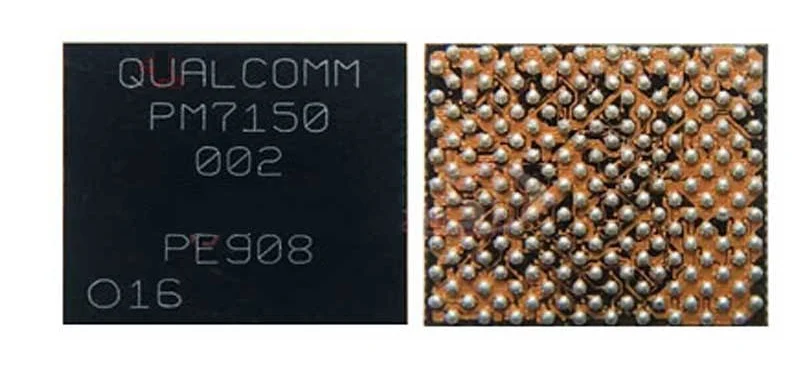

PM 7150 Mobile Phone IC
Enhance Your Device’s Efficiency
The PM 7150 Mobile Phone IC sets a new benchmark in smartphone technology, delivering exceptional power management for modern devices. Designed for efficiency, this integrated circuit ensures optimal performance while conserving battery life. PM 7150 Mobile Phone IC
Compact Design with Maximum Functionality
Built with precision and advanced engineering, the PM 7150 is compact in size but rich in features. Its smart design ensures effective integration into various mobile phone models, supporting seamless operation and reliability. PM 7150 Mobile Phone IC
Future-Ready Power Management
Stay ahead in the tech game with the PM 7150 Mobile Phone IC, an innovative solution to meet the growing demands of mobile processors and applications. Experience stability, durability, and energy efficiency in one premium product. PM 7150 Mobile Phone IC
The PM7150 is a sophisticated Power Management Integrated Circuit (PMIC) designed by Qualcomm, primarily used in mid-to-high-end smartphones featuring the Snapdragon 700-series chipsets. It is a critical component that manages power distribution, battery charging, and the boot sequence of the device. PM 7150 Mobile Phone IC
In modern mobile architecture, the PM7150 often works in a “Master-Slave” configuration with a companion chip (like the PM7150L) to handle the complex voltage requirements of high-resolution displays, multi-core CPUs, and 5G modems. PM 7150 Mobile Phone IC
PM7150 Technical Specifications
The following table summarizes the core technical parameters of the PM7150 PMIC:
| Feature | Specification Details |
| Model Number | PM7150 (variants include 002, 102, 005) |
| Manufacturer | Qualcomm |
| Function | Primary Power Management IC (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Supported CPUs | Snapdragon 730, 730G, 710, 712, 675 |
| Input Voltage | ~3.7V to 4.4V (System Battery Voltage / VPH_PWR) |
| Output Rails | Multiple LDOs and Buck Regulators (SMPS) |
| Charging Support | Integrated Battery Charging Control (Quick Charge 4.0+) |
| Operating Temp | -25°C to +85°C |
| Key Protections | OVP (Over Voltage), OCP (Over Current), Thermal Shutdown |
Core Functions and Capabilities
The PM7150 is responsible for the “heartbeat” of the mobile device. Its operations can be broken down into three primary sectors:
1. Power Distribution (SMPS & LDOs)
The IC converts battery voltage into various lower voltages required by different hardware components. PM 7150 Mobile Phone IC
-
Buck Regulators (SMPS): These are high-efficiency converters used for power-hungry components like the CPU and GPU. PM 7150 Mobile Phone IC
-
LDOs (Low Drop-Out Regulators): These provide clean, noise-free power to sensitive components like the Camera CMOS sensors, Audio ICs, and SIM card slots. PM 7150 Mobile Phone IC
2. Charging Management
The PM7150 manages the VBUS (USB input) and regulates the current flowing into the battery. It communicates with the processor to negotiate fast-charging protocols, ensuring the battery doesn’t overheat during high-wattage charging sessions. PM 7150 Mobile Phone IC
3. System Boot Sequence
The PM7150 initiates the power-on sequence. When the power button is pressed, this IC releases the “Power On Reset” (POR) signal and begins activating power rails in a specific order (e.g., Memory first, then CPU) to ensure a stable boot-up. PM 7150 Mobile Phone IC
Common Faults and Symptoms
Because the PM7150 is the central hub for power, its failure often leads to a “Dead” device. Technicians typically look for the following symptoms when diagnosing a faulty PM7150:
-
No Power / Dead Boot: The phone shows 0.00A or a very low, stuck current on a DC Power Supply.
-
Auto-Restart / Boot Loop: The device fails to complete the power-on sequence because a specific voltage rail is missing.
-
Charging Issues: The phone detects the charger but the percentage does not increase (Fake Charging).
-
Overheating: The area near the PMIC becomes excessively hot immediately after connecting the battery.
Replacement Compatibility
While “PM7150” is the base model, technicians must match the suffix code (e.g., 002 vs. 102) in many cases, as different versions may have slightly different firmware or pin configurations tailored to specific smartphone brands like Xiaomi (Poco X2/X3, Redmi K20) or Samsung (A80). PM 7150 Mobile Phone IC
