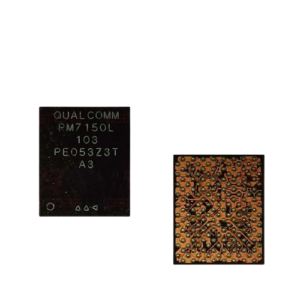

PM 7150L Mobile Phone IC
High-Quality PM 7150L Mobile Phone IC
The PM 7150L Mobile Phone IC is engineered to deliver exceptional performance, ensuring seamless functionality for your devices. This integrated circuit combines efficiency and reliability, making it a perfect solution for modern mobile technology requirements. PM 7150L Mobile Phone IC
Advanced Features for Optimal Performance
Designed with precision, the PM 7150L IC offers superior processing capabilities while maintaining energy efficiency. Its compact design ensures smooth integration into your smartphone or mobile system, enhancing overall device performance without compromising on space. PM 7150L Mobile Phone IC
Durability and Compatibility
Built to industry standards, the PM 7150L IC is compatible with various mobile applications, offering you a versatile and long-lasting solution. Trust its durability to adapt to both high-performing devices and everyday operational needs. PM 7150L Mobile Phone IC
The PM7150L is a Power Management Integrated Circuit (PMIC) developed by Qualcomm, specifically designed for mid-range and premium-tier smartphones. It is often found in devices powered by Snapdragon chipsets (such as the Snapdragon 730G, 765G, and 855/865 series) and works in tandem with the primary PM7150 IC to handle auxiliary power rails. PM 7150L Mobile Phone IC
Core Functionality
While the main PMIC handles the CPU and memory, the “L” variant (PM7150L) typically focuses on auxiliary functions, including:
-
LCD/OLED Backlight and Display Power: Driving the high-voltage requirements for the screen. PM 7150L Mobile Phone IC
-
Charging Management: Regulating battery charging cycles and Quick Charge (QC) protocols. PM 7150L Mobile Phone IC
-
Flash LED and RGB Drivers: Managing the power for camera flashes and notification lights. PM 7150L Mobile Phone IC
-
Haptics and Audio: Providing stable rails for vibration motors and audio amplifiers.
PM7150L Technical Specifications
The following table provides a comprehensive breakdown of the typical parameters and characteristics of the PM7150L IC used in mobile devices.
| Specification Category | Detailed Parameters | Typical Values / Description |
| Manufacturer | Brand | Qualcomm |
| Model Number | Identifier | PM7150L (Variants: -103, -102) |
| Architecture | Type | Synchronous Buck / LDO Multi-rail PMIC |
| Input Voltage | Range ($V_{in}$) | 3.0V to 4.8V (Mainly VPH_PWR) |
| Output Rails | Total Channels | ~15–20 regulated outputs |
| Buck Converters | High-Current Rails | Used for GPU and Display Power (0.6V – 1.35V) |
| LDO Regulators | Low-Noise Rails | Used for Sensors and RF (1.2V, 1.8V, 2.8V) |
| Display Support | Backlight Driver | Integrated WLED driver (Up to 30V-35V) |
| Charging Support | Charging Protocol | Qualcomm Quick Charge 3.0 / 4+ Support |
| Interface | Control Bus | SPMI (System Power Management Interface) |
| Package Type | Enclosure | WLCSP (Wafer Level Chip Scale Package) |
| Pin Count | BGA Balls | 144 balls (10×10 or 12×12 grid patterns) |
| Operating Temp | Thermal Range | -30°C to +85°C |
| Security | Features | Thermal Shutdown, Over-Voltage Protection (OVP) |
Common Mobile Applications
The PM7150L is a “workhorse” IC used across several popular models. If you are a technician or hardware engineer, you will most likely encounter this chip in the following devices:
-
Xiaomi: Poco X3, Redmi Note 9 Pro, Redmi K30 series.
-
Samsung: Galaxy A-series (A71, A80).
-
Motorola: Moto G-series and Edge variants.
-
Realme: Realme 6 Pro, X2.
Diagnostic & Repair Insights
The PM7150L is a frequent target for replacement in mobile repair shops due to its role in charging and display. Common failure symptoms include:
-
Charging Failure: The phone shows a “charging” icon but the percentage doesn’t increase (fake charging) or it doesn’t detect the USB cable at all.
-
No Backlight: The phone boots (vibrates or makes sound), but the screen remains completely dark even with a known-good LCD.
-
Dead Boot / Short Circuit: Because this IC is connected to the primary power rail ($V_{PH\_PWR}$), a short inside the PM7150L can prevent the entire device from powering on.
-
Heating Issues: Excessive heat near the CPU area when the charger is plugged in often points to a leaky capacitor or internal short in this IC.
Comparison: PM7150 vs. PM7150L
In a “Double Power IC” setup, these two chips work together but have distinct roles:
| Feature | PM7150 (Primary) | PM7150L (Secondary/Aux) |
| Primary Task | Powering the SoC (CPU/Modem) | Powering Display, Flash, and Charging |
| Boot Role | Master (Initiates boot sequence) | Slave (Activated by the Master) |
| Power Input | VBAT / VPH_PWR | VPH_PWR |
| Complexity | Higher (More Buck rails) | Medium (Focus on High Voltage/Drivers) |
Installation Requirements
Replacing this IC requires professional BGA Rework skills.
-
Stencil: Requires a dedicated PM7150L / PM8150 series stencil for reballing.
-
Heat Profile: Recommended air temperature is 330°C to 350°C with low airflow to avoid “flying” nearby small components like resistors or capacitors.
-
Orientation: Always check the “dot” marker (Pin 1) before removal, as installing it 180° reversed will cause a permanent short circuit.
