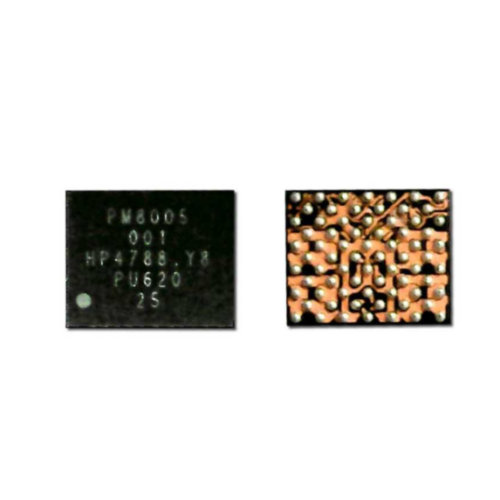

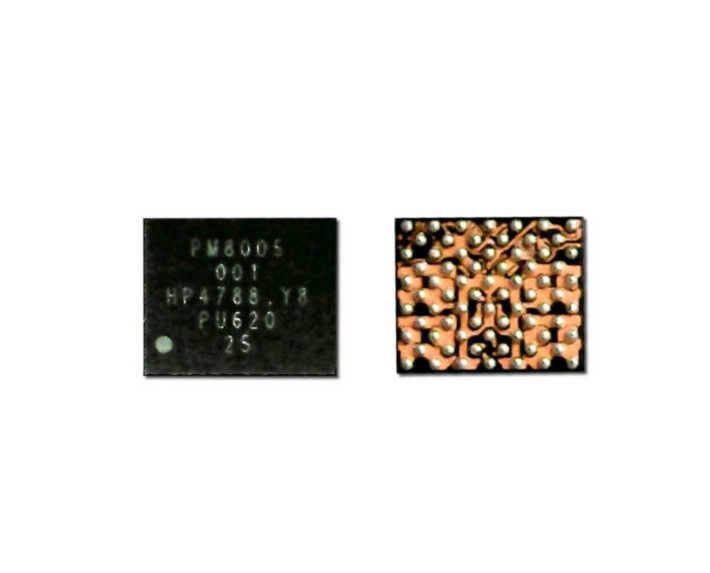

PM 8005 Mobile Phone IC
Optimize Your Mobile’s Functionality
The PM 8005 Mobile Phone IC is a high-performance, efficient integrated circuit designed to enhance your mobile device’s functionality. Whether you’re restoring an older handset or upgrading components, this IC brings the reliability and advanced technology needed to keep your device running smoothly. Featuring cutting-edge engineering and precise manufacturing, the PM 8005 is a must-have for technicians and hobbyists alike.
Reliable Power Management
One of the standout characteristics of the PM 8005 Mobile Phone IC is its superior power management capabilities. This IC is engineered to regulate voltage, efficiently distribute power, and ensure optimized energy consumption across various components of your mobile device. Say goodbye to power spikes and hello to sustainable and smooth performance. The robust design makes it suitable for demanding operational environments, ensuring consistent and reliable performance over time.
Seamless Integration & Compatibility
The PM 8005 Mobile Phone IC is not just high-performing but also highly compatible. Its seamless integration ensures that it fits perfectly with a wide range of mobile device models. With a meticulous design, this IC operates harmoniously with other internal components, reducing the risk of system failures and inconsistencies. Its compact size and efficient design mean no additional adjustments are required, offering a hassle-free installation process.
Why Choose the PM 8005 Mobile Phone IC?
In today’s market, finding a reliable IC that meets modern standards can be a challenge. With the PM 8005, you’re investing in an industry-best solution that prioritizes quality and longevity. Crafted with high-grade materials and advanced technology, this IC ensures long-term, high-efficiency performance. It’s perfect for professionals working in mobile repair or those looking to boost the capabilities of their devices.
Whether you’re solving power management issues or upgrading your mobile phone’s internal systems, the PM 8005 Mobile Phone IC is the ideal choice. With effortless compatibility, top-tier efficiency, and high reliability, it’s a smart investment for anyone needing a dependable and versatile integrated circuit solution.
The PM8005 is a critical Power Management Integrated Circuit (PMIC) developed by Qualcomm, primarily designed for high-end smartphones and mobile devices. In the complex ecosystem of a mobile motherboard, the PM8005 acts as a “secondary” or “auxiliary” power regulator, working in tandem with a primary PMIC (like the PM8998) to manage the energy demands of specific high-performance subsystems.
Core Function and Purpose
The primary role of the PM8005 is to convert the raw voltage from the Lithium-ion battery into precise, stable, and clean DC voltages required by various internal components. While a main PMIC handles general system power, the PM8005 is often dedicated to “heavy lifting” tasks, such as powering the CPU cores, GPU, or Baseband processors.
By offloading these specific power rails to a secondary IC, manufacturers can reduce the thermal load on the main processor area and improve overall electrical efficiency. This is vital for modern devices that require rapid bursts of power for gaming, 4K video recording, or 5G/LTE data processing.
Key Technical Specifications
The PM8005 is engineered to fit within the extremely tight physical constraints of a smartphone.
-
Manufacturer: Qualcomm
-
Package Type: WLPSP (Wafer Level Chip Scale Package)
-
Input Voltage Range: Typically supports 3.0V to 5.5V (compatible with standard Li-ion battery outputs).
-
Output Channels: Features multiple independent buck regulators and LDOs (Low Drop-Out regulators).
-
Current Capability: Can deliver high current (up to 3A or more per channel) to support power-hungry application processors.
-
Operating Temperature: Rated for -40°C to +125°C, ensuring stability even during heavy device usage where heat builds up. PM 8005 Mobile Phone IC
Application in Mobile Devices
You will most commonly find the PM8005 in flagship devices from the 2017–2019 era, specifically within the Samsung Galaxy S8, S8+, Note 8, and Note 9 series (often the Snapdragon variants). It is also used in other high-performance devices like the Xiaomi Mi 6. PM 8005 Mobile Phone IC
In these devices, the PM8005 is often referred to by technicians as the “Small Power IC” or “Baseband Power IC.” If this chip fails, the device may exhibit several “no-fix” symptoms:
-
No Power/Dead Boot: The phone refuses to turn on because a vital CPU rail isn’t receiving voltage. PM 8005 Mobile Phone IC
-
Short Circuit: A damaged PM8005 can cause a “full short” on the VCC_MAIN or battery line, leading to rapid battery drain or heating. PM 8005 Mobile Phone IC
-
Radio/Signal Issues: Since it often powers the baseband, a fault can lead to “No Service” or IMEI-related software errors. PM 8005 Mobile Phone IC
Repair and Installation
Because the PM8005 uses a BGA (Ball Grid Array) mounting style, it is not a “plug-and-play” part. Replacing it requires professional micro-soldering equipment, including a hot air rework station, high-quality flux, and often a reballing stencil to prep the tiny solder spheres on the underside of the chip. PM 8005 Mobile Phone IC
