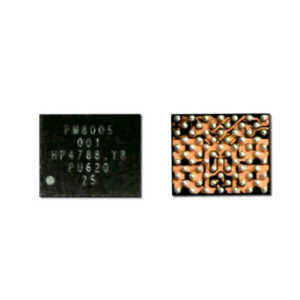

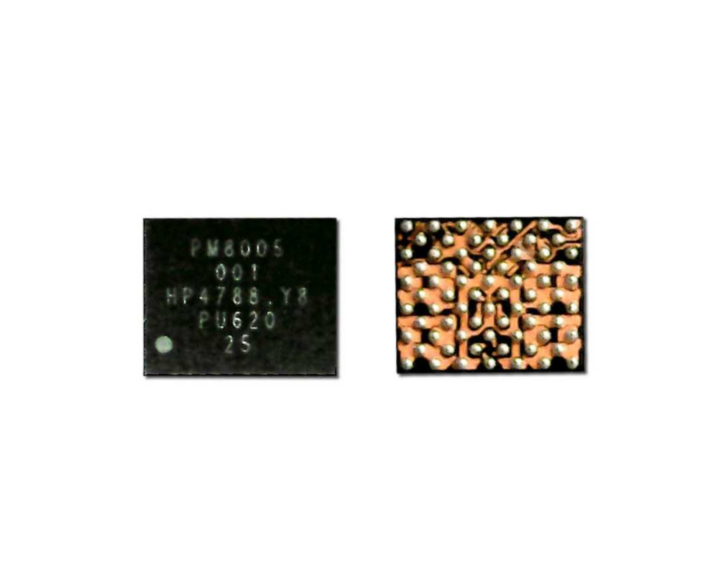

PM 8005 Original Mobile Phone IC
Efficient Power Management for Enhanced Performance
Discover the PM 8005 Original Mobile Phone IC, designed to deliver exceptional power management capabilities for mobile devices. This innovative IC module ensures your smartphone operates at optimal efficiency, prolonging battery life and maintaining stable performance during heavy usage. Whether you’re gaming, streaming, or multitasking, the PM 8005 IC adapts seamlessly to meet your demands, making it a key component in modern mobile technology. PM 8005 Original Mobile Phone IC
High-Quality Design and Reliability
The PM 8005 Original Mobile Phone IC combines advanced engineering with premium materials to offer unmatched reliability and durability. Its robust construction safeguards your phone’s circuitry, reducing the risks of overheating, short circuits, or voltage fluctuations. Designed to meet industry standards, this IC is compatible with a wide range of smartphone models, ensuring it meets the diverse needs of consumers. If you’re looking for a dependable solution to boost your device’s performance, this IC is the perfect match.
Why Choose PM 8005 IC?
Choosing the PM 8005 Original Mobile Phone IC means choosing quality, innovation, and efficiency. With a focus on power optimization and heat dissipation, this IC is a versatile and indispensable solution for mobile manufacturers and repair experts alike. Whether you’re upgrading your phone’s internal components or replacing a malfunctioning IC, the PM 8005 offers a reliable and cost-effective option that’s trusted by industry professionals.
If you’re searching for an original and high-performing mobile phone IC, the PM 8005 is your go-to choice for cutting-edge power management and dependable functionality. Give your smartphone the advantage it deserves with this state-of-the-art component.
The PM8005 is a specialized Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is a critical “auxiliary” or “secondary” power management chip found primarily in high-end mobile devices, most notably within the Samsung Galaxy flagship series (spanning from the S7 and S8 through the Note 10).
In modern smartphone architecture, power management is often too complex for a single chip. The PM8005 acts as a supporting unit to the main PMIC, handling specific voltage regulation tasks required by subsystems like the baseband processor, display, or advanced camera modules. PM 8005 Original Mobile Phone IC
Core Technical Specifications
The PM8005 is engineered to provide high-efficiency DC-to-DC conversion and voltage regulation in a compact form factor. PM 8005 Original Mobile Phone IC
-
Package Type: Typically a 72-pin WLPSP (Wafer Level Chip Scale Package), which is designed for the extremely tight space constraints of a smartphone PCB. PM 8005 Original Mobile Phone IC
-
Input Voltage Range: Supports a wide input range, generally between 3.0V and 5.5V, making it compatible with standard Lithium-ion battery outputs.
-
Output Channels: Features multiple programmable output channels. It can step down voltage to levels as low as 0.8V for sensitive logic cores and up to 3.3V for auxiliary components.
-
Current Capacity: Capable of delivering up to 3A per channel, ensuring it can power demanding processors or high-speed communication modules.
-
Switching Frequency: Operates at high frequencies (approx. 1MHz), allowing for the use of smaller external inductors and capacitors to save board space.
Key Functions and Responsibilities
The PM8005 serves several vital roles within a mobile device’s power distribution network:
-
Voltage Regulation: It converts the raw battery voltage into the precise, stable levels required by various hardware. This is essential for the Baseband IC, which manages cellular connectivity.
-
Thermal Management: The chip includes an integrated thermal shutdown feature. If the internal temperature exceeds safe limits (often up to $125^{\circ} \text{C}$), the IC will throttle or shut down to prevent permanent damage to the motherboard.
-
Power Sequencing: Modern smartphones require components to turn on in a specific order. The PM8005 manages this timing, ensuring that the processor, memory, and sensors receive power in the correct sequence to prevent system crashes.
-
Protection Circuitry: It safeguards against electrical faults, including over-voltage (OVP) and over-current (OCP) scenarios, acting as a “breaker” for the sensitive silicon it powers.
Common Use Cases and Compatibility
Because it is a “secondary” power chip, it is often referred to by technicians as the “Small Power IC.” It is frequently found in:
-
Samsung Galaxy Series: S7, S8, S8+, S9, and S9+.
-
Samsung Note Series: Note 8, Note 9, and Note 10 (including 5G variants).
-
Other high-end Android devices utilizing Qualcomm Snapdragon chipsets from that era.
Repair Context
In the mobile repair industry, a faulty PM8005 is a common culprit for “Dead” or “No Power” devices, as well as issues with network connectivity (Baseband failure). Replacing this chip requires advanced micro-soldering skills, including BGA (Ball Grid Array) reballing, due to its tiny 72-pin footprint.
