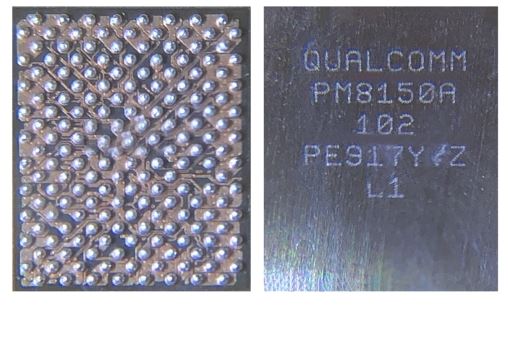

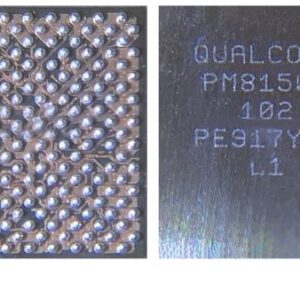

PM 8150A Mobile Phone IC
High-Performance Mobile Phone IC
The PM 8150A Mobile Phone IC is a top-tier integrated circuit designed to power today’s smartphones with reliability and precision. Engineered for seamless performance, this IC ensures consistent functionality for a superior mobile experience. PM 8150A Mobile Phone IC
Enhanced Efficiency and Compatibility
PM 8150A stands out due to its optimized power management capabilities, providing stable voltage regulation and improved energy efficiency. It is built to support various smartphone models, ensuring broad compatibility and reliable operation. PM 8150A Mobile Phone IC
Quality You Can Trust
Crafted with precision and attention to detail, the PM 8150A IC is backed by rigorous quality checks, making it a dependable choice for manufacturers and repair professionals alike. Elevate your smartphone’s functionality with this advanced integrated circuit solution. PM 8150A Mobile Phone IC
The PM8150A is a critical Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is a flagship-tier component designed to work alongside the Snapdragon 855 and 855 Plus chipsets. Unlike standard power ICs, the PM8150A belongs to a “multi-PMIC” architecture where it works in tandem with the PM8150 and PM8150L to distribute power efficiently across high-performance devices. PM 8150A Mobile Phone IC
Below are the comprehensive specifications and technical details for the PM8150A.
PM8150A Technical Specifications Table
| Feature Category | Specification Detail |
| Model Number | PM8150A (Variant: 102) |
| Manufacturer | Qualcomm Technologies, Inc. |
| Compatible Chipsets | Snapdragon 855 (SM8150), Snapdragon 855+ |
| Function | Secondary/Auxiliary PMIC (Display & Core Power) |
| Package Type | 161-Pin FOWPSP (Fan-Out Wafer-Level Pico-Scale Package) |
| Package Size | $4.49 \times 5.07 \times 0.55\text{ mm}$ |
| Input Voltage Range | $3.6\text{V}$ to $4.8\text{V}$ (System-level VPH_PWR) |
| Total Regulators | 28 Programmable Voltage Regulators (Series Total) |
| Buck Converters | High-Frequency (HF) and Flex-Phase SMPS |
| LDO Regulators | 18 Linear Regulators (Low-noise for Sensors/Clocks) |
| Control Interface | Dual-line SPMI (System Power Management Interface) |
| Operating Frequency | $38.4\text{ MHz}$ External Crystal Oscillator support |
| Safety Layers | OVP, OTP (Over-Temperature), SCP (Short Circuit) |
| Thermal Limit | Shutdown at $125^\circ\text{C}$ die temperature |
Core Functional Overview
The PM8150A is specialized for high-end tasks that the main PMIC cannot handle alone due to heat and current density requirements. Its architecture is divided into three main pillars:
1. Display and AMOLED Power
One of the primary roles of the “A” variant (PM8150A) in many flagship designs is providing the specific power rails for AMOLED displays. Modern high-refresh-rate screens require extremely stable, low-noise voltage to prevent flickering and touch-latency issues. The PM8150A manages the positive and negative bias voltages required for high-resolution panels. PM 8150A Mobile Phone IC
2. Advanced Clocking and Housekeeping
The IC integrates an on-chip 38.4 MHz Crystal Oscillator (XO) controller. This is crucial because it eliminates the need for expensive external timing modules. It provides:
-
RF_CLK: For cellular and Wi-Fi synchronization.
-
Sleep Clock: A $32.764\text{ kHz}$ signal generated by dividing the master XO frequency, keeping the device “aware” even in deep sleep mode. PM 8150A Mobile Phone IC
3. Power Distribution (SMPS & LDOs)
-
Buck Converters (SMPS): These converters are used for the CPU’s auxiliary cores and the GPU. They operate at high frequencies (up to $2.5\text{ MHz}$) to allow for smaller external inductors, saving space on crowded flagship motherboards.
-
Low-Dropout Regulators (LDOs): The 18 LDOs inside the PM8150A are designed for “pseudo-capless” operation, meaning they can maintain stability even with minimal external capacitors, further reducing the component count.
Comparison with Variants
In the Snapdragon 855 power grid, the workload is split to prevent a single chip from overheating:
-
PM8150: Main PMIC for Modem, CPU cores, and basic system rails.
-
PM8150A: Focuses on Display, Camera, and Audio subsystems.
-
PM8150L: Often handles the Flash LED, Backlight, and Charging logic.
-
PM8150B: Dedicated specifically to battery charging and fuel gauge functions.
Common Troubleshooting and Repair Symptoms
Mobile technicians often encounter the PM8150A when dealing with flagship “Dead” or “Half-Dead” phones. Typical symptoms of a failing PM8150A include:
-
Display Issues: No graphics or no light on AMOLED screens despite the phone being “on.”
-
Audio/Camera Failure: If the specific LDOs powering the audio codec or camera sensors fail, these apps will crash immediately.
-
Boot Loop: If the SPMI communication between the PM8150A and the CPU is broken, the phone will restart as it fails the “Hardware Power-On” handshake.
-
Short Circuit: Due to its proximity to display connectors, liquid damage often shorts the PM8150A pins, leading to a total device short on the VPH_PWR rail.
